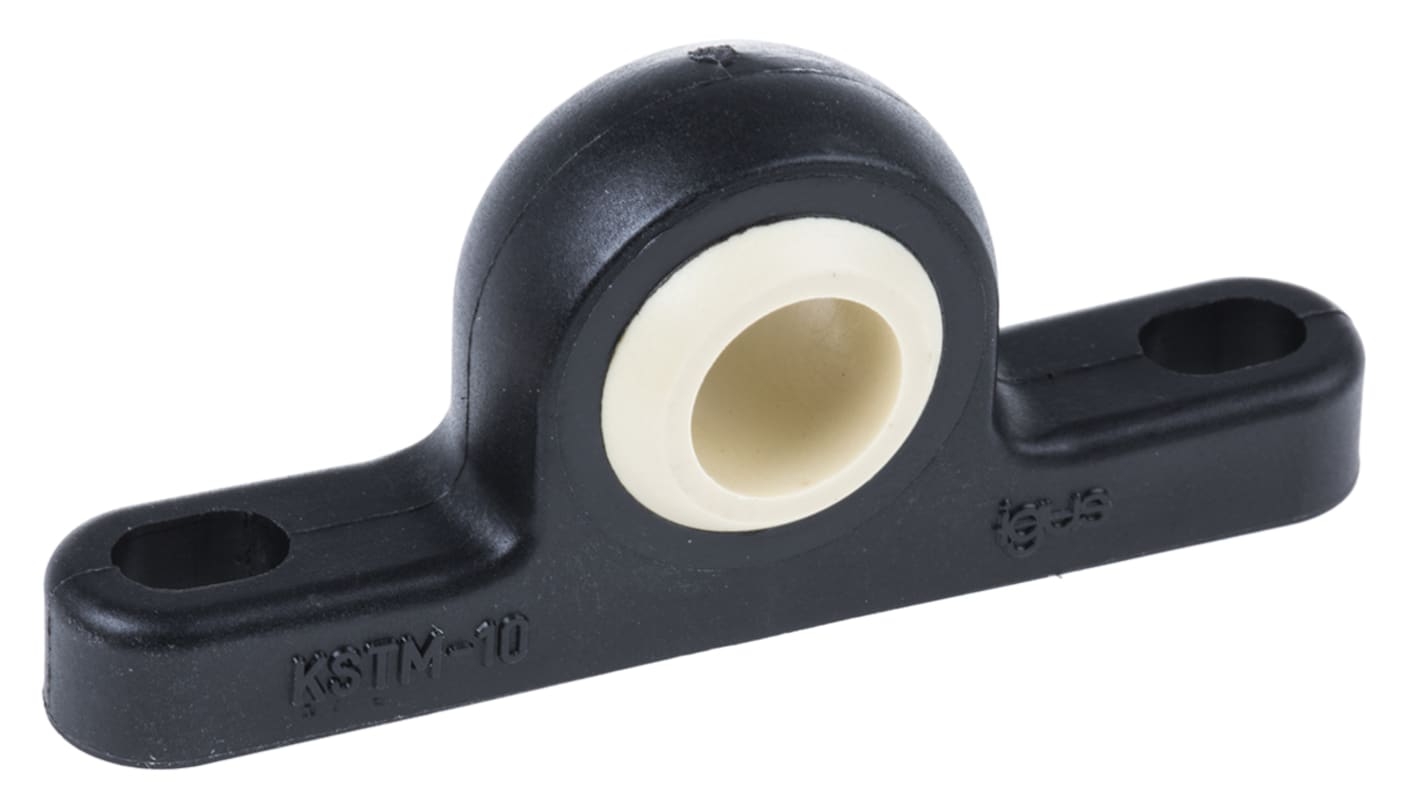

Igus KSTM-10 Pillow Block Bearing -, 10 mm ID

This pillow block bearing provides mounted shaft support for motion systems. It combines a low-mass bearing element made from Igumid G with a compact housing profile to offer smooth rotation for 10mm shafts where a small footprint and straightforward fixing are required.

• Static load capacity 1500N for predictable support under radial loads
• Two-bolt fixing for simple secure attachment
• Mount hole centre-to-centre 46mm for accurate alignment
• Mount hole size 5.5 x 8mm to accept common fasteners
• Centre height 14mm to match standard shaft offset requirements
• Length 62mm and height 26mm for constrained-space assemblies

• Suitable for lightweight conveyor and guide systems in automation
• Ideal for small actuator and gearbox mounting in mechanical builds
• Used for rotating shafts in electronic test rigs and fixtures
• Can be used for bearing support in CNC accessory modules

It is sized for a 10mm internal bore to accommodate 10mm shafts directly.

The sliding element is formed from Igumid G, a polymer that reduces assembly mass and provides low-friction operation in applications sensitive to weight.

The fixed bolt centres of 46mm ensure repeatable positioning when mounting multiple units or replacing parts.

The oblong mount holes measure 5.5 x 8 mm, allowing clearance for common M5 or M6 fasteners depending on head type and assembly requirements.

IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing.
