- RS 제품 번호:
- 213-1952
- 제조사 부품 번호:
- FRB 4/90
- 제조업체:
- SKF
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SKF | |
| Inside Diameter | 82mm | |
| Product Type | Locating Ring | |
| Centre Height | 90mm | |
| Mount Hole Size | 12 mm | |
| Length | 205mm | |
| Depth | 4mm | |
| Standards/Approvals | No | |
| Series | FRB | |
| Height | 114mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SKF | ||
Inside Diameter 82mm | ||
Product Type Locating Ring | ||
Centre Height 90mm | ||
Mount Hole Size 12 mm | ||
Length 205mm | ||
Depth 4mm | ||
Standards/Approvals No | ||
Series FRB | ||
Height 114mm | ||
- COO (Country of Origin):
- CN

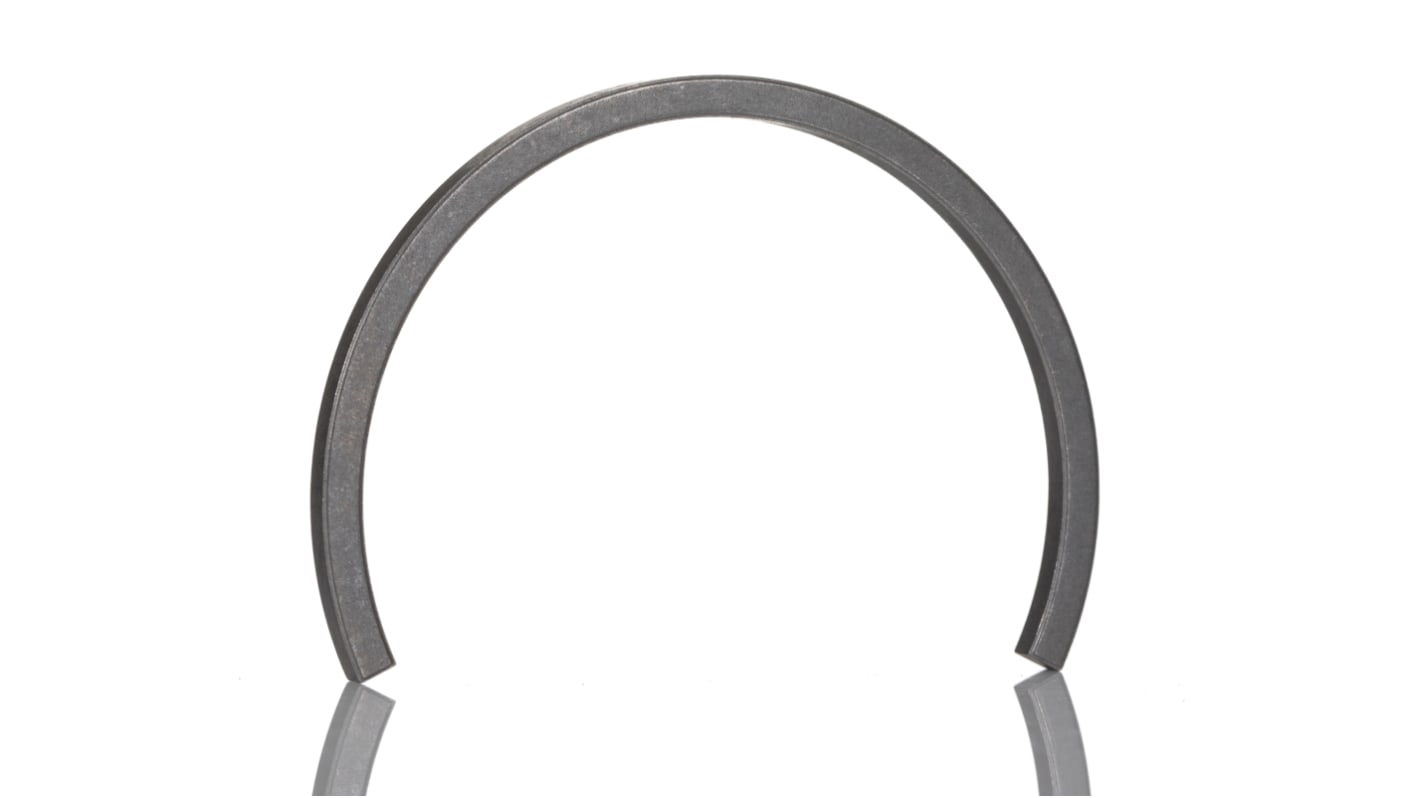

SKF Locating Ring, 90mm Outside Diameter, 82mm Inside Diameter - FRB 4/90
This product is a locating (stabilising) ring designed for secured axial positioning of bearings within housing. It features an outside diameter of 90mm and an inside diameter of 82 mm, ensuring compatibility with standard bearing dimensions. Additionally, it has a width of 4 mm, providing a precise fit for various housing installations, allowing for versatile applications within bearing assemblies.
Features & Benefits
• Compliant with various housing series for versatility
• Lightweight at 0.0186kg for ease of handling
Applications
• Used with SNL series bearing housings
• Utilised in 30, 31, 32 series applications
• Appropriate for SAF and SAW series requirements
• Suitable for stabilising bearings in mechanical setups
What is the weight of this locating ring?
The product net weight is 0.0186 kg.
Can this locating ring be used with multiple housing series?
Yes, it's compatible with various SKF housing series.
