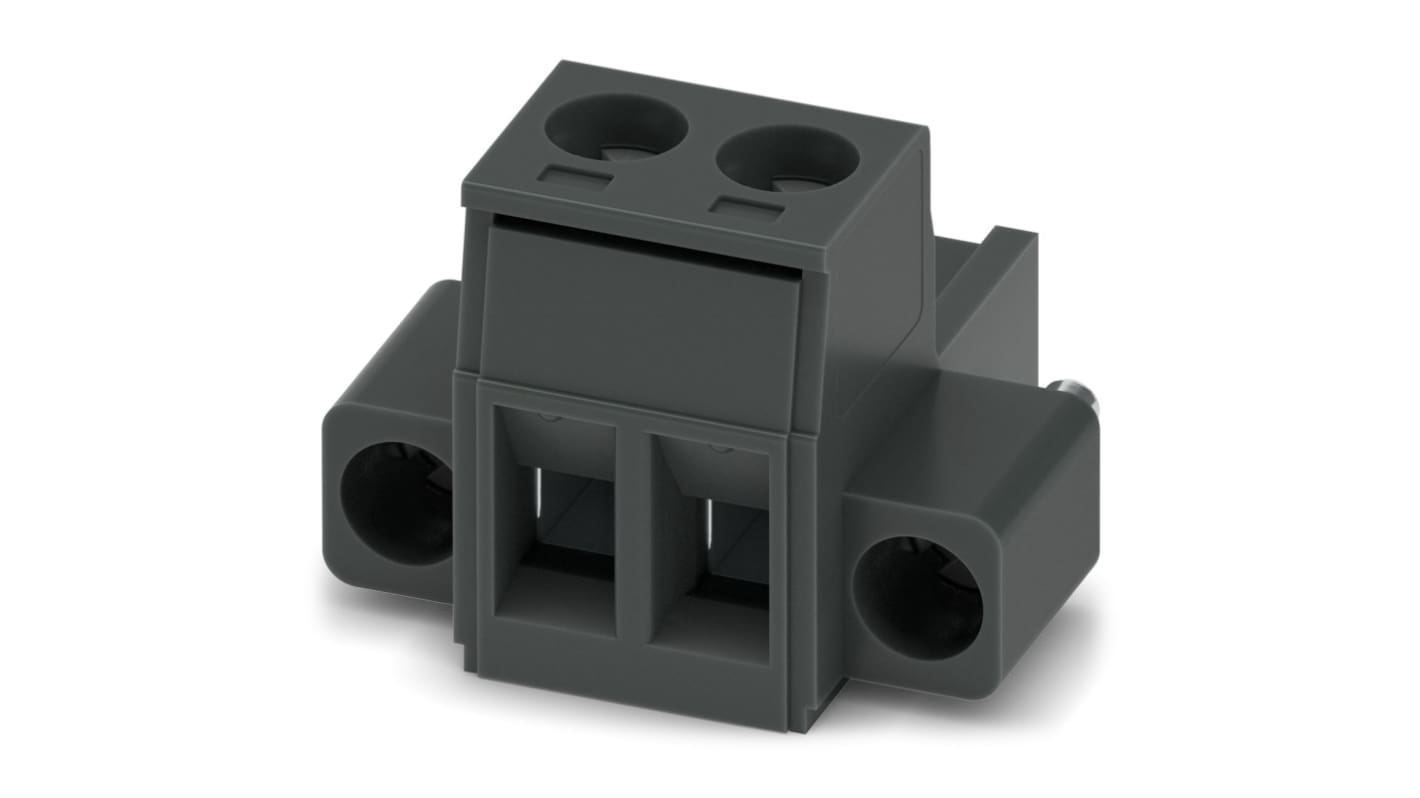

Phoenix Contact MSTB 2.5/2-STF-5.08 BK Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 1961986
- RS 제품 번호:
- 804-5341
- 제조사 부품 번호:
- 1961986
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 pack of 50 units)*
₩125,772.00
일시적 품절
- 2026년 3월 20일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 50 - 1200 | ₩2,515.44 | ₩125,753.20 |
| 1250 - 3700 | ₩2,451.52 | ₩122,613.60 |
| 3750 - 9950 | ₩2,391.36 | ₩119,549.20 |
| 10000 - 19950 | ₩2,333.08 | ₩116,635.20 |
| 20000 + | ₩2,274.80 | ₩113,740.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 804-5341
- 제조사 부품 번호:
- 1961986
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Straight | |
| Colour | Black | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 320 V | |
| Series | MSTB 2.5/2-STF-5.08 BK | |
| Standards/Approvals | No | |
| Length | 18.3mm | |
| Depth | 15mm | |
| Width | 20.17 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 2 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Straight | ||
Colour Black | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 320 V | ||
Series MSTB 2.5/2-STF-5.08 BK | ||
Standards/Approvals No | ||
Length 18.3mm | ||
Depth 15mm | ||
Width 20.17 mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks
A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).
CLASSIC COMBICON MSTB - Features and Benefits:
• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life
