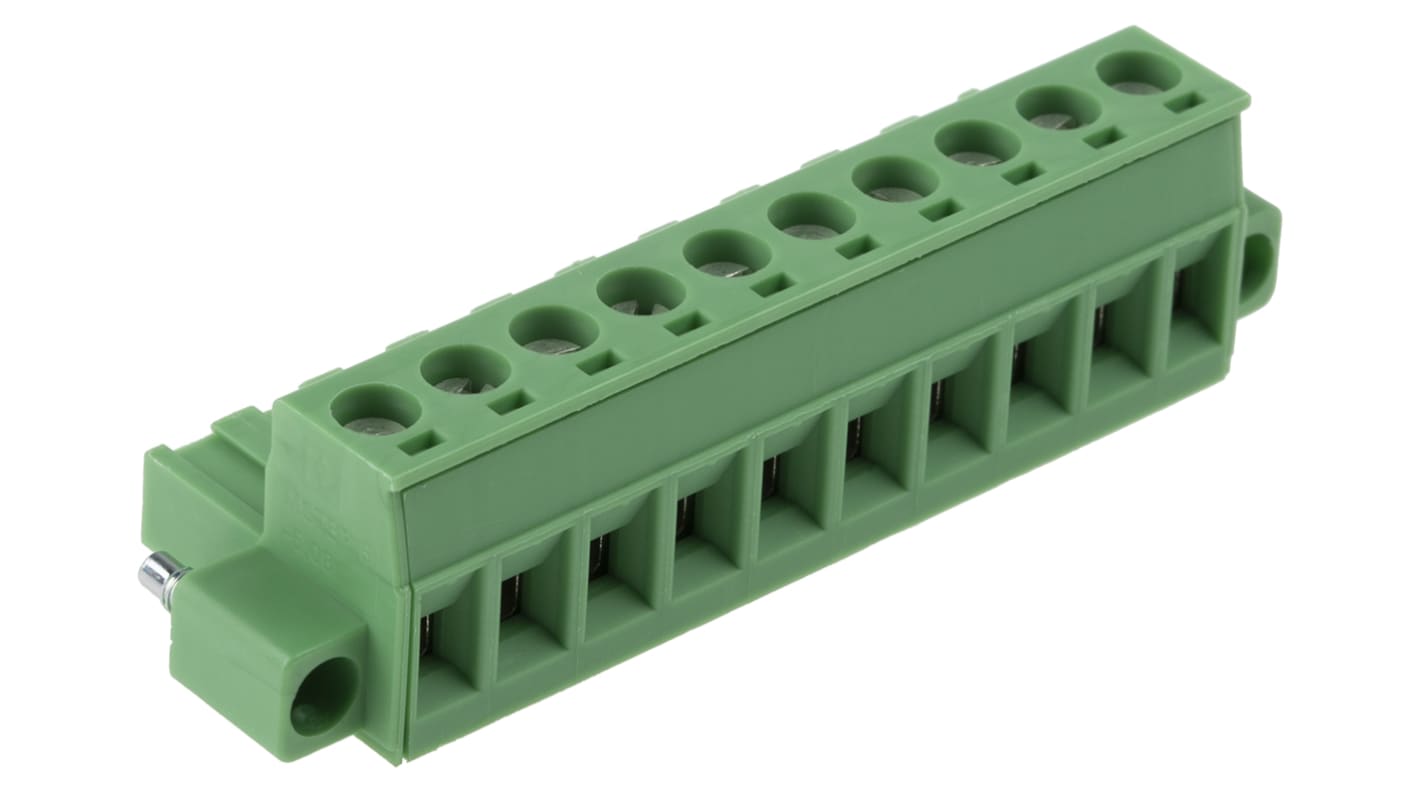

Phoenix Contact, 5.08mm Pitch, MSTB 2.5/10-STF-5.08, 10 Way, , Pluggable Terminal Block, Plug, Plug-In, Screw

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩15,303.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 65 개 단위 배송 준비 완료
  • 추가로 2025년 12월 25일 부터 100 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 12₩15,303.20
13 - 24₩14,964.80
25 +₩14,645.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
802-6404
제조사 부품 번호:
1778069
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Pluggable Terminal Block Type

Plug

Number of Contacts

10

Pitch

5.08mm

Series

MSTB 2.5/10-STF-5.08

Number of Rows

1

Body Orientation

Straight

Mounting Type

Plug-In

Termination Method

Screw

Current Rating

12A

Voltage Rating

320 V

Colour

Green

Wire Size

24 → 12 AWG

Material

Polyamide

Contact Material

Copper Alloy

Contact Plating

Tin

COO (Country of Origin):
DE

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm Terminal Block Plug Connectors


Classic COMBICON MSTB 2,5 5.08 mm pitch plug-in cable mount terminal block connectors. The terminals feature a 0.2 mm2 to 2.5 mm2 screw connection that forms a standard plug-in system for 320 V (III/2).

Features and Benefits


• Screw connection
• Well-known connection principle allows worldwide use
• Low temperature rise, thanks to maximum contact force

Phoenix Contact MSTB 2.5/10-STF-5.08 Series Pluggable Terminal Block, 5.08mm Pitch, Screw Termination Method - 1778069


This pluggable terminal block facilitates efficient electrical connections in various automation and electrical applications. Its sturdy design ensures secure connections while providing ease of use. With a versatile screw termination method, it assures performance in challenging environments.

Features & Benefits


• Green colour enhances visibility during installation and maintenance
• High current capacity supports various applications
• 5.08mm pitch allows for compact assembly in restricted spaces
• Screw locking mechanism ensures secure connections under load
• Accommodates up to two conductors for efficient wiring options
• WEEE and RoHS compliant, promoting environmentally responsible practices

Applications


• Utilised with PCB designs in automation systems
• Suitable for electrical distribution in industrial equipment
• Ideal for mechanical requiring robust connectivity
• Employed in control panels for dependable performance
• Commonly found in machinery interfacing and power management systems

What is the maximum conductor size that can be connected?


The terminal block supports conductor sizes from 0.2 to 2.5mm² for both rigid and flexible wires.

How is the connection secured during operation?


The screw locking mechanism ensures that connections remain secure, even under load.

Can multiple conductors be connected simultaneously?


Yes, it allows for the connection of two conductors with the same cross-section for enhanced wiring flexibility.

What is the recommended torque for tightening connections?


A tightening torque of 0.3Nm is recommended to achieve optimal securement.

Is it suitable for use in high-temperature environments?


The terminal block operates effectively within an ambient temperature range of -40 to 100°C.
