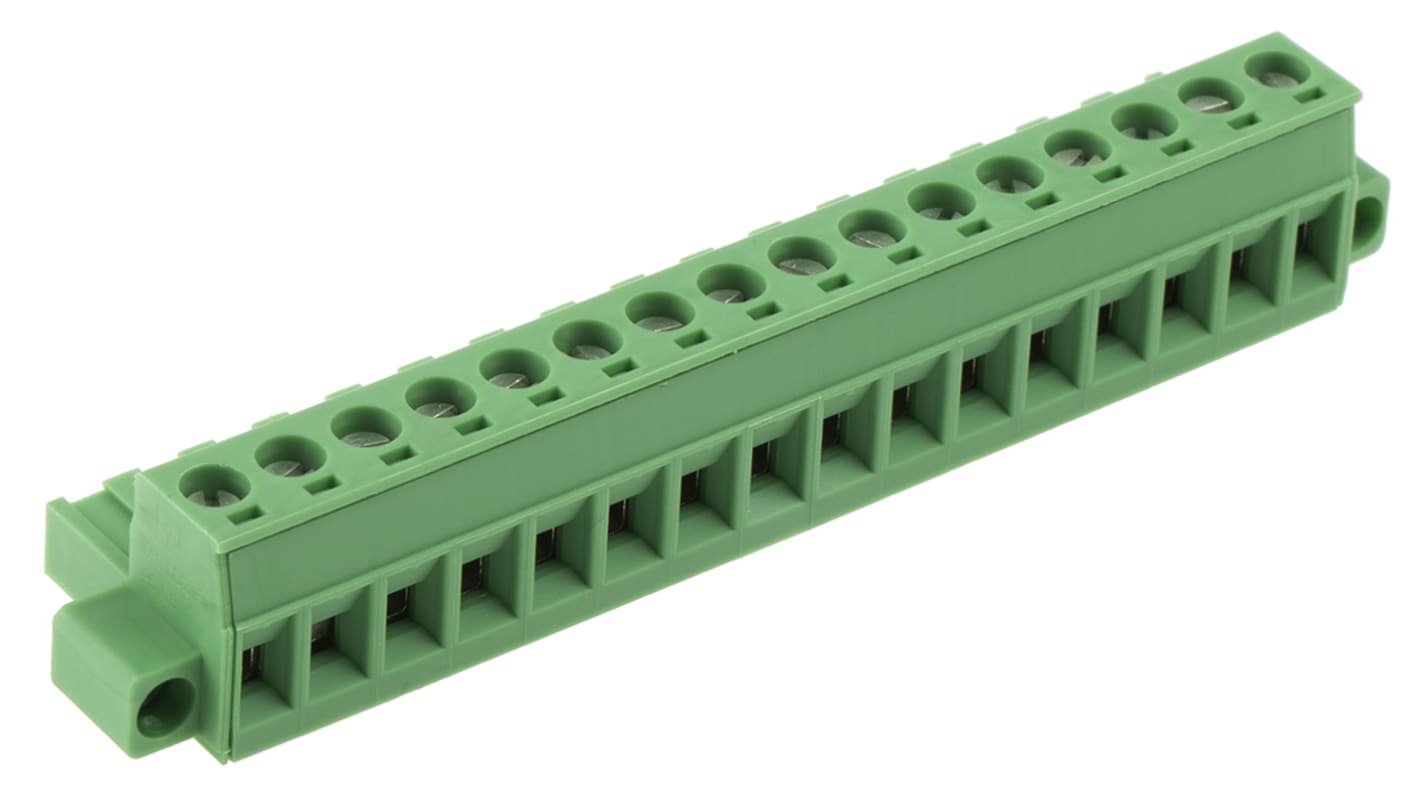

Phoenix Contact MSTB 2.5/16-STF-5.08 Series Pluggable Terminal Block, 16-Contact, 5.08 mm Pitch, 1 Row
- RS 제품 번호:
- 802-6410
- 제조사 부품 번호:
- 1778124
- 제조업체:
- Phoenix Contact
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩22,898.40
재고있음
- 22 개 단위 배송 준비 완료
- 추가로 2026년 3월 26일 부터 69 개 단위 배송
- 추가로 2026년 4월 03일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩22,898.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 802-6410
- 제조사 부품 번호:
- 1778124
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Number of Contacts | 16 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Colour | Green | |
| Voltage | 320 V | |
| Standards/Approvals | No | |
| Series | MSTB 2.5/16-STF-5.08 | |
| Depth | 15mm | |
| Length | 18.3mm | |
| Width | 91.29 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Number of Contacts 16 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Connector Gender Female | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Straight | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Colour Green | ||
Voltage 320 V | ||
Standards/Approvals No | ||
Series MSTB 2.5/16-STF-5.08 | ||
Depth 15mm | ||
Length 18.3mm | ||
Width 91.29 mm | ||
제외
Phoenix Contact PCB Terminal Block, 12A Current Rating, Plug-In Mounting - MSTB 2,5/16-STF-5,08 - 1778124
Quickly connect conductors to your circuit board with this PCB Terminal Block from Phoenix Contact. Thanks to its pre-assembled cable harness, connectors are easy to insert and remove, so you benefit from Rapid wiring and commissioning of your system.
The unit's rated surge voltage of 4kV protects it against overcurrent, so there's minimal chance of electrical faults damaging your system. Its housing is MADE from nylon to offer insulation and protection against electric shocks. As nylon doesn't corrode, this is a reliable option for use in humid settings.
A mechanical durability of 25 cycles means you can attach and remove conductors multiple times. You'll find a Terminal Block like this used in machine-building applications and electrical installations.
Features & Benefits
• Suitable for automated, semi-automated and manual wiring to best suit your application's needs
• Copper contacts ensure superior electrical conductivity for power efficiency
• Conforms to UL94 V0 flammability requirements, so it's flame-retardant and won't catch alight in the event of a fire
• Meets IEC 61984 safety standards for connectors with rated voltages between 50 and 1,000V AC
• IP20-rated housing is finger-safe and protected against wires and tools larger than 12mm
