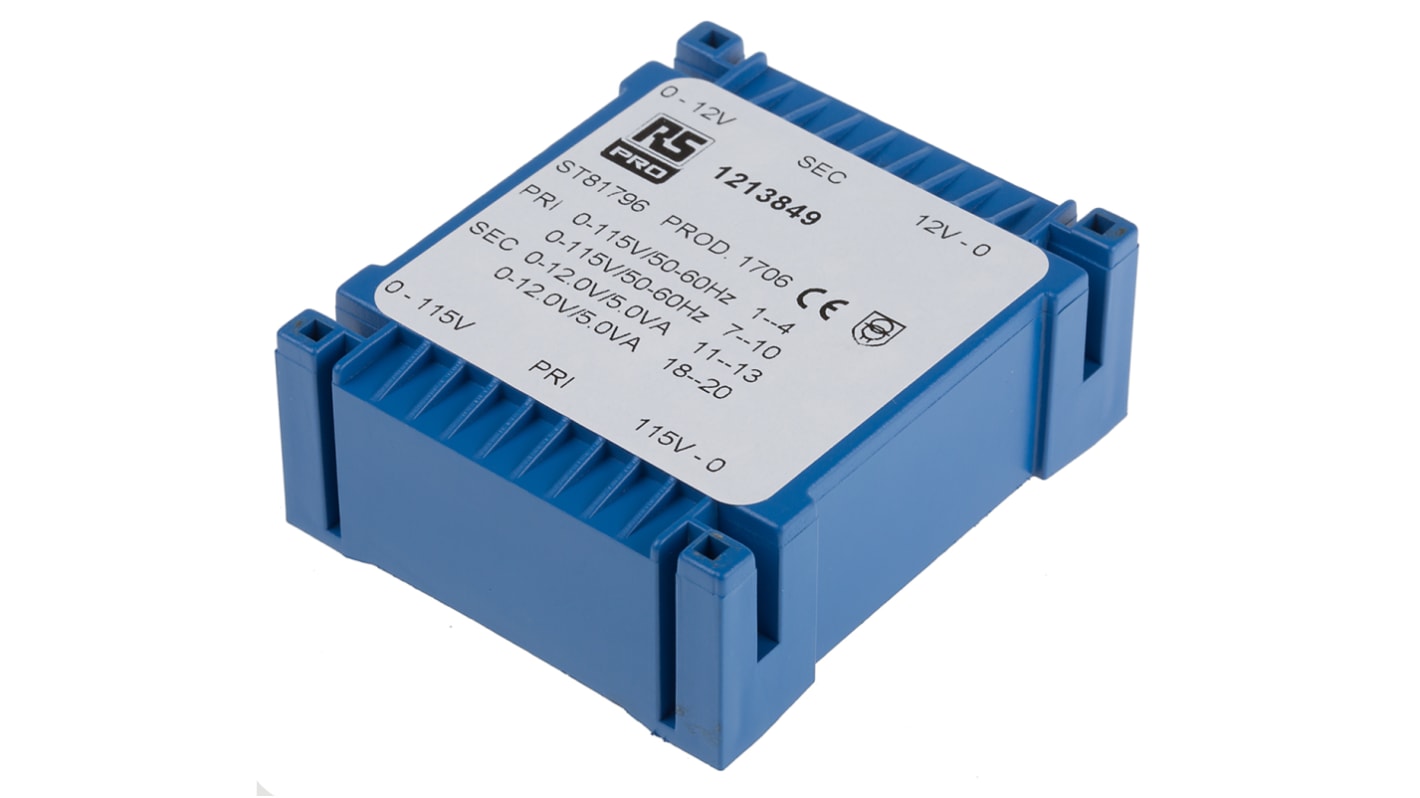

RS PRO 2 x 12 V ac 2 Output PCB PCB Transformer, UKCA, CE, RoHS 10 VA
- RS 제품 번호:
- 121-3849
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩52,920.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩52,920.00 |
| 10 - 49 | ₩50,220.00 |
| 50 + | ₩41,320.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 121-3849
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 2 x 12 V ac | |
| Primary Voltage | 115/230 V ac | |
| Number of Outputs | 2 | |
| Length | 68mm | |
| Width | 57mm | |
| Depth | 25mm | |
| Power | 10VA | |
| Weight | 260g | |
| Mount Type | PCB | |
| Isolation Voltage | 3.75kVrms | |
| Winding Type | Dual Primary, Dual Secondary | |
| PCB Transformer Current | 416.6mA | |
| Maximum Operating Temperature | 130°C | |
| Minimum Operating Frequency | 50Hz | |
| Standards/Approvals | UKCA, CE, RoHS | |
| Maximum Operating Frequency | 60Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type PCB Transformer | ||
Secondary Voltage 2 x 12 V ac | ||
Primary Voltage 115/230 V ac | ||
Number of Outputs 2 | ||
Length 68mm | ||
Width 57mm | ||
Depth 25mm | ||
Power 10VA | ||
Weight 260g | ||
Mount Type PCB | ||
Isolation Voltage 3.75kVrms | ||
Winding Type Dual Primary, Dual Secondary | ||
PCB Transformer Current 416.6mA | ||
Maximum Operating Temperature 130°C | ||
Minimum Operating Frequency 50Hz | ||
Standards/Approvals UKCA, CE, RoHS | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- CN
RS Pro PCB Low Profile Transformers
RS Pro PCB low profile transformers are low voltage transformers with a twin 115 V ac 50/60 Hz primary winding. These PCB transformers are compact and low height, have independent secondary windings suitable for series/ parallel connection to give output voltage and current options. The transformers are 100% electrical and flash tested, incorporate two compartment bobbins, high efficiency and low temperature rise, low interwinding capacity and low radiated noise.
