현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
개당
₩32,975.20
- RS 제품 번호:
- 504-486
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Secondary Voltage | 6 V ac | |
| Product Type | PCB Transformer | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 2 | |
| Length | 38mm | |
| Width | 35 mm | |
| Depth | 30mm | |
| Power | 3VA | |
| Weight | 140g | |
| Mount Type | Through Hole | |
| Isolation Voltage | 4kVrms | |
| Winding Type | Single Primary, Dual Secondary | |
| Efficiency | 67% | |
| Maximum Operating Temperature | 130°C | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | RoHS, UKCA, CE | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Secondary Voltage 6 V ac | ||
Product Type PCB Transformer | ||
Primary Voltage 230 V ac | ||
Number of Outputs 2 | ||
Length 38mm | ||
Width 35 mm | ||
Depth 30mm | ||
Power 3VA | ||
Weight 140g | ||
Mount Type Through Hole | ||
Isolation Voltage 4kVrms | ||
Winding Type Single Primary, Dual Secondary | ||
Efficiency 67% | ||
Maximum Operating Temperature 130°C | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals RoHS, UKCA, CE | ||
- COO (Country of Origin):
- PL

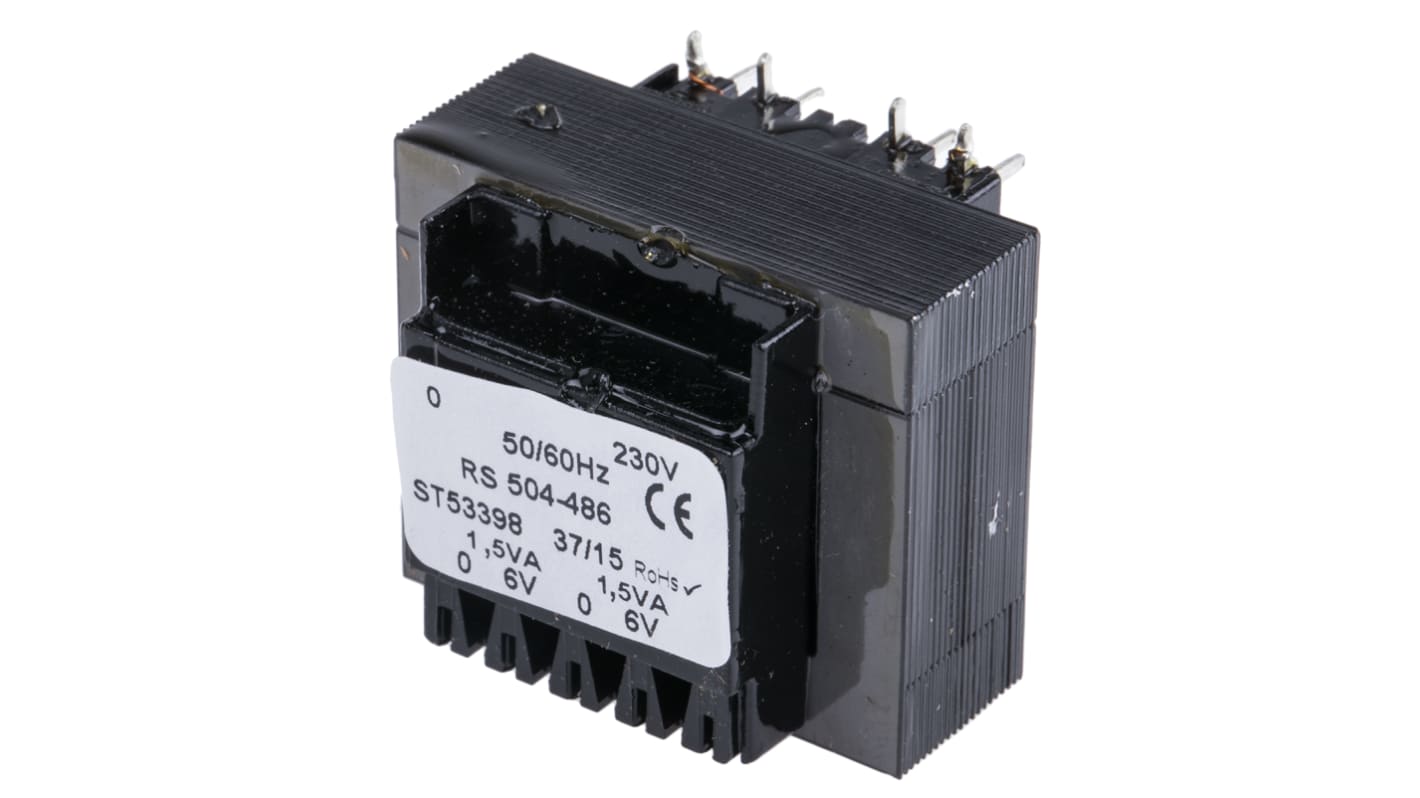

230 Vac Primary Transformers
Fully shrouded bobbins
Extra pins for secure board mounting
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Standards
BS3535; EN 60 742
