대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩32,965.80
일시적 품절
- 2026년 4월 16일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩32,965.80 |
| 10 - 24 | ₩31,649.80 |
| 25 - 49 | ₩30,343.20 |
| 50 + | ₩29,672.04 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 504-458
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 6 V ac | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 2 | |
| Length | 38mm | |
| Width | 35 mm | |
| Depth | 30mm | |
| Power | 3VA | |
| Weight | 140g | |
| Mount Type | Through Hole | |
| Isolation Voltage | 4kVrms | |
| Winding Type | Single Primary, Dual Secondary | |
| Maximum Operating Temperature | 130°C | |
| Efficiency | 63% | |
| Minimum Operating Frequency | 50Hz | |
| Standards/Approvals | CE, UKCA, RoHS | |
| Maximum Operating Frequency | 60Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type PCB Transformer | ||
Secondary Voltage 6 V ac | ||
Primary Voltage 230 V ac | ||
Number of Outputs 2 | ||
Length 38mm | ||
Width 35 mm | ||
Depth 30mm | ||
Power 3VA | ||
Weight 140g | ||
Mount Type Through Hole | ||
Isolation Voltage 4kVrms | ||
Winding Type Single Primary, Dual Secondary | ||
Maximum Operating Temperature 130°C | ||
Efficiency 63% | ||
Minimum Operating Frequency 50Hz | ||
Standards/Approvals CE, UKCA, RoHS | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- PL

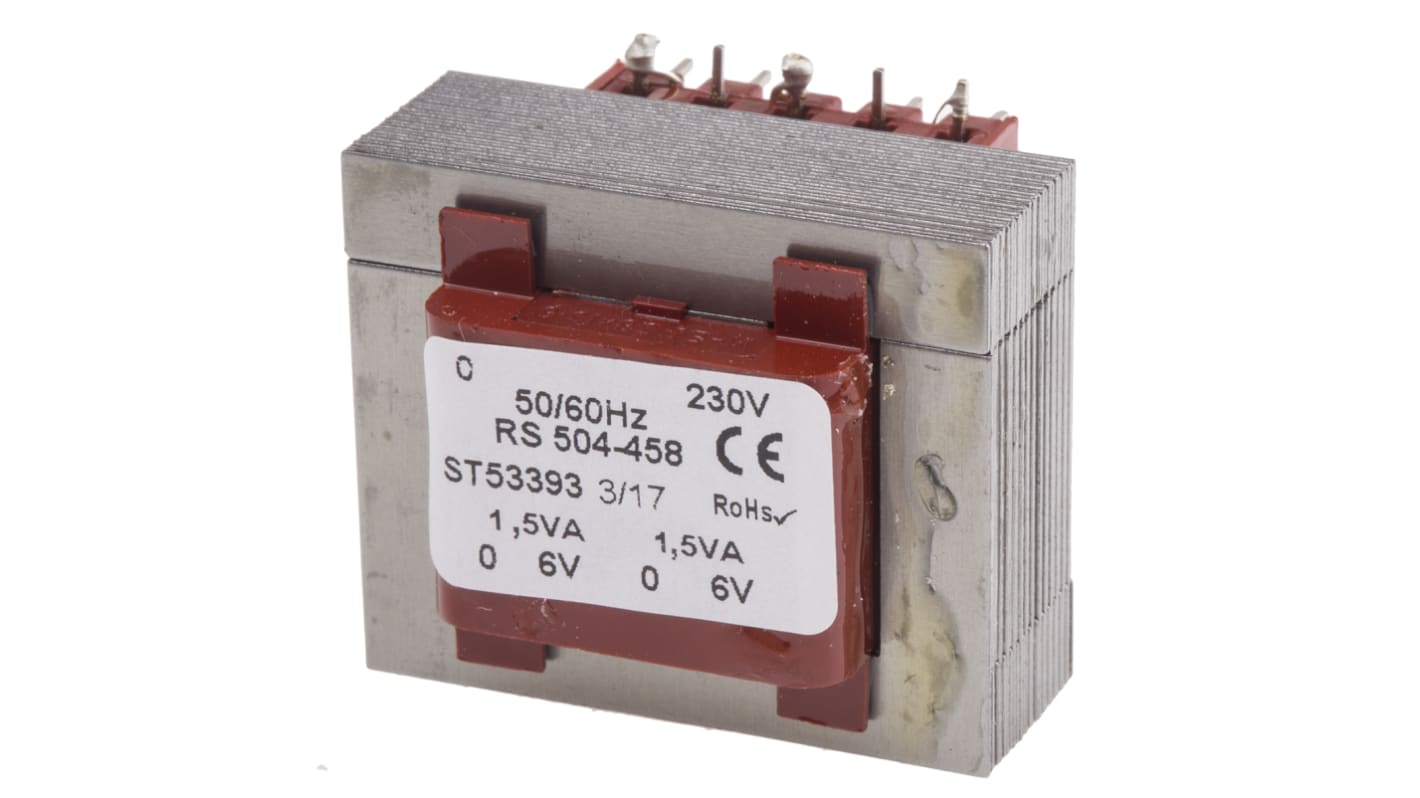

PCB Mounting, Flame Retardant Transformer with Thermal Fuse
Thermal fuse in primary providing overload and short circuit protection
Flame retardant materials to UL94-V0
Fully shrouded windings
Extra pins for secure board mounting
Designed and tested in accordance with EN 61558 (EN 60742) EN 60950
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Standards
EN 61558 (EN 60742); EN 60950
