NEWHAVEN DISPLAY INTERNATIONAL 5.5 in Passive matrix Green OLED Display 256 x 64 pixel PCB Serial/Parallel

모든 OLED Displays 열람하기

Subtotal (1 unit)*

₩167,376.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 8 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩167,376.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
427-692
제조사 부품 번호:
NHD-5.5-25664UCG3
제조업체:
NEWHAVEN DISPLAY INTERNATIONAL
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

NEWHAVEN DISPLAY INTERNATIONAL

Product Type

OLED Display

Diagonal Display Size

5.5in

Viewing Area Dimensions

136.9 x 35.1 mm

Matrix Type

Passive

Screen Resolution

256 x 64 pixel

Interface Type

Serial/Parallel

Contrast Ratio

10000:1

Driver Mounting

PCB

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS, REACH

Series

NHD-5.5-25664UCG3

Display Colour

Green

COO (Country of Origin):
TW

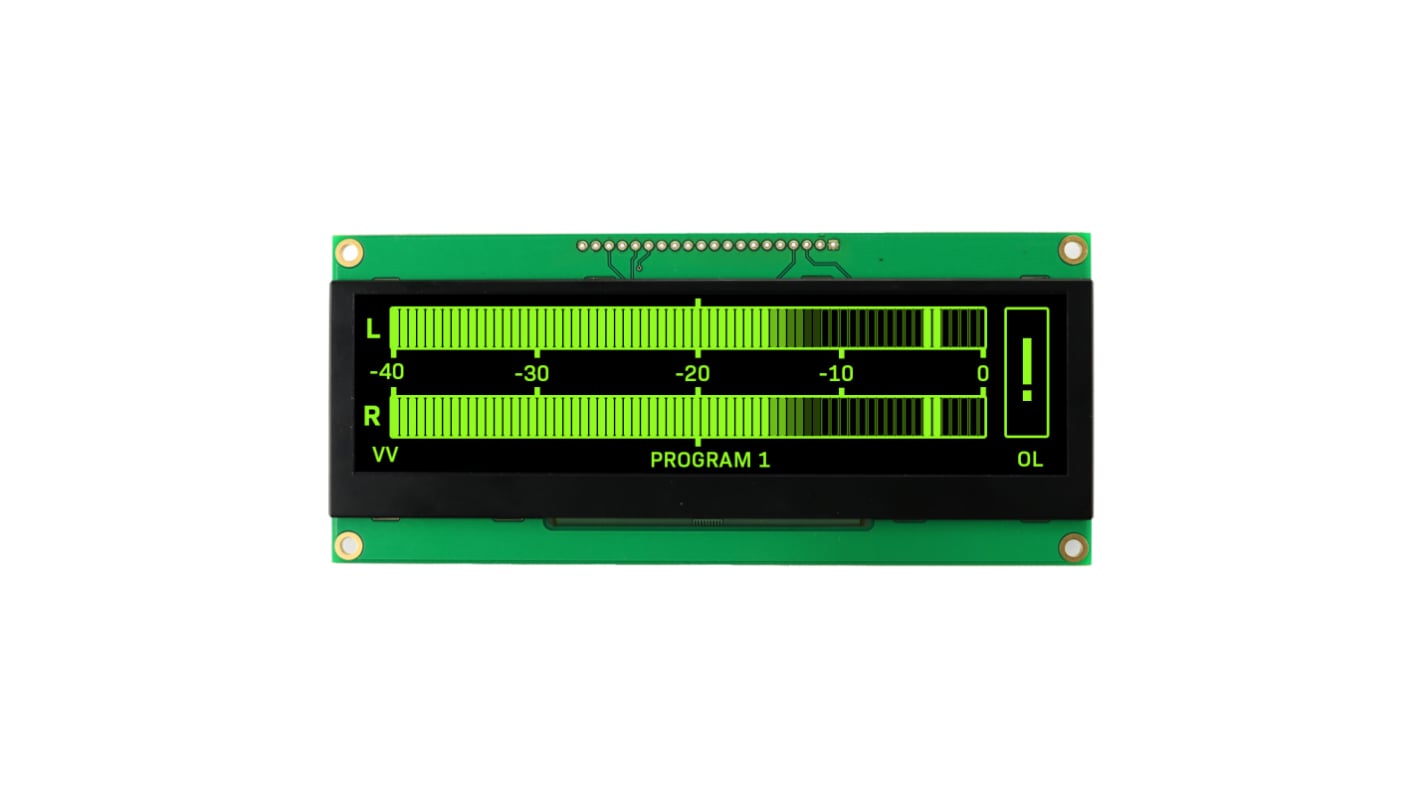

The NEWHAVEN DISPLAY INTERNATIONAL 5.5 inch diagonal sized green monochrome graphic OLED display module with a 256x64 resolution that boasts vibrant graphics against a rich black background. Its enhanced contrast and self-emitting OLED technology gives this display exceptional visibility from any angle. Due to the self-illuminating OLED technology and a low 3.3V supply voltage, this module achieves outstanding power efficiency without compromising visual brilliance. The 5.5 inch Green Graphic OLED display is a complete module with a PCB that is equipped with selectable SPI or Parallel interface options, and supports simple integration with many electronic systems like Arduino platforms. Developers will appreciate the ease of setup and flexibility with this display’s built-in SSD1322 controller and 20-pin thru-hole connection.

On-board jumpers for user-selected interface modes

Vertical mounting holes with rack unit spacing

Configurable power options for tailored performance

Designed for efficient power management

Flexible integration with specific system requirements
