InnoDisk EMPU-3201-C1 Networking Module PCIe

모든 Networking Modules 열람하기
공급 부족
글로벌 공급 부족으로 인해 언제 재입고될지 모릅니다.
RS 제품 번호:
202-9217
제조사 부품 번호:
EMPU-3201-C1
제조업체:
InnoDisk
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

InnoDisk

Product Type

Networking Module

Sub Type

Device Server

Interface Type

PCIe

Maximum Operating Temperature

85°C

Minimum Supply Voltage

3.3V

Maximum Supply Voltage

3.3V

Minimum Operating Temperature

-40°C

Standards/Approvals

No

Height

8.45mm

Series

EMPU-3201

Length

50.9mm

Width

30 mm

COO (Country of Origin):
TW

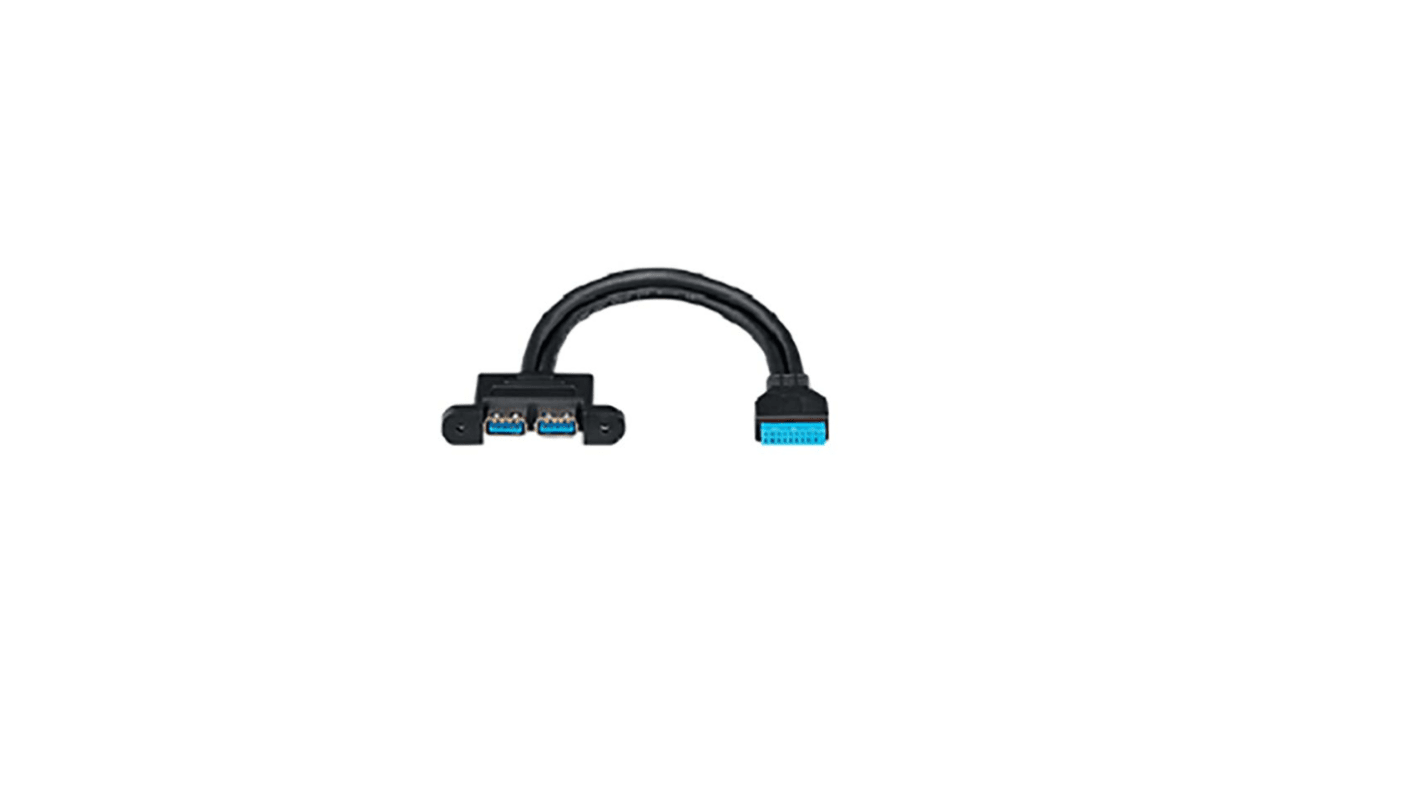

The Innodisk PCIe to dual USB 3.0 module. It has PCI Express 2.0 input and USB 3 at output. The product has 0.89W power consumption. The operating temperature ranges between -40°C to 85°C. The output connector has 19 pin header.

Compliant with Universal Serial Bus 3.0 Specification Revision 1.0

Supports 2 downstream USB 3.0 ports

Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

30μ" golden finger, 3 years warranty.

Industrial design, manufactured in innodisk Taiwan
