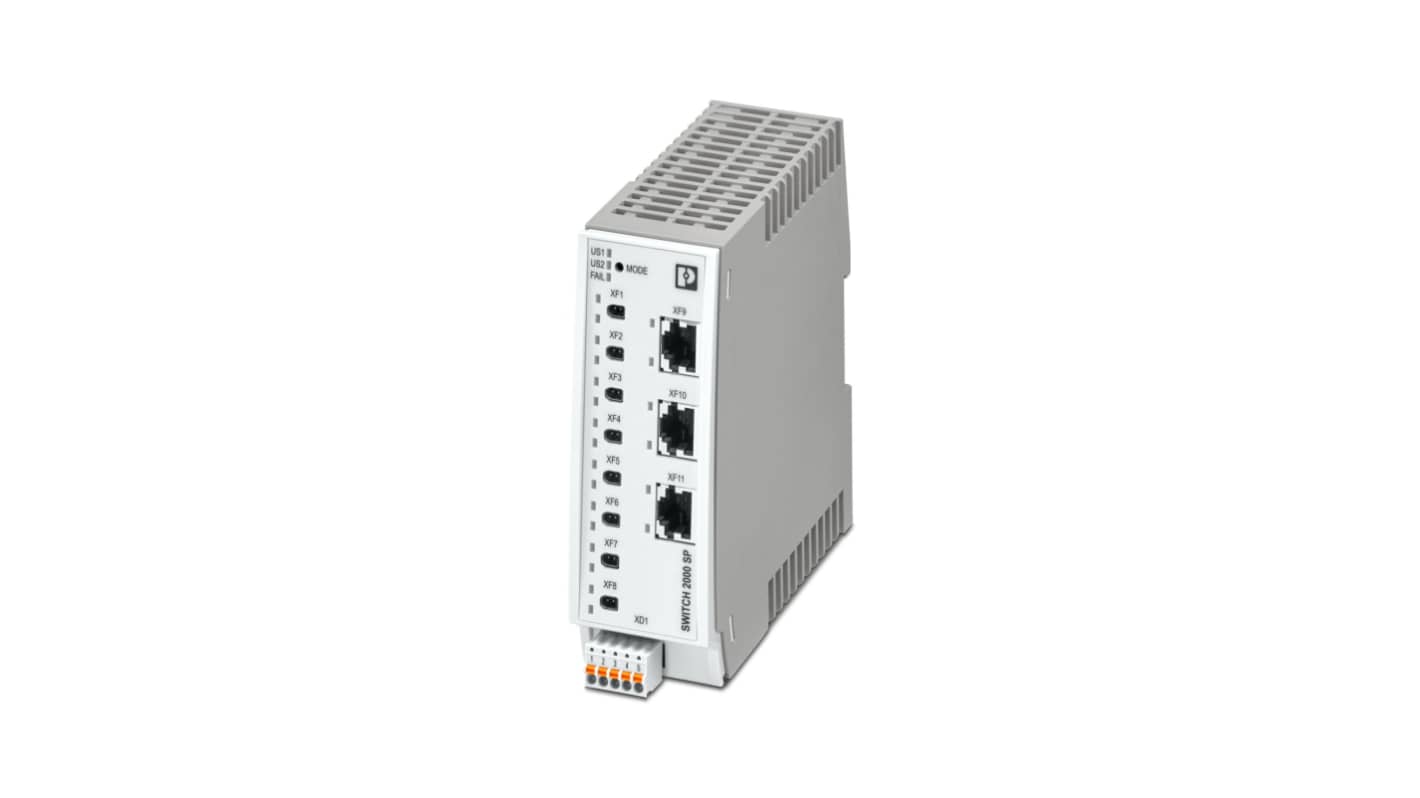

Phoenix Contact FL SWITCH Series DIN Rail Ethernet Switch, 3, 1000Mbps Transmission, 24 V

RS 제품 번호:: 519-913
제조사 부품 번호:: 1278397
제조업체:: Phoenix Contact

Phoenix Contact FL SWITCH Series DIN Rail Ethernet Switch, 3, 1000Mbps Transmission, 24 V

Subtotal (1 unit)*

₩1,796,377.60

일시적 품절

2026년 4월 06일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩1,796,377.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 519-913
제조사 부품 번호:: 1278397
제조업체:: Phoenix Contact

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	Product Type	Ethernet Switch
	Transmission Length	100m
	Transmission Speed	1000Mbps
	Fibre Port Type	RJ45
	Nominal Supply Voltage	24 V
	Mount Type	DIN Rail
	Series	FL SWITCH
	Number of RJ-45 Ports	3
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	EN 61000-6-4, cULus Listed, IEC 62443-4-1, EN 61000-6-2, EN 61000-4-4, EN 61000-4-6, EN 61000-4-5, IEEE 802.3, IEC 62443-4-2, EN 61000-4-3, EN 61000-4-2, EMC Directive 2014/30/EU
	Weight	347g
	Depth	119mm
	Height	130mm
	Width	45 mm
	Switch Type	Store and Forward Switch
	Special Features	Single Pair Ethernet Ports With PoDL, Compatible With IEC 62443-4-2, Development Process Certified in Accordance With IEC 62443-4-1, Extended Temperature Range
	Protocol Type	Profinet, EtherNet/IP

	모두 선택
	브랜드 Phoenix Contact
	Product Type Ethernet Switch
	Transmission Length 100m
	Transmission Speed 1000Mbps
	Fibre Port Type RJ45
	Nominal Supply Voltage 24 V
	Mount Type DIN Rail
	Series FL SWITCH
	Number of RJ-45 Ports 3
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Standards/Approvals EN 61000-6-4, cULus Listed, IEC 62443-4-1, EN 61000-6-2, EN 61000-4-4, EN 61000-4-6, EN 61000-4-5, IEEE 802.3, IEC 62443-4-2, EN 61000-4-3, EN 61000-4-2, EMC Directive 2014/30/EU
	Weight 347g
	Depth 119mm
	Height 130mm
	Width 45 mm
	Switch Type Store and Forward Switch
	Special Features Single Pair Ethernet Ports With PoDL, Compatible With IEC 62443-4-2, Development Process Certified in Accordance With IEC 62443-4-1, Extended Temperature Range
	Protocol Type Profinet, EtherNet/IP

Datasheet - 1278397

COO (Country of Origin):: DE

The Phoenix Contact Industrial Ethernet Switch designed to enhance network performance in demanding environments. With a robust managed switch architecture, it boasts three RJ45 ports that support 10/100/1000 Mbps, affirming its commitment to superior data transfer rates and efficiency. The switch is compatible with PROFINET Conformance-Class B, ensuring seamless integration into existing network infrastructures. Crafted for resilience, it operates within an extended temperature range, making it ideal for industrial applications subject to extreme conditions.

Elegant slim design facilitates space saving installations

Web based management streamlines configuration and monitoring

Built to comply with IEEE standards for guaranteed performance

Offers robust protection features against network failures

Integrates seamlessly into existing network structures without disruptions

Phoenix Contact FL SWITCH Series DIN Rail Ethernet Switch, 3, 1000Mbps Transmission, 24 V
