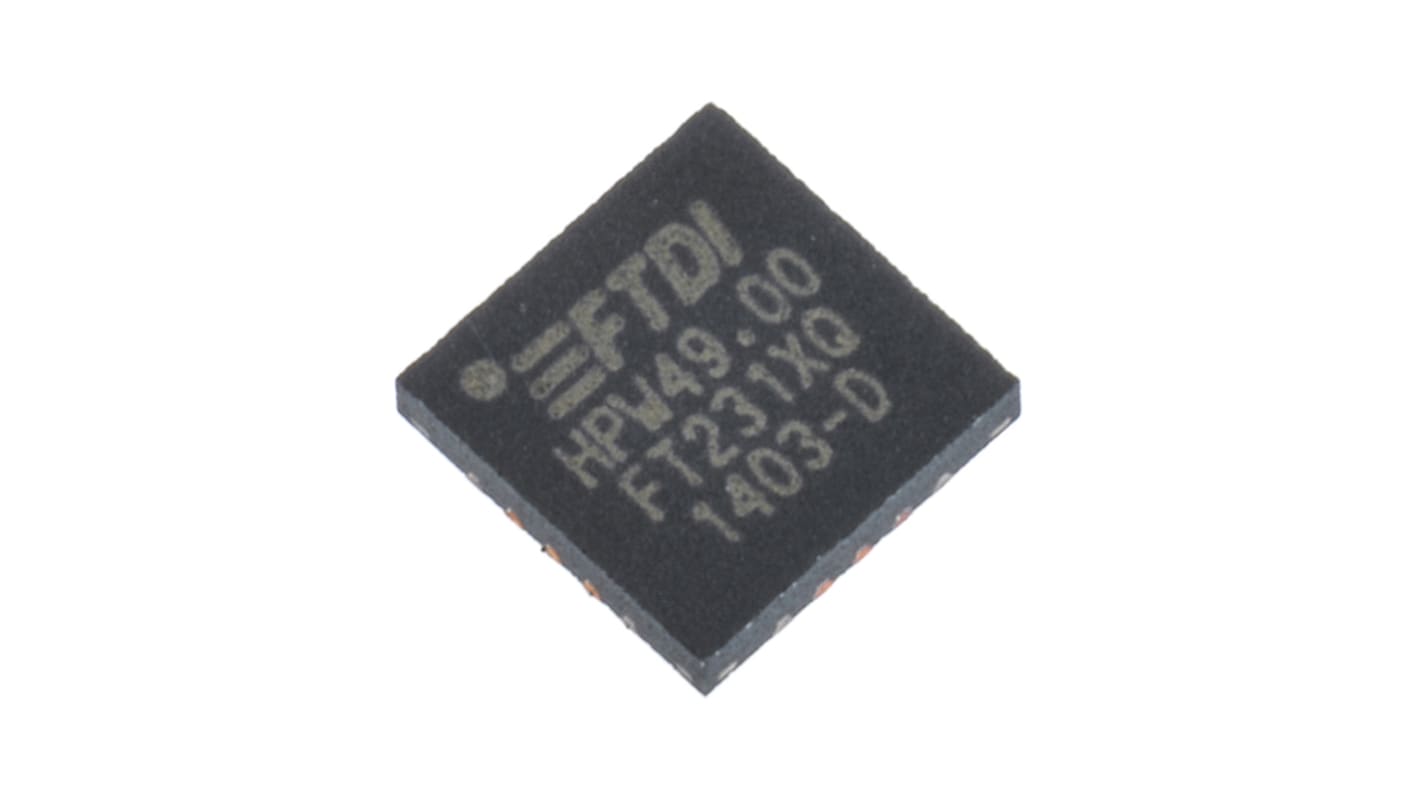

FTDI Chip Multiprotocol Transceiver 20-Pin, FT231XQ-R
- RS 제품 번호:
- 757-0045
- Distrelec 제품 번호:
- 304-01-771
- 제조사 부품 번호:
- FT231XQ-R
- 제조업체:
- FTDI Chip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 2 units)*
₩6,843.20
제한된 재고
- 추가로 2026년 2월 02일 부터 40 개 단위 배송
- 추가로 2026년 2월 09일 부터 2,510 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 2 - 1248 | ₩3,421.60 | ₩6,843.20 |
| 1250 - 6248 | ₩3,320.08 | ₩6,638.28 |
| 6250 + | ₩3,252.40 | ₩6,504.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 757-0045
- Distrelec 제품 번호:
- 304-01-771
- 제조사 부품 번호:
- FT231XQ-R
- 제조업체:
- FTDI Chip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | FTDI Chip | |
| Maximum Data Rate | 3Mbps | |
| Number of Transmitters | 1 | |
| Product Type | Multiprotocol Transceiver | |
| Number of Receivers | 1 | |
| Number of Transceivers | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 3.3V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 5.25V | |
| Minimum Operating Temperature | -40°C | |
| Interface Standards | USB 2.0 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Power Supply Type | USB | |
| Series | FT231X | |
| Automotive Standard | No | |
| Supply Current | 8mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 FTDI Chip | ||
Maximum Data Rate 3Mbps | ||
Number of Transmitters 1 | ||
Product Type Multiprotocol Transceiver | ||
Number of Receivers 1 | ||
Number of Transceivers 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage 3.3V | ||
Pin Count 20 | ||
Maximum Supply Voltage 5.25V | ||
Minimum Operating Temperature -40°C | ||
Interface Standards USB 2.0 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Power Supply Type USB | ||
Series FT231X | ||
Automotive Standard No | ||
Supply Current 8mA | ||
FT230X, FT231X, FT234XD - Full Speed USB to UART, FTDI Chip
The FTDI Chip FT230X and FT234XD are Ful Speed USB to Basic serial UART Interface devices. The FT231X is a Full Speed USB to Full Handshake UART Interface.
They have a fully integrated MTP memory and an integrated clock circuit which requires no external crystal which helps to reduce external component count.
Capable of operating up to 3 MBaud, with low power consumption (8 mA), all USB to UART devices operate efficiently with USB host controllers. They use as little bandwidth as possible.
The FT230X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.
- Fully integrated MTP memory, clock generation, AVCC filtering, Power-On Reset (POR) and LDO regulators.
- Configurable CBUS I/O Pin Options.
- Asynchronous and Synchronous Bit Bang Modes.
- Operates at between +3.3 V and +5.25 V. A nominal operational mode current of 8 mA and a nominal USB suspend mode current of 125 μA.
