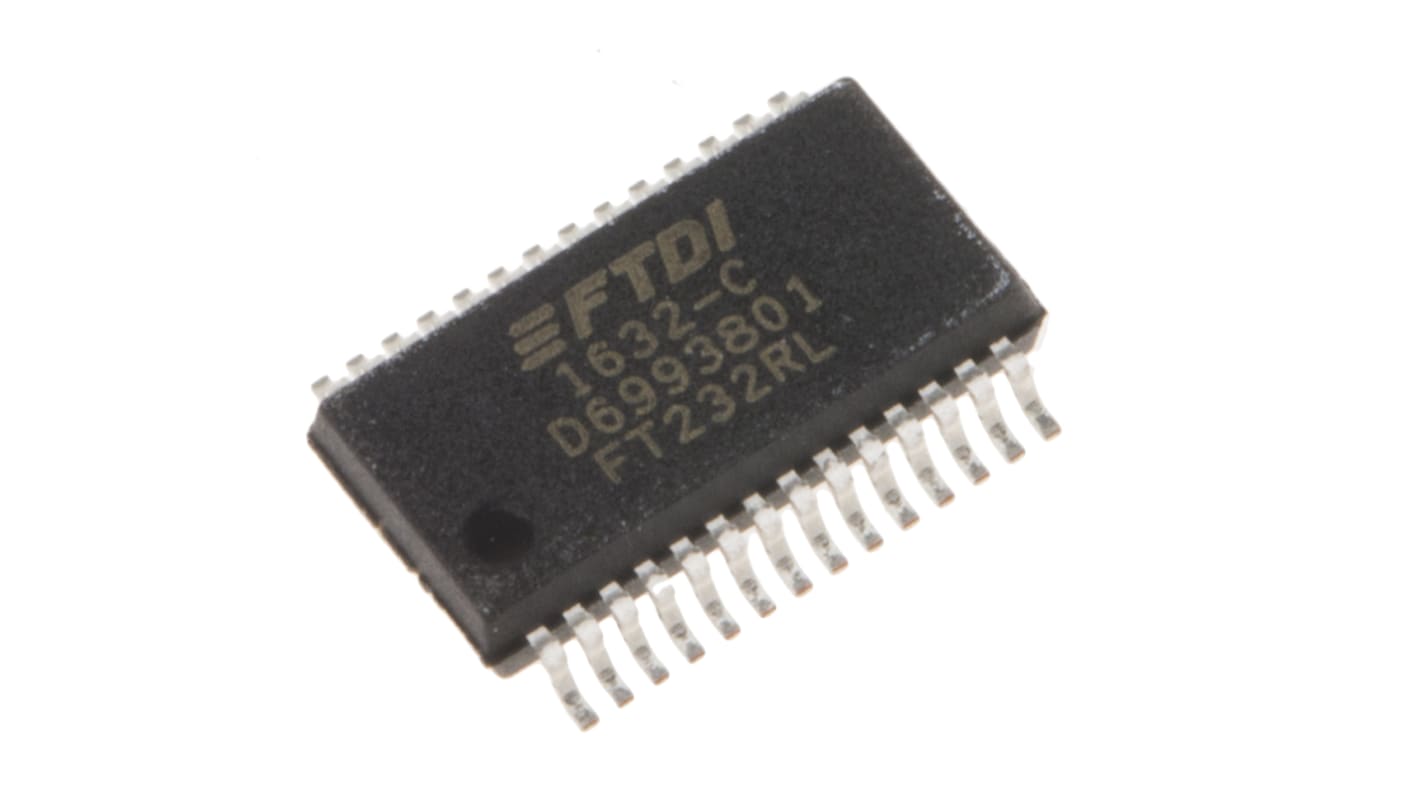

FTDI Chip Multiprotocol Transceiver 28-Pin SSOP, FT232RL-REEL
- RS 제품 번호:
- 406-580
- 제조사 부품 번호:
- FT232RL-REEL
- 제조업체:
- FTDI Chip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩6,429.60
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 499 | ₩6,429.60 |
| 500 - 2499 | ₩6,335.60 |
| 2500 + | ₩5,207.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 406-580
- 제조사 부품 번호:
- FT232RL-REEL
- 제조업체:
- FTDI Chip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | FTDI Chip | |
| Number of Transmitters | 1 | |
| Maximum Data Rate | 3MBd | |
| Product Type | Multiprotocol Transceiver | |
| Number of Receivers | 1 | |
| Number of Transceivers | 1 | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Minimum Supply Voltage | 1.8V | |
| Pin Count | 28 | |
| Maximum Supply Voltage | 5.25V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Interface Standards | UART | |
| Width | 5.3 mm | |
| Length | 10.2mm | |
| Standards/Approvals | No | |
| Power Supply Type | Single | |
| Height | 1.75mm | |
| Automotive Standard | No | |
| Supply Current | 15mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 FTDI Chip | ||
Number of Transmitters 1 | ||
Maximum Data Rate 3MBd | ||
Product Type Multiprotocol Transceiver | ||
Number of Receivers 1 | ||
Number of Transceivers 1 | ||
Mount Type Surface | ||
Package Type SSOP | ||
Minimum Supply Voltage 1.8V | ||
Pin Count 28 | ||
Maximum Supply Voltage 5.25V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Interface Standards UART | ||
Width 5.3 mm | ||
Length 10.2mm | ||
Standards/Approvals No | ||
Power Supply Type Single | ||
Height 1.75mm | ||
Automotive Standard No | ||
Supply Current 15mA | ||
FT232R - USB to Serial UART with Clock Generator, FTDI Chip
The FTDI Chip FT232R is a USB to serial UART Interface with optional clock generator output. Asynchronous and synchronous bit bang Interface modes are also available. Together with EEPROM, clock circuit and USB resistors effectively makes it a "3 in 1" chip for some applications. The internally generated clock (6 MHz, 12 MHz, 24 MHz, and 48 MHz) can be used to drive a microcontroller or external logic.
A unique number, the FTDIChip-ID, is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle. It can then be used to protect customer application software from being copied. Royalty-free drivers for the most common operating systems are available from FTDI website. http://www.ftdichip.com
The FT232R is available in Compact 28-pin SSOP (RS 406-580) and 32-pin QFN (RS 730-0168) packages.
Features & Benefits
• Single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled on the chip. No USB-specific firmware programming required.
• Fully integrated 1024-bit EEPROM storing device descriptors and CBUS I/O configuration.
• Fully integrated USB termination resistors.
• Fully integrated clock generation with no external crystal required Plus optional clock output
• Data transfer rates from 300 Baud to 3 MBaud (RS422, RS485, RS232) at TTL levels.
• 128 B receive buffer and 256 B transmit buffer utilising buffer smoothing technology to allow for high data throughput
Applications
USB Industrial Control
USB bar code readers
USB Digital Camera Interface
USB wireless modems
PDA to USB Transfers
USB Card readers
USB FLASH card readers and writers
USB Audio and low bandwidth video data transfer
