제조사부품번호

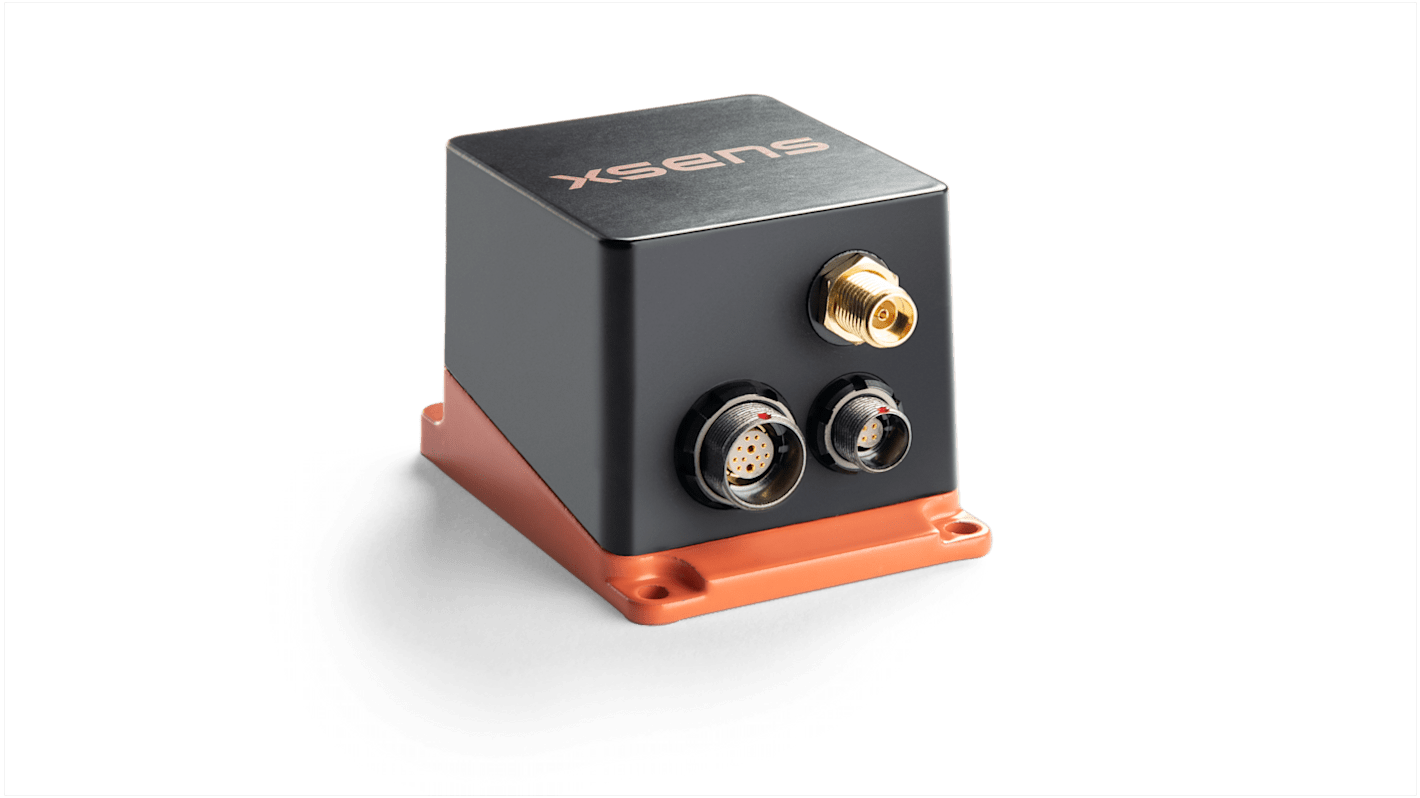

Xsens by Movella MTI-680G RTK GNSS CAN, Xbus, ASCII

RS 제품 번호:: 261-4490
제조사 부품 번호:: MTi-680G
제조업체:: Xsens by Movella

Xsens by Movella MTI-680G RTK GNSS CAN, Xbus, ASCII

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩5,310,924.80

재고있음

2 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 1	₩5,310,924.80
2 +	₩5,151,594.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 261-4490
제조사 부품 번호:: MTi-680G
제조업체:: Xsens by Movella

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Xsens by Movella
	Product Type	Sensor
	Device Type	MTI-680G RTK GNSS
	Mount Type	Chassis Mount
	Height	36.75mm
	Length	56.5mm
	Width	40.9 mm
	Communication Port Type	CAN, Xbus, ASCII
	Weight	98g
	Maximum Supply Voltage	24V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS, CE, FCC
	IP Rating	IP68
	Series	MTi 600

	모두 선택
	브랜드 Xsens by Movella
	Product Type Sensor
	Device Type MTI-680G RTK GNSS
	Mount Type Chassis Mount
	Height 36.75mm
	Length 56.5mm
	Width 40.9 mm
	Communication Port Type CAN, Xbus, ASCII
	Weight 98g
	Maximum Supply Voltage 24V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS, CE, FCC
	IP Rating IP68
	Series MTi 600

COO (Country of Origin):: NL

The XSENS is a RTK GNSS/INS with a small form-factor design for deep integration into your application. Building on the proven MTi 600-series technology it enables a robust and easy to use cm-level positioning and orientation tracking. If features a interface to an external RTK GNSS receiver so you can efficiently design your application.

Connects to external GNSS receiver

IP51-rated GNSS

Pitch & sub-meter level

Position accuracy

Xsens by Movella MTI-680G RTK GNSS CAN, Xbus, ASCII
