제조사부품번호

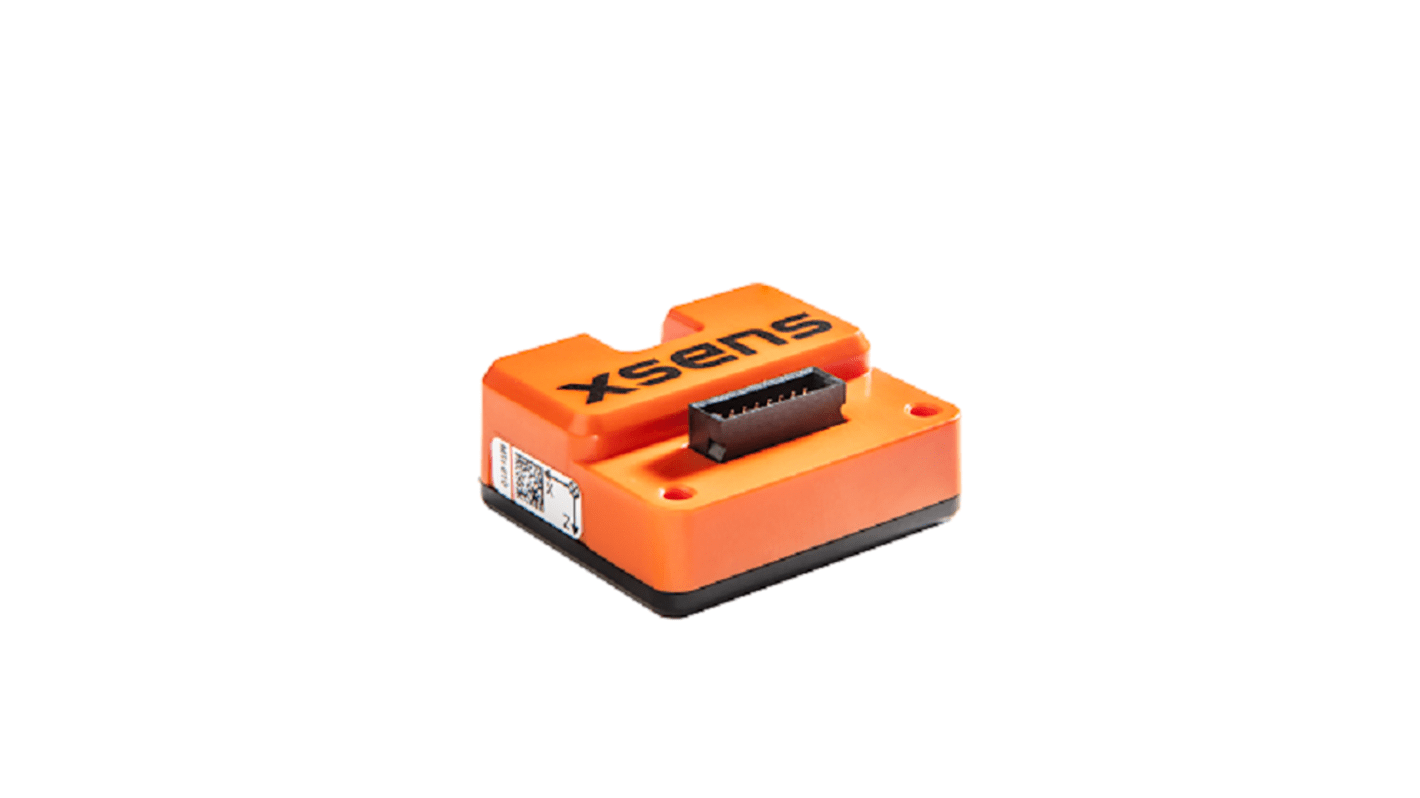

Xsens by Movella MTi Module CAN, ASCII, Xbus

RS 제품 번호:: 261-4488
제조사 부품 번호:: MTi-680
제조업체:: Xsens by Movella

Xsens by Movella MTi Module CAN, ASCII, Xbus

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩2,556,010.40

마지막 RS 재고

최종적인 2 개 unit(s)이 배송 준비 됨

수량	한팩당
1 - 1	₩2,556,010.40
2 +	₩2,504,874.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 261-4488
제조사 부품 번호:: MTi-680
제조업체:: Xsens by Movella

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Xsens by Movella
	Device Type	MTi Module
	Product Type	Sensor
	Mount Type	Chassis Mount
	Height	13mm
	Length	28mm
	Communication Port Type	CAN, ASCII, Xbus
	Width	31.5 mm
	Weight	8.9g
	Terminal Type	16-Pin
	Maximum Supply Voltage	24V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Series	MTi 600
	IP Rating	IP51
	Standards/Approvals	CE, FCC, RoHS

	모두 선택
	브랜드 Xsens by Movella
	Device Type MTi Module
	Product Type Sensor
	Mount Type Chassis Mount
	Height 13mm
	Length 28mm
	Communication Port Type CAN, ASCII, Xbus
	Width 31.5 mm
	Weight 8.9g
	Terminal Type 16-Pin
	Maximum Supply Voltage 24V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Series MTi 600
	IP Rating IP51
	Standards/Approvals CE, FCC, RoHS

COO (Country of Origin):: NL

The XSENS is a RTK GNSS/INS with a small form-factor design for deep integration into your application. Building on the proven MTi 600-series technology it enables a robust and easy to use cm-level positioning and orientation tracking. If features a interface to an external RTK GNSS receiver so you can efficiently design your application.

Connects to external GNSS receiver

IP51-rated GNSS

Pitch & sub-meter level

Position accuracy

Xsens by Movella MTi Module CAN, ASCII, Xbus
