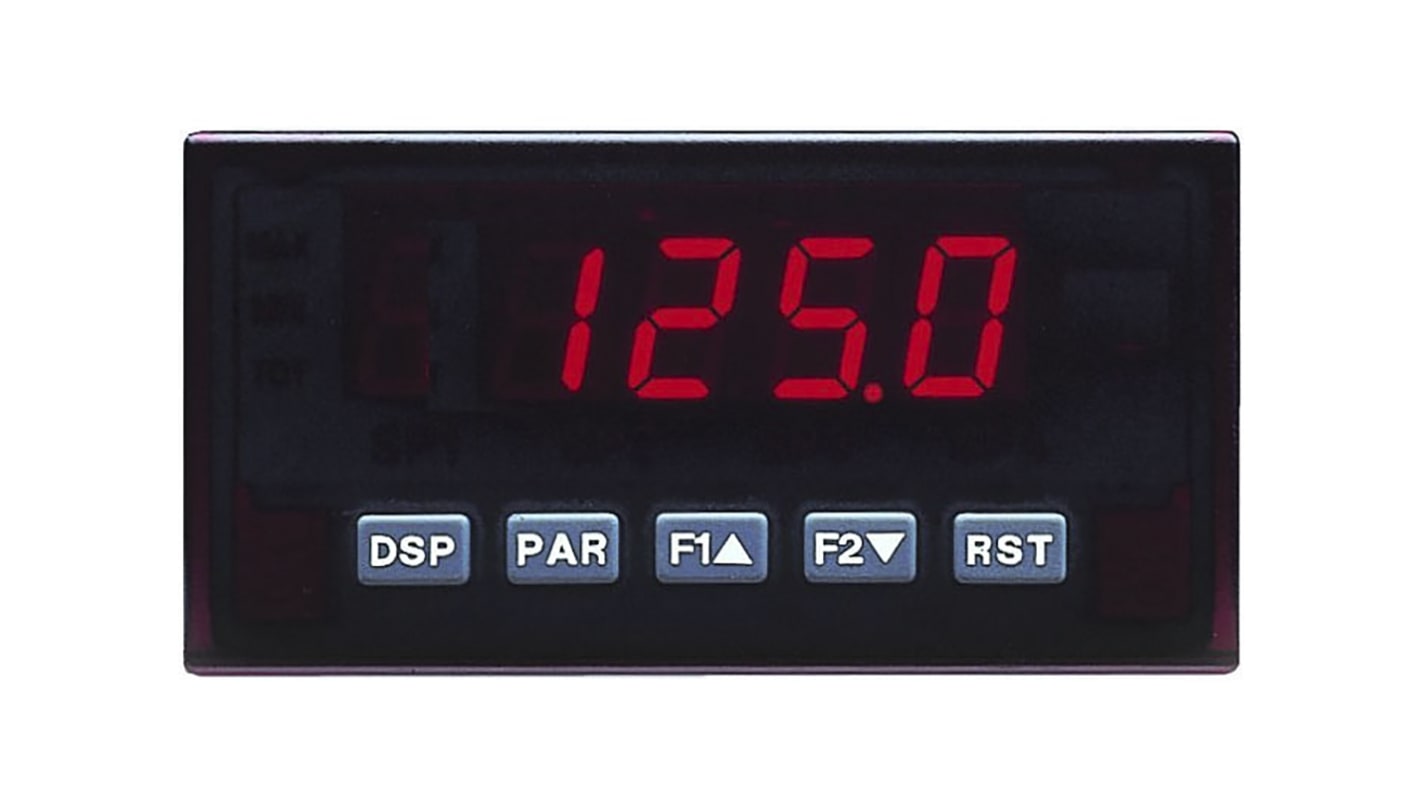

Red Lion PAX LED Digital Panel Multi-Function Meter, 45mm x 92mm
- RS 제품 번호:
- 905-5655
- Distrelec 제품 번호:
- 302-29-652
- 제조사 부품 번호:
- PAXH0000
- 제조업체:
- Red Lion
대량 구매 할인 기용 가능
가격 개당**
₩679,606.20
5 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩679,606.20 |
| 5 - 9 | ₩652,433.60 |
| 10 + | ₩625,242.80 |
**다른 단위에 대한 가격 표시
- RS 제품 번호:
- 905-5655
- Distrelec 제품 번호:
- 302-29-652
- 제조사 부품 번호:
- PAXH0000
- 제조업체:
- Red Lion
제외
- COO (Country of Origin):
- US
PAX Analogue Input Panel Meter
The PAX analogue panel meters offer many features and performance capabilities to suit a wide range of industrial applications. Available in 5 different models to handle various analogue inputs, including DC voltage/current, AC voltage/current, process, temperature and strain gage.
5-digit (14.2 mm) red sunlight readable display
Variable intensity display
16 point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay with backlight
Crimson® programming software
NEMA 4X/IP65 sealed front bezel
Variable intensity display
16 point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay with backlight
Crimson® programming software
NEMA 4X/IP65 sealed front bezel
Models available:
Red Lion Analogue Input Panel Meter
The Red Lion analogue input panel meter is an indicator that offers several features and performance capabilities to suit a wide range of industrial applications. It measures the DC/voltage, strain, temperature. The optional plug-in output cards allow the configuration of the meter for present applications while providing easy upgrades for the future. The intensity of the display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.
The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.
The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.
Features and Benefits
5-digit 0.56in red sunlight readable display
Variable intensity display
16-point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay w/backlight
4 set point alarm outputs (w/option card)
Communication and bus capabilities (w/option card)
Retransmitted analogue output (w/option card)
PC software available for meter configuration
Cut-out height of 96.5mm and width of 49.5mm
The sturdy plastic housing is also designed for tough industrial use
Operating temperature ranges between -10°C and 50°C
Variable intensity display
16-point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay w/backlight
4 set point alarm outputs (w/option card)
Communication and bus capabilities (w/option card)
Retransmitted analogue output (w/option card)
PC software available for meter configuration
Cut-out height of 96.5mm and width of 49.5mm
The sturdy plastic housing is also designed for tough industrial use
Operating temperature ranges between -10°C and 50°C
Certifications
NEMA 4X/
IP65 rated sealed front bezel
CE certified
cULus approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP65 rated sealed front bezel
CE certified
cULus approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Red Lion
속성 | 값 |
|---|---|
| Properties Measured | Current, Strain Gauge, Temperature, Voltage |
| Display Type | LED |
| Cutout Height | 45mm |
| Cutout Width | 92mm |
| Depth | 104.1mm |
| Number of Digits | 5 |
| Digit Height | 14.2 mm |
| Minimum Temperature | 0°C |
| Maximum Temperature | +50°C |
| Measurement Range | ±200 (μA dc) → ±2 (A dc), ±200 mV dc → ±300 V dc |
| Meter Type | Electronic |
| Series | PAX |
| Approvals | CE Certified, cUL Recognized, UL Approved |
| Minimum Measurement | ±200 μA dc, ±200 mV dc |
