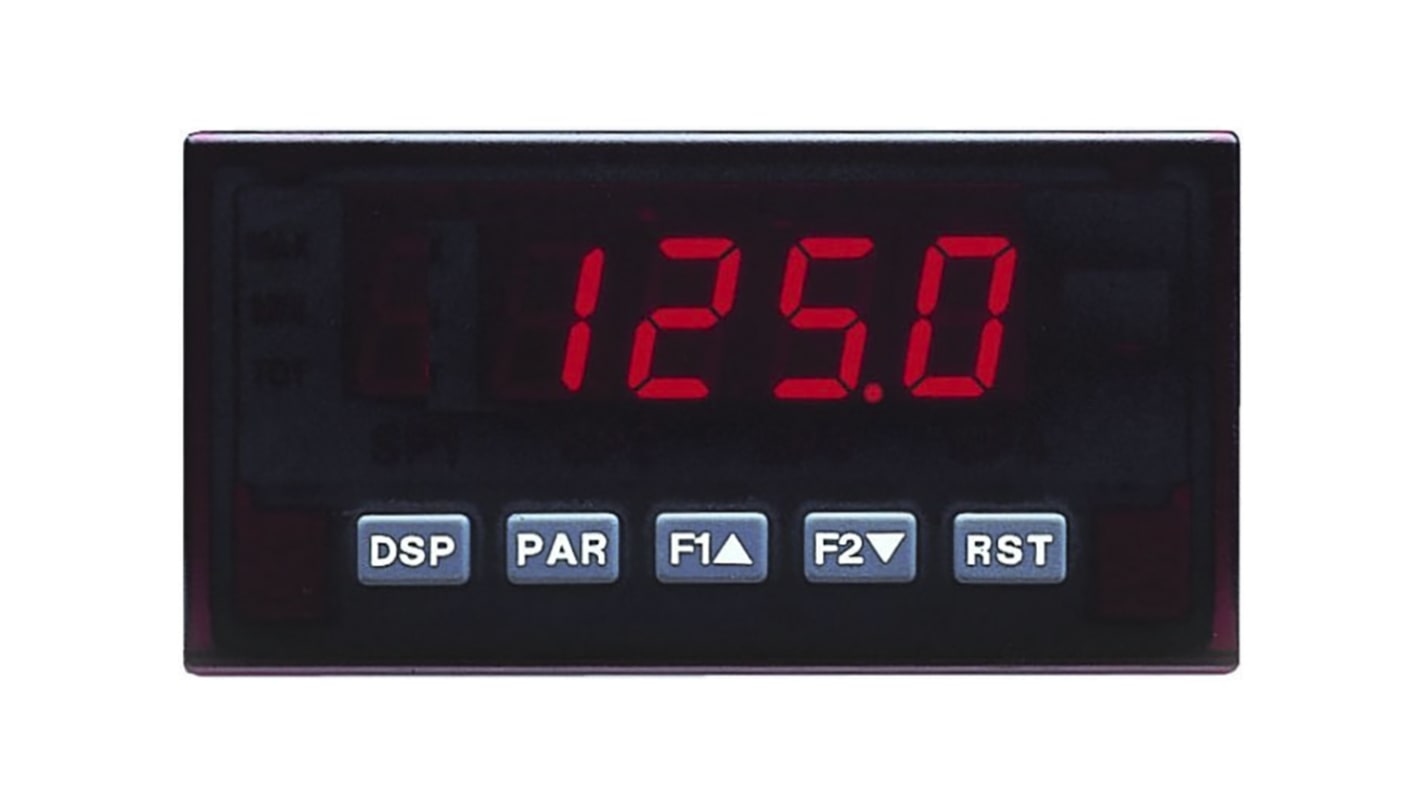

Red Lion PAX LED Digital Panel Multi-Function Meter, 45mm x 92mm

모든 Multi Function Panel Meters 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 재고 번호:
905-5646
제조 부품 번호:
PAXDP010
제조업체:
Red Lion
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Red Lion

Display Type

LED

Cutout Height

45mm

Cutout Width

92mm

Number of Digits

5

Depth

104.1mm

Digit Height

14.2 mm

Minimum Temperature

0°C

Maximum Temperature

+50°C

Measurement Range

-19999 → 99999

Minimum Measurement

-19999

Meter Type

Electronic

Approvals

CE Certified, cUL Recognized, UL Approved

Series

PAX

COO (Country of Origin):
US

PAX Analogue Input Panel Meter


The PAX analogue panel meters offer many features and performance capabilities to suit a wide range of industrial applications. Available in 5 different models to handle various analogue inputs, including DC voltage/current, AC voltage/current, process, temperature and strain gage.

5-digit (14.2 mm) red sunlight readable display
Variable intensity display
16 point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay with backlight
Crimson® programming software
NEMA 4X/IP65 sealed front bezel

Models available:


PAXH- AC true RMS voltage/current input (905-5655)
PAXP- Process input (905-5686 & 905-5680)
PAXS- Strain gage/bridge input (905-5696 & 905-5706)

Red Lion Analogue Input Panel Meter


The Red Lion analogue input panel meter is an indicator that offers several features and performance capabilities to suit a wide range of industrial applications. It measures the DC/voltage, strain, temperature. The optional plug-in output cards allow the configuration of the meter for present applications while providing easy upgrades for the future. The intensity of the display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.
The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.

Features and Benefits


5-digit 0.56in red sunlight readable display
Variable intensity display
16-point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay w/backlight
4 set point alarm outputs (w/option card)
Communication and bus capabilities (w/option card)
Retransmitted analogue output (w/option card)
PC software available for meter configuration
Cut-out height of 96.5mm and width of 49.5mm
The sturdy plastic housing is also designed for tough industrial use
Operating temperature ranges between -10°C and 50°C

Certifications


NEMA 4X/
IP65 rated sealed front bezel
CE certified
cULus approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
