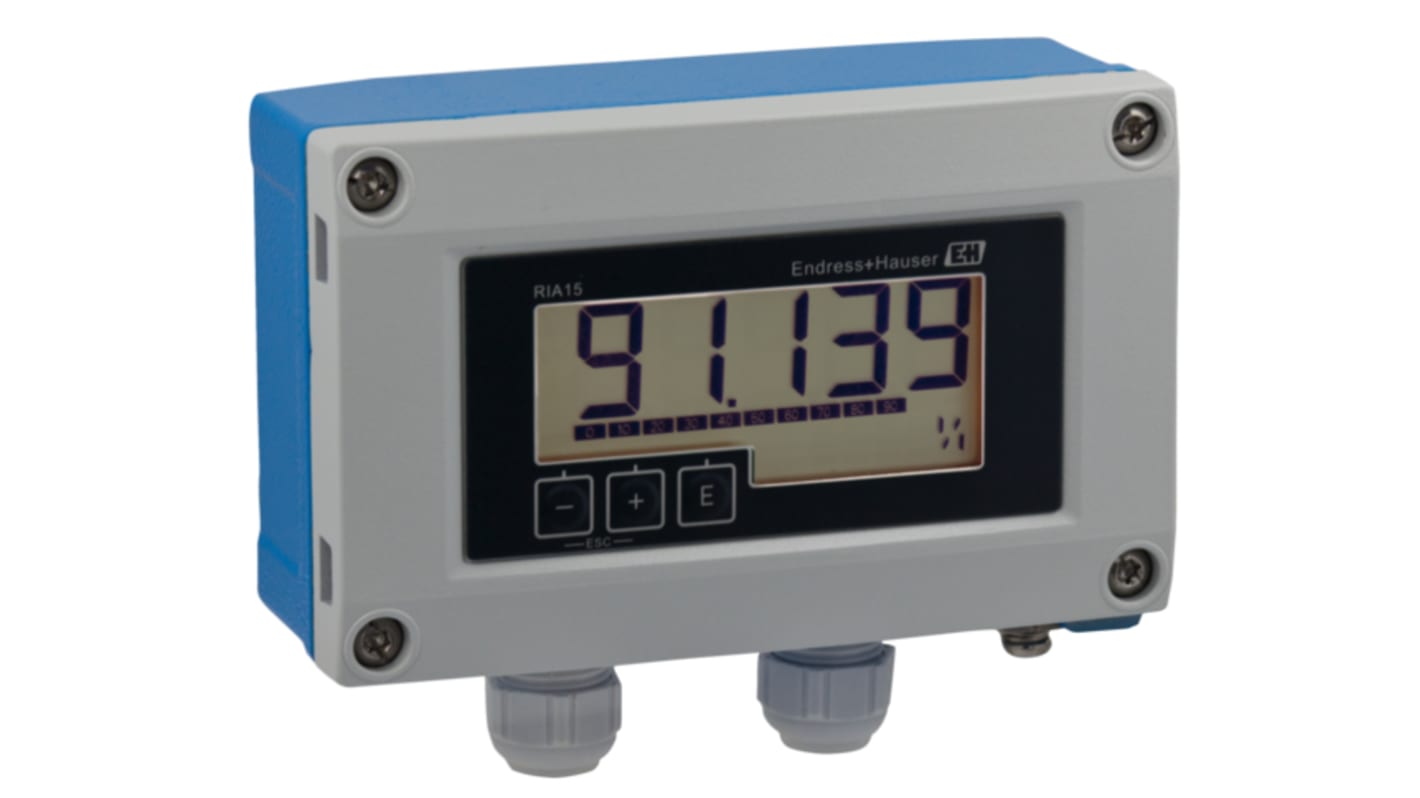

Endress+Hauser RIA15 LCD Multi-Function Panel Meters for Current, HART Signal, 45 mm x 92 mm

RS 제품 번호:: 288-6527
Distrelec 제품 번호:: 304-26-844
제조사 부품 번호:: RIA15-BAA1
제조업체:: Endress+Hauser

Endress+Hauser RIA15 LCD Multi-Function Panel Meters for Current, HART Signal, 45 mm x 92 mm

Subtotal (1 unit)*

₩597,520.00

일시적 품절

2026년 10월 16일 부터 4 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩597,520.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 288-6527
Distrelec 제품 번호:: 304-26-844
제조사 부품 번호:: RIA15-BAA1
제조업체:: Endress+Hauser

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Endress+Hauser
	Properties Measured	Current, HART Signal
	Product Type	Multi-Function Panel Meters
	Display Type	LCD
	Cutout Height	45mm
	Number of Digits	5
	Depth	4.5mm
	Cutout Width	92mm
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	CE mark
	Series	RIA15
	Meter Type	Loop Powered LCD Indicator

	모두 선택
	브랜드 Endress+Hauser
	Properties Measured Current, HART Signal
	Product Type Multi-Function Panel Meters
	Display Type LCD
	Cutout Height 45mm
	Number of Digits 5
	Depth 4.5mm
	Cutout Width 92mm
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Standards/Approvals CE mark
	Series RIA15
	Meter Type Loop Powered LCD Indicator

COO (Country of Origin):: DE

Endress+Hauser RIA15 Series Multi-Function Panel Meters, 17mm Digit Height, 92mm Cutout Width - RIA15-BAA1

This multi-function panel meter is a compact process indicator designed to present current and HART signal values in control panels. It offers a clear numeric display suitable for monitoring analogue signal ranges and integrating with HART-enabled instrumentation in industrial installations.

Features and Benefits:

• 5-digit LCD display gives precise numeric resolution
• 17 mm digit height improves readability at a distance
• Measures 4 mA minimum providing sensitive low-end detection
• Accepts up to 20 mA for standard loop-current monitoring
• HART-compatible input allows digital protocol integration
• CE‑marked design conforms to common European regulatory expectations

Applications

• Suitable for front-panel monitoring of loop-powered transmitters
• Ideal for use in factory automation control cabinets
• Used with HART field devices for mixed analogue/digital displays
• Can be used for process control panels requiring clear numeric readouts

What cutout size is needed for panel installation?

The device requires a rectangular DIN-style cutout measuring 92 x 45 mm to fit flush into standard panels.

How deep is the unit behind the panel?

The instrument protrudes 41.5 mm into the enclosure, allowing planning for wiring space and clearance.

What ambient temperatures can it tolerate during operation?

It operates across a wide ambient range from -40 °C up to 60 °C for use in varied environments.

Which physical measurement does the display show?

The indicator presents current-based measurements and HART signal values as numeric readouts.
