Endress+Hauser RIA15 LCD Multi-Function Panel Meters, 7 mm x

RS 제품 번호:: 256-6197
Distrelec 제품 번호:: 303-51-233
제조사 부품 번호:: RIA15-AAB1
제조업체:: Endress+Hauser

Endress+Hauser RIA15 LCD Multi-Function Panel Meters, 7 mm x

Subtotal (1 unit)*

₩631,320.00

4 개 단위 배송 준비 완료
추가로 다른 지역에서 23 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩631,320.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 256-6197
Distrelec 제품 번호:: 303-51-233
제조사 부품 번호:: RIA15-AAB1
제조업체:: Endress+Hauser

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Endress+Hauser
	Product Type	Multi-Function Panel Meters
	Display Type	LCD
	Cutout Height	7mm
	Depth	55.5mm
	Number of Digits	5
	Digit Height	17mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	CE mark
	Series	RIA15

	모두 선택
	브랜드 Endress+Hauser
	Product Type Multi-Function Panel Meters
	Display Type LCD
	Cutout Height 7mm
	Depth 55.5mm
	Number of Digits 5
	Digit Height 17mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 60°C
	Standards/Approvals CE mark
	Series RIA15

COO (Country of Origin):: DE

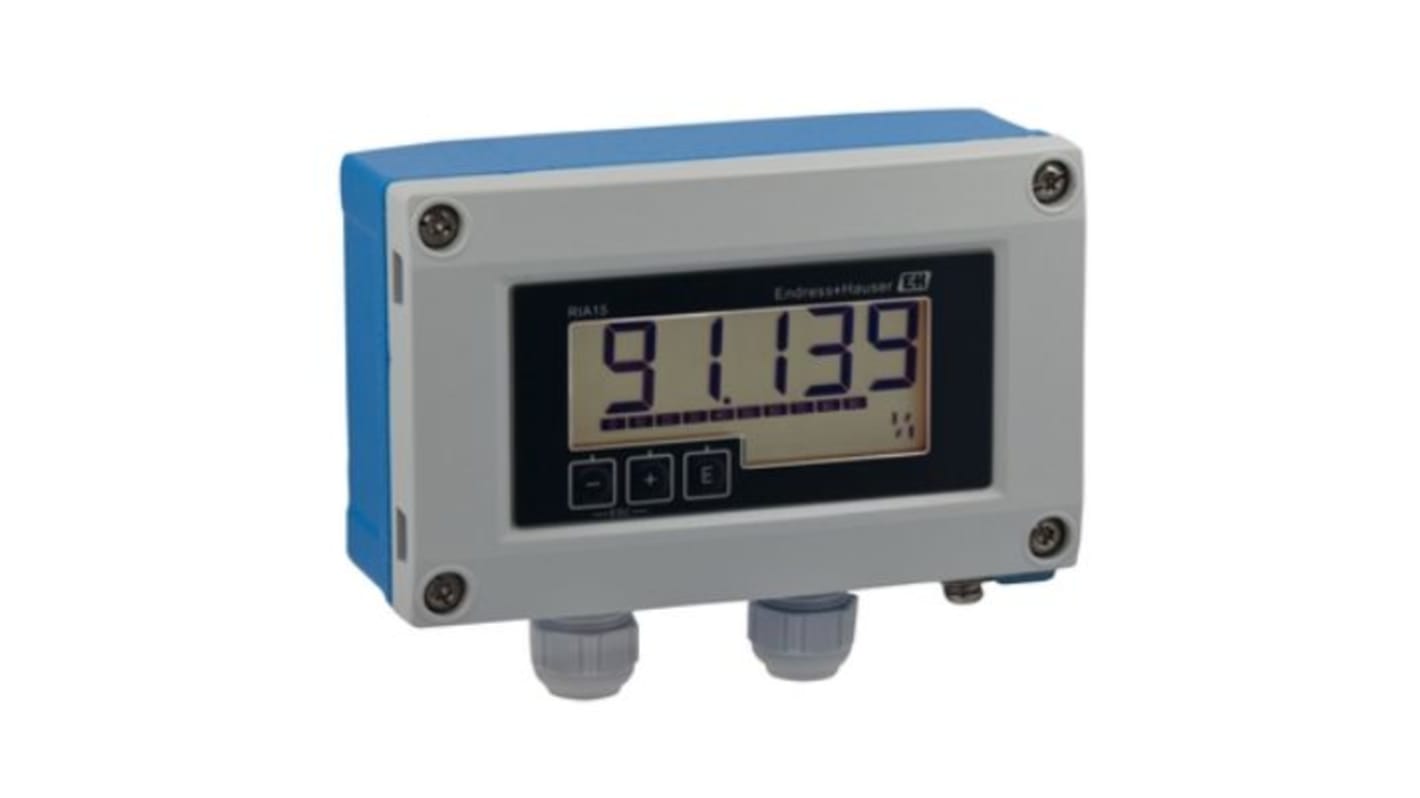

Endress+Hauser RIA15 Series Multi-Function Panel Meters, 55.5mm Depth, 5 Digits Number Of Digits - RIA15-AAB1

This multi-function panel meter is a process indicator designed to display loop current measurements in industrial control panels. It provides an at-a-glance numeric readout for monitoring 4-20 mA signals in process systems, suitable for installation into standard panel cutouts and operation across a broad ambient temperature range.

Features and Benefits:

• 5-digit LCD offers precise numeric resolution for accurate readings
• 17 mm digit height ensures legible values from a distance
• Measures 4 mA to 20 mA input range for standard current loops
• Operates between -40°C and 60°C for extreme environment compatibility
• CE marked for conformity with relevant European directives
• Compact 55.5 mm depth enables shallow-panel mounting

Applications

• Suitable for monitoring transmitter outputs in process plants
• Ideal for use in control cabinets requiring compact indicators
• Used for logging current-based sensor outputs in automation racks
• Can be used for retrofit upgrades of existing panel displays
• Used for local visual indication on distributed control systems

What display type is used and how many digits are shown?

It uses an LCD readout configured to present five digits, allowing fine granularity in current measurement.

What panel cutout size is required for mounting?

The unit requires a rectangular cutout measuring 92 mm by 45 mm for flush installation.

How does the instrument behave under temperature extremes?

The device maintains operational capability across a specified range from -40°C up to 60°C without degradation of display function.

Which electrical quantity does the meter measure?

It is intended to indicate electrical current in process loops, specifically accommodating industry-standard mA signals.

Are there any approvals relevant to compliance?

The instrument carries a CE mark indicating conformity with applicable European requirements.
