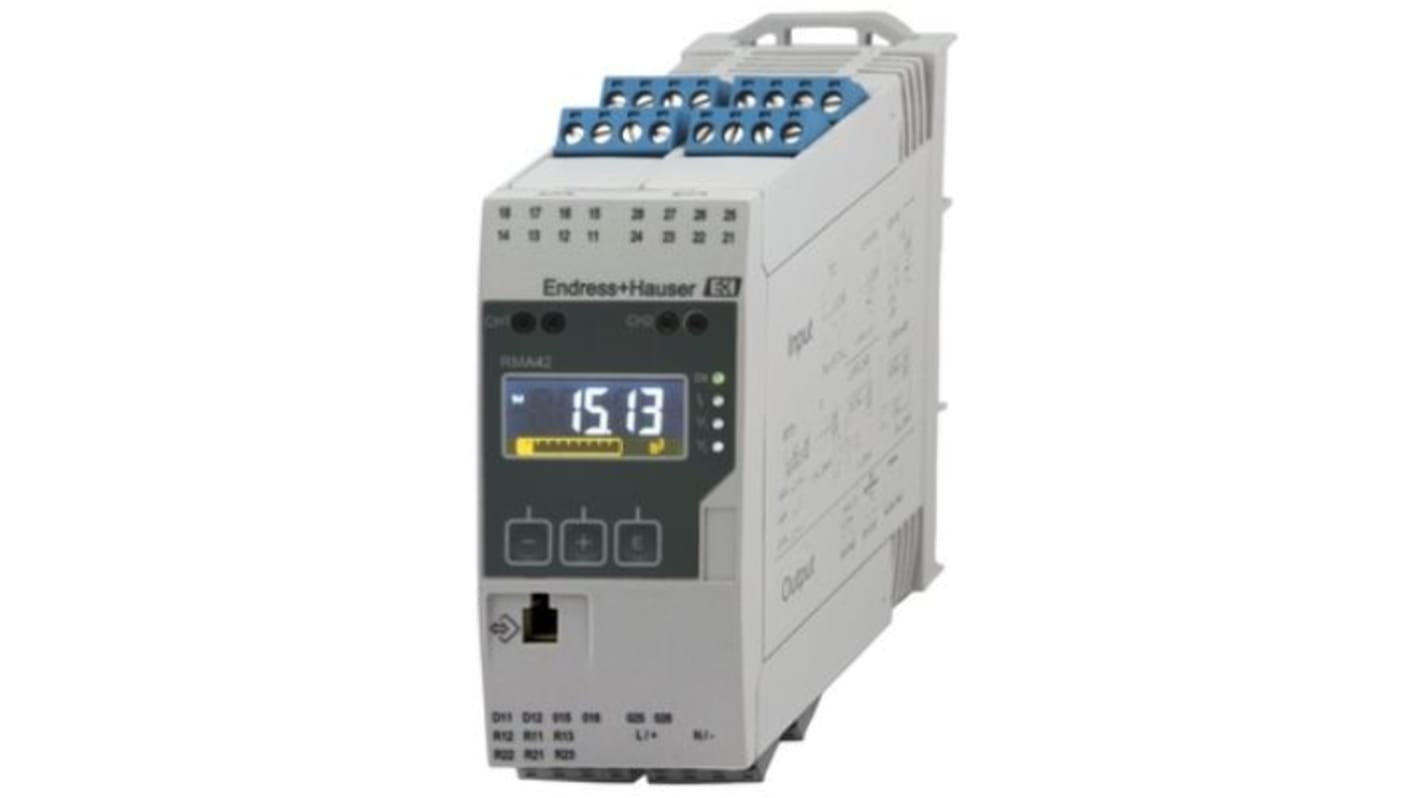

Endress+Hauser RMA42 LCD Digital Panel Multifunction Meter for Process Transmitter, 115 mm x 45 mm

RS 제품 번호:: 256-6203
Distrelec 제품 번호:: 303-51-239
제조사 부품 번호:: RMA42-AAC
제조업체:: Endress+Hauser

Endress+Hauser RMA42 LCD Digital Panel Multifunction Meter for Process Transmitter, 115 mm x 45 mm

Subtotal (1 unit)*

₩771,640.00

9 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩771,640.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 256-6203
Distrelec 제품 번호:: 303-51-239
제조사 부품 번호:: RMA42-AAC
제조업체:: Endress+Hauser

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Endress+Hauser
	Product Type	Digital Panel Multifunction Meter
	Properties Measured	Process Transmitter
	Display Type	LCD
	Cutout Height	115mm
	Depth	118mm
	Cutout Width	45mm
	Number of Digits	5
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	CE mark
	Meter Type	Process Indicator
	Series	RMA42

	모두 선택
	브랜드 Endress+Hauser
	Product Type Digital Panel Multifunction Meter
	Properties Measured Process Transmitter
	Display Type LCD
	Cutout Height 115mm
	Depth 118mm
	Cutout Width 45mm
	Number of Digits 5
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Standards/Approvals CE mark
	Meter Type Process Indicator
	Series RMA42

COO (Country of Origin):: DE

Endress+Hauser RMA42 Series Digital Panel Multifunction Meter, 5 Digit Display, Cutout 45mmx115mm - RMA42-AAC

This digital panel multifunction meter provides a compact panel-mounted indication solution for industrial process measurement. It displays instantaneous electrical parameters on an LCD and is intended for integration into control panels where monitoring of current, voltage and resistance is required. The instrument operates across a broad temperature range and carries recognised conformity marking for use within regulated installations.

Features and Benefits:

• 5-digit display for precise readout and fine resolution
• Measures 4mA to 20mA for standard loop monitoring
• Voltage range 10V to 30V for versatile signal inputs
• Resistance span 30Ω to 3000Ω for sensor and shunt checks
• LCD presentation for clear visibility in panel environments
• Operates from -20°C to 60°C for varied plant conditions

Applications

• Suitable for monitoring analogue 4-20mA process loops in control cabinets
• Ideal for checking sensor continuity and resistance networks on panels
• Used with low-voltage signal sources for voltage verification tasks
• Can be used for retrofit panel upgrades requiring a compact cut-out
• Suitable for industrial instrumentation racks requiring precise readouts

What panel aperture is required to mount the instrument?

The unit is designed to fit a 45x115 mm rectangular cut-out for flush panel mounting.

How many digits are shown and how does that affect resolution?

The indicator provides five digits, enabling finer discrimination of small signal changes for accurate process monitoring.

What approvals indicate suitability for regulated installations?

The product bears the CE mark, signifying conformity with applicable European directives for electrical equipment.

Which measured variables can be displayed simultaneously?

The device measures current, voltage and resistance

readout selection is via the meter’s input configuration and display control.

What depth should be allowed behind the panel for installation?

The instrument requires 118 mm of rear clearance to accommodate the housing and terminations.
