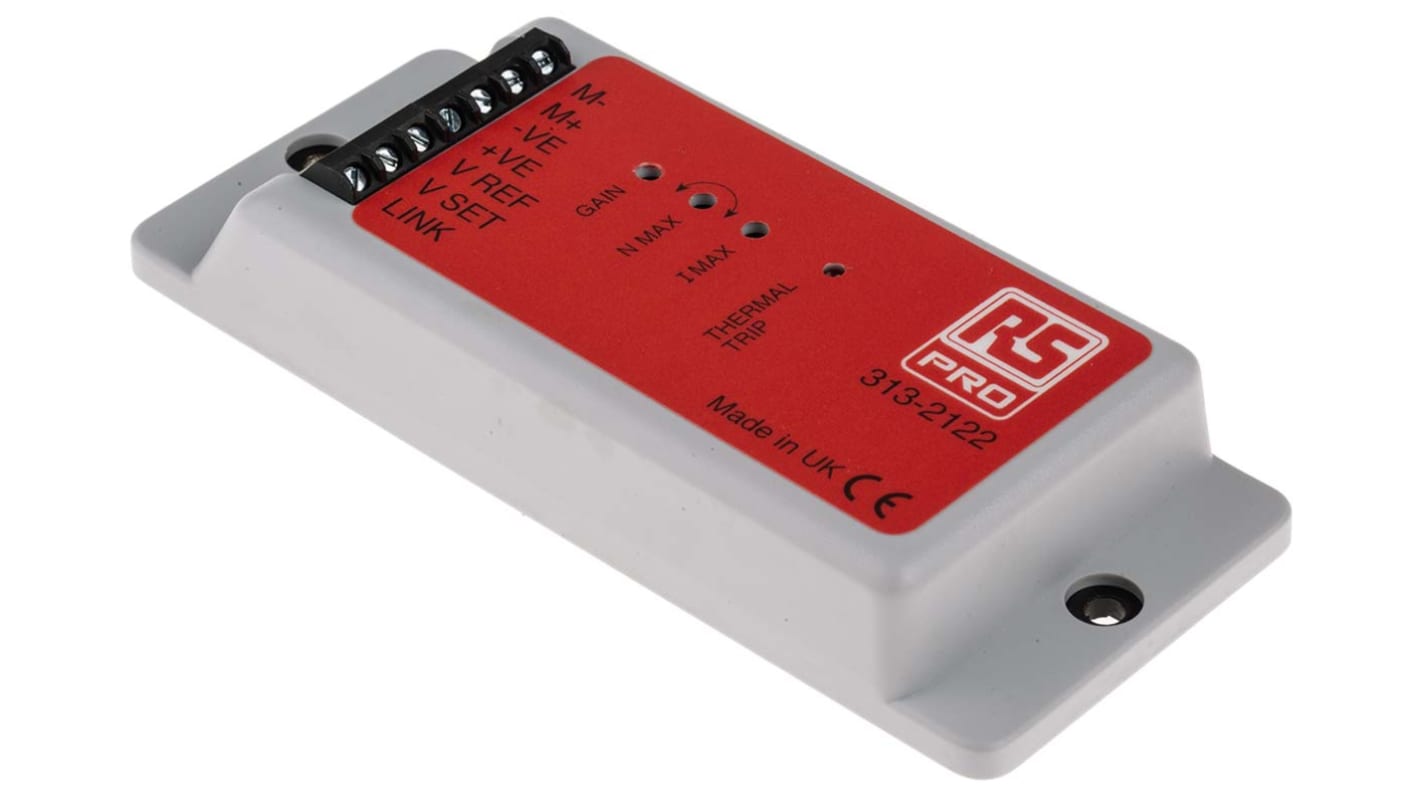

RS PRO DC Motor Controller, 10/35 V, 1 Phase, 2.2 A, Potentiometer Function

모든 Motor Controllers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩257,409.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 9 개 단위 배송 준비 완료
  • 추가로 2025년 12월 18일 부터 18 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
1 - 4₩257,409.60
5 +₩211,857.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
313-2122
Distrelec 제품 번호:
304-03-191
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Number of Phases

1

Product Type

DC Motor Controller

Control Function

Potentiometer

Supply Voltage

10/35 V

Output Voltage

27.5 V

Current Rating

2.2 A

Overall Length

133.5mm

Overall Width

54mm

Overall Depth

20 mm

Standards/Approvals

CE

Distrelec Product Id

30403191

제외

COO (Country of Origin):
GB

RS PRO, DC Motor Controller, Potentiometer, Voltage Control, 10 → 35 V, 2.2 A


These motor controllers from our trusted RS PRO range are designed for driving small DC and geared motors of up to 60 W. They're compatible with linear output motors and regulate their speed efficiently.

Unlike one-quadrant or two-quadrant controllers – or even a simple mechanical switch – these controllers have four quadrants. This means they can drive a motor in the opposite direction to its current velocity, giving you better control of deceleration. They also have a potentiometer and use a technique called 'armature feedback' to manage speed. They only require a single polarity voltage supply, whether you want to drive the motor in a clockwise or anti-clockwise direction. This means more control with less energy. For added safety and reliability, you can adjust the current limit to protect against short-circuits. The product also has in-built thermal safeguards to prevent overheating.

You'll find a DC motor controller in diverse applications from medical equipment, industrial automation and packaging manufacture.

Features and Benefits


• Potentiometer and voltage input control

• Supply voltage of 10 to 35 V DC

• Current rating of 2.2 A

• Compatible with linear output motors

• Voltage rating of 27.5 V

• Length of 133.5 mm

• Width of 54 mm

• Depth of 20 mm

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
