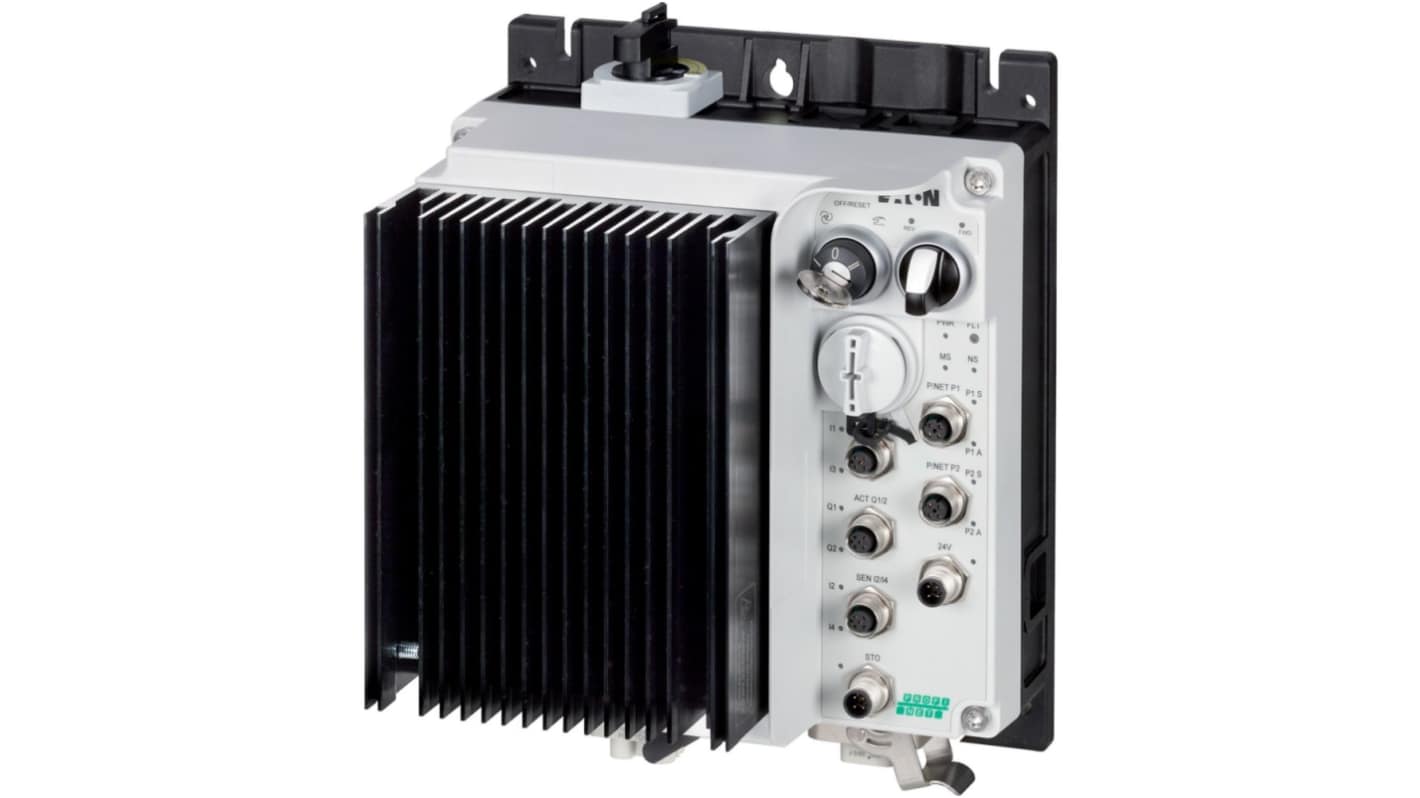

Eaton 2.2 kW, 400V ac, 480 V ac, 3 Phase, 5.6A Motor Controller, Speed Controller Function
- RS 제품 번호:
- 251-748
- 제조사 부품 번호:
- 199020 RASP5-5420PNT-412R010S1
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩4,296,620.00
제조사가 재고 비축중
- 2026년 10월 28일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩4,296,620.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 251-748
- 제조사 부품 번호:
- 199020 RASP5-5420PNT-412R010S1
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Number of Phases | 3 | |
| Product Type | Motor Controller | |
| Control Function | Speed Controller | |
| Output Voltage | 480V | |
| Supply Voltage | 400, 480V ac | |
| Current Rating | 5.6A | |
| Power Rating | 2.2kW | |
| Overall Length | 157mm | |
| Overall Width | 220mm | |
| Overall Depth | 270mm | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | IEC/EN 61800-5-1 RoHS UL 61800-5-1 CE UL approval | |
| Series | Moeller | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Number of Phases 3 | ||
Product Type Motor Controller | ||
Control Function Speed Controller | ||
Output Voltage 480V | ||
Supply Voltage 400, 480V ac | ||
Current Rating 5.6A | ||
Power Rating 2.2kW | ||
Overall Length 157mm | ||
Overall Width 220mm | ||
Overall Depth 270mm | ||
IP Rating IP65 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals IEC/EN 61800-5-1 RoHS UL 61800-5-1 CE UL approval | ||
Series Moeller | ||
제외
- COO (Country of Origin):
- GB
The Eaton Speed controller, designed for efficiency and precision, is an ideal choice for applications requiring reliable performance in demanding environments. Engineered with the latest technology, it caters to various motor types, ensuring smooth operations in both domestic and industrial settings.
Features adjustable braking torque for efficient stopping
Supports various motor types including synchronous reluctance and BLDC motors
Complies with RoHS directives ensuring environmental safety
Operates at remarkable efficiency achieving up to 98% in energy consumption
