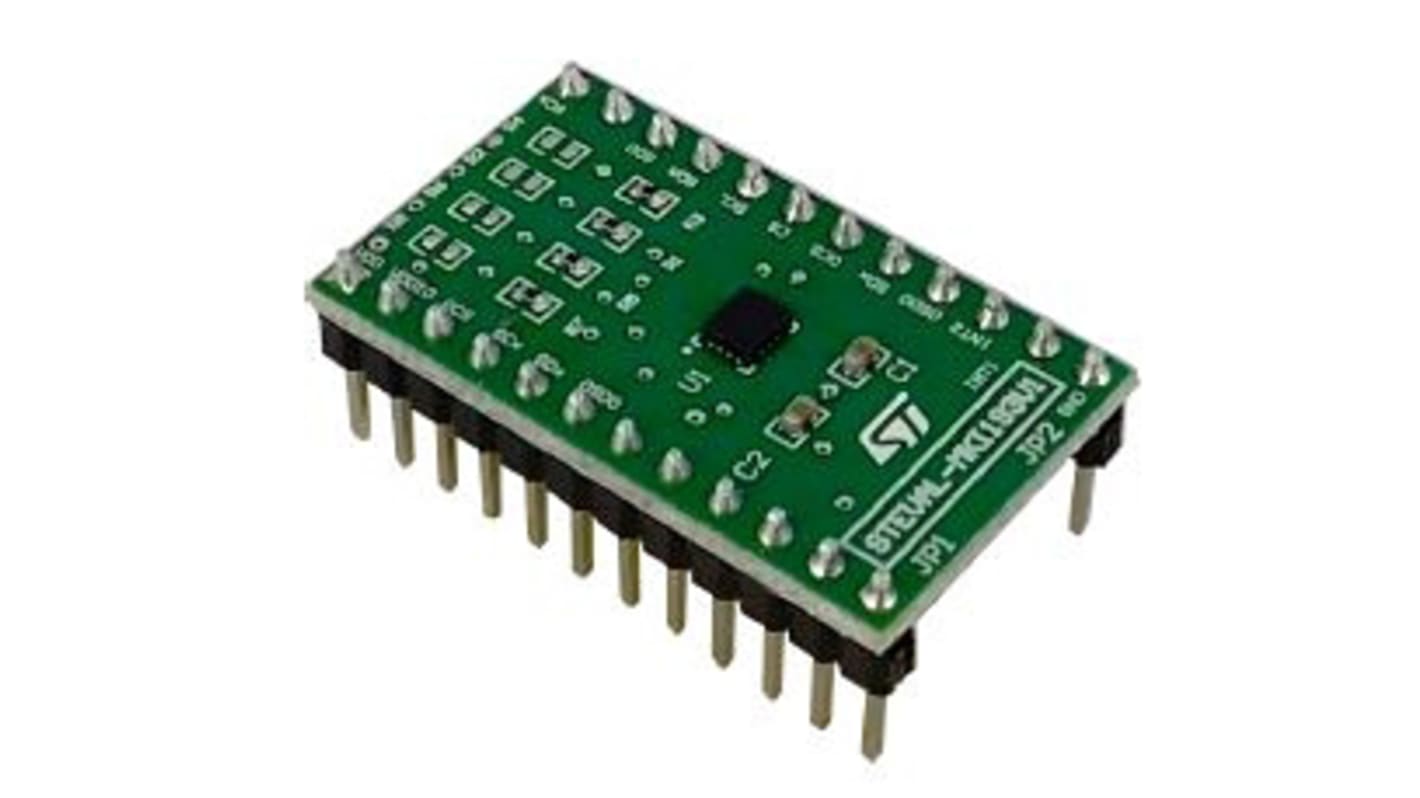

STMicroelectronics 6-Axis Surface Adapter Board, DIL-24, 24-Pin
- RS 제품 번호:
- 193-1118
- 제조사 부품 번호:
- STEVAL-MKI193V1
- 제조업체:
- STMicroelectronics
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩32,430.00
공급 부족
- 9 개 단위 배송 준비 완료
당사의 현재 재고는 제한중이며, 제조사측에서는 공급 부족을 예상하고 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩32,430.00 |
| 5 + | ₩31,790.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 193-1118
- 제조사 부품 번호:
- STEVAL-MKI193V1
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Adapter Board | |
| Number of Axis | 6 | |
| Technology | Motion Sensor | |
| Mount Type | Surface | |
| Package Type | DIL-24 | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 24 | |
| Maximum Operating Temperature | 85°C | |
| Series | ASM330LHH | |
| Standards/Approvals | WEEE, RoHS | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Adapter Board | ||
Number of Axis 6 | ||
Technology Motion Sensor | ||
Mount Type Surface | ||
Package Type DIL-24 | ||
Minimum Operating Temperature -40°C | ||
Pin Count 24 | ||
Maximum Operating Temperature 85°C | ||
Series ASM330LHH | ||
Standards/Approvals WEEE, RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- IT
The STEVAL-MKI193V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the ASM330LHH product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI193V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete ASM330LHH pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard with high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
Complete ASM330LHH pinout for a standard DIL 24 socket
Fully compatible with STEVAL-MKI109V3 motherboards
Changing the resistor settings is also compatible with the STEVAL-MKI109V2 motherboard
