ams OSRAM 1-Axis Surface Hall Effect Sensor 3 V 5.5 V, PWM, UVW, SPI, TSSOP, 14-Pin
- RS 제품 번호:
- 170-0756
- 제조사 부품 번호:
- AS5047D-ATSM
- 제조업체:
- ams OSRAM

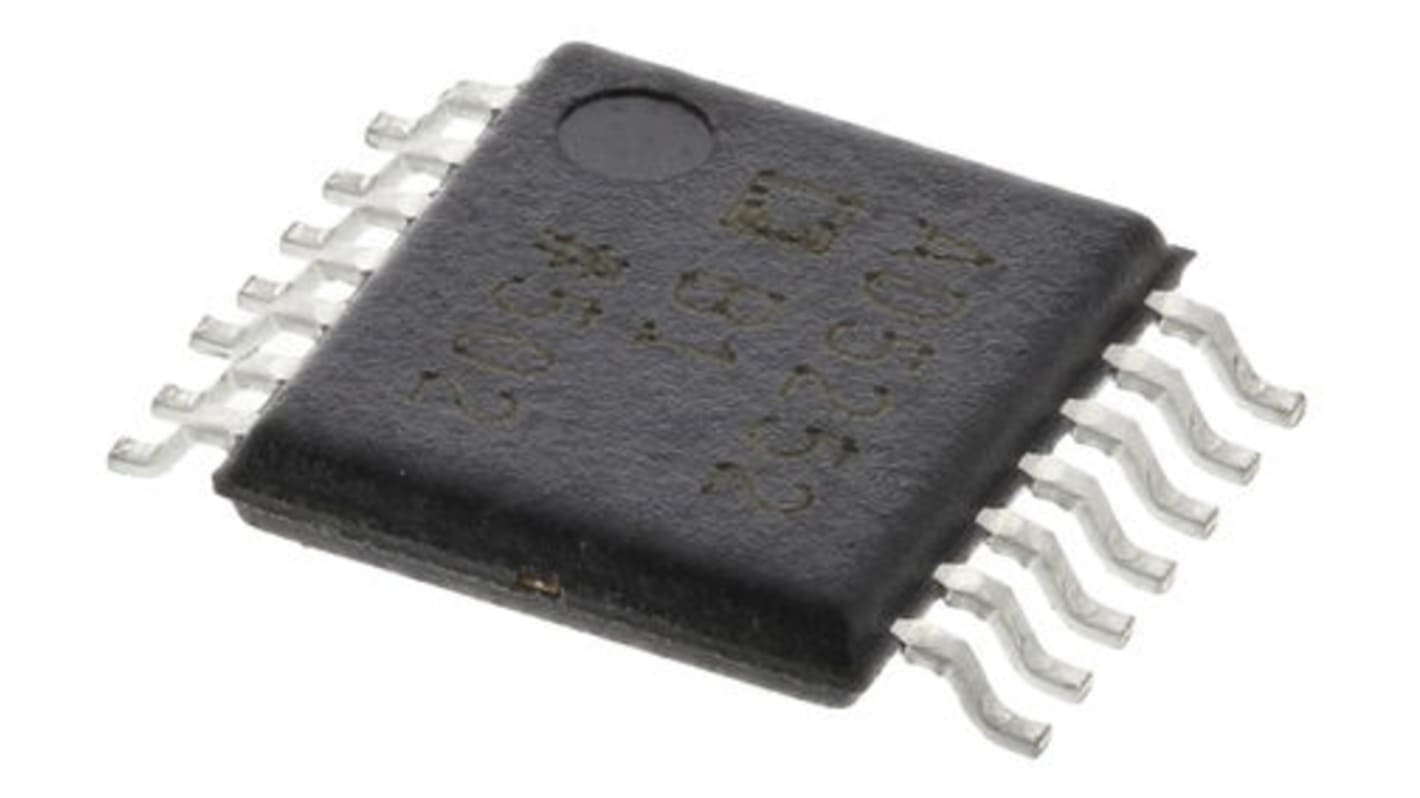

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 reel of 500 units)*
₩3,445,100.00
일시적 품절
- 2026년 6월 10일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 500 - 500 | ₩6,890.20 | ₩3,444,724.00 |
| 1000 - 1500 | ₩6,751.08 | ₩3,375,822.00 |
| 2000 + | ₩6,617.60 | ₩3,308,330.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 170-0756
- 제조사 부품 번호:
- AS5047D-ATSM
- 제조업체:
- ams OSRAM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ams OSRAM | |
| Product Type | Hall Effect Sensor | |
| Sensor Type | Hall Effect Sensors | |
| Number of Axis | 1 | |
| Technology | CMOS | |
| Mount Type | Surface | |
| Magnetic Type | Axis | |
| Interface Type | PWM, UVW, SPI | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | TSSOP | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 14 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | AEC-Q100-004, AEC-Q100-002, IPC/JEDEC J-STD-020 | |
| Series | AS5047D | |
| Length | 5.1mm | |
| Height | 1.05mm | |
| Width | 4.5 mm | |
| Response Time | 110μs | |
| Supply Current | 15mA | |
| Automotive Standard | AEC-Q100-004, AEC-Q100-002 | |
| 모두 선택 | ||
|---|---|---|
브랜드 ams OSRAM | ||
Product Type Hall Effect Sensor | ||
Sensor Type Hall Effect Sensors | ||
Number of Axis 1 | ||
Technology CMOS | ||
Mount Type Surface | ||
Magnetic Type Axis | ||
Interface Type PWM, UVW, SPI | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 5.5V | ||
Package Type TSSOP | ||
Minimum Operating Temperature -40°C | ||
Pin Count 14 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals AEC-Q100-004, AEC-Q100-002, IPC/JEDEC J-STD-020 | ||
Series AS5047D | ||
Length 5.1mm | ||
Height 1.05mm | ||
Width 4.5 mm | ||
Response Time 110μs | ||
Supply Current 15mA | ||
Automotive Standard AEC-Q100-004, AEC-Q100-002 | ||
- COO (Country of Origin):
- AT
AS5047D 14-bit Magnetic Rotary Position Sensor, ams AG
The AS5047D is a high-resolution rotary position sensor for fast absolute angle measurement over a full 360-degree range. The integrated circuit is a 14-bit on-axis magnetic rotary position sensor with 11-bit decimal and binary incremental Pulse count.
DAEC Dynamic Angle Error Compensation
14-bit core resolution
ABI programmable decimal and binary pulse-count: 500, 400, 300, 200, 100, 50, 25, 8, 512, 256 ppr (pulses per revolution)
Zero position, configuration programmable
Independent output interfaces: SPI, ABI, UVW, PWM
Position & Motion Sensors, ams AG
