ABB Monitoring Relay, 3 Phase, DPDT, DIN Rail, 500 V ac
- RS 제품 번호:
- 775-8043
- 제조사 부품 번호:
- 1SVR740794R3300 CM-PVS.41P
- 제조업체:
- ABB

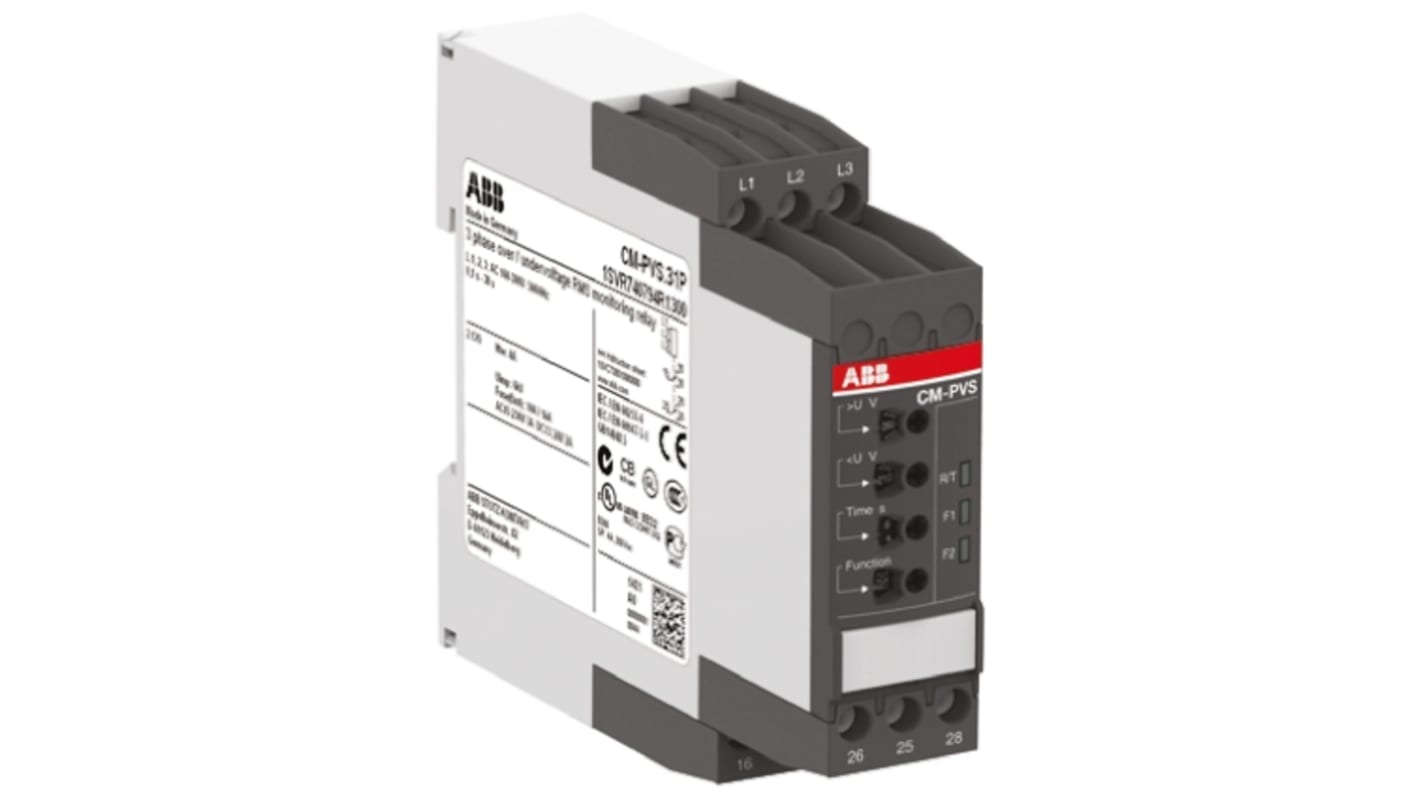

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩403,692.40
일시적 품절
- 2026년 6월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩403,692.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 775-8043
- 제조사 부품 번호:
- 1SVR740794R3300 CM-PVS.41P
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Power Consumption | 10VA | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 85.6mm | |
| Length | 103.7mm | |
| Series | CM-PVS | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Power Consumption 10VA | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Height 85.6mm | ||
Length 103.7mm | ||
Series CM-PVS | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
ABB Monitoring Relay, 3 Phases, 300 to 500V AC Voltage Sensing Range - CM-PVS Series - 1SVR740794R3300 CM-PVS.41P
Choose this monitoring relay from ABB to keep electrical hazards at bay. It monitors phase sequence and detects phase failure, undervoltage and overvoltage to help prevent damage to your devices. As it has a wide voltage sensing range of 300 to 500V AC, it's a versatile piece of kit. This component has a robust mechanical lifespan of 30 million cycles, so it doesn't fall short even with heavy-duty use. The push-in terminals click your wires into place without the need for tools, so you'll be hard-pressed to find a relay that's easier to install.
Features & Benefits
• Compact dimensions of 103.7 (L) x 22.5 (W) x 85.6mm (H) mean it's space-efficient
• Clips onto a DIN rail for speedy mounting
• Housing has an IP50 rating for protection against limited amounts of dust
• Light weight of 131g to place minimal strain on your equipment
Applications
• Medical centres
• Assembly plants
• Industrial power supplies
Can I use this assembly in harsh industrial conditions?
Yes. This component has a broad operating temperature range between -25°C and +60°C, so it's ideal for use in harsh industrial environments.
