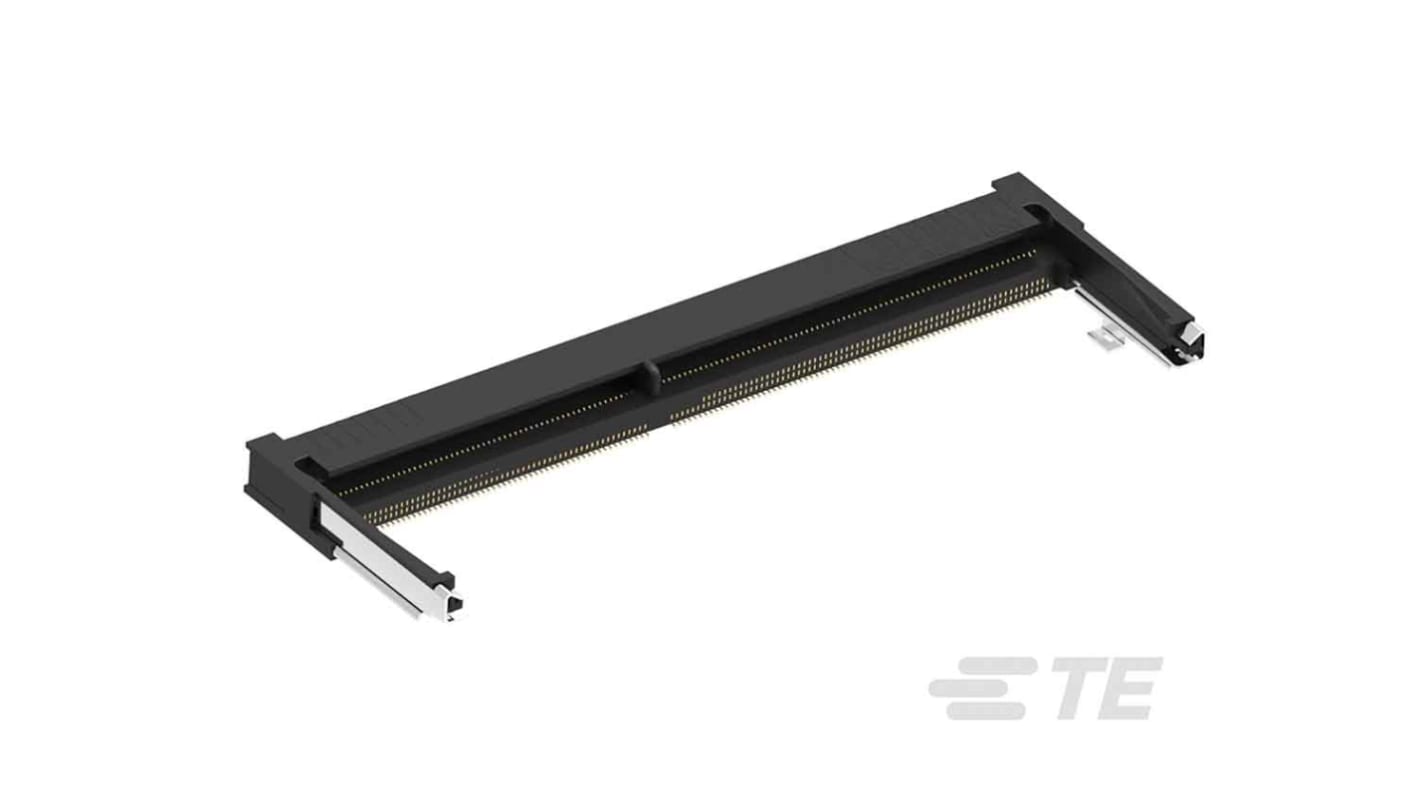

TE Connectivity 0.5 mm Pitch 260 Way, Right Angle Surface Mount Mount SO DIMM Socket ,25.0 V, 500mA
- RS 제품 번호:
- 185-5345
- Distrelec 제품 번호:
- 304-59-552
- 제조사 부품 번호:
- 2309410-1
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 reel of 400 units)*
₩676,800.00
일시적 품절
- 2026년 5월 08일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 400 - 400 | ₩1,692.00 | ₩676,800.00 |
| 800 - 1200 | ₩1,650.64 | ₩659,880.00 |
| 1600 + | ₩1,624.32 | ₩649,728.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 185-5345
- Distrelec 제품 번호:
- 304-59-552
- 제조사 부품 번호:
- 2309410-1
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | DIMM Socket | |
| Memory Socket Type | DIMM | |
| Insertion/Removal Method | Cam-In | |
| Orientation | Right Angle | |
| Contact Material | Copper Alloy | |
| Current | 500mA | |
| Contact Plating | Nickel Plated, Gold Flash | |
| Number of Contacts | 260 | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Housing Material | Thermoplastic | |
| SDRAM Type | SO | |
| Latching | Yes | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 85°C | |
| Row Spacing | 8.2mm | |
| Maximum Operating Temperature | 85°C | |
| Maximum Contact Resistance | 50mΩ | |
| Standards/Approvals | RoHS | |
| Series | 2309410 | |
| Voltage | 25.0 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type DIMM Socket | ||
Memory Socket Type DIMM | ||
Insertion/Removal Method Cam-In | ||
Orientation Right Angle | ||
Contact Material Copper Alloy | ||
Current 500mA | ||
Contact Plating Nickel Plated, Gold Flash | ||
Number of Contacts 260 | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Housing Material Thermoplastic | ||
SDRAM Type SO | ||
Latching Yes | ||
Termination Type Solder | ||
Minimum Operating Temperature 85°C | ||
Row Spacing 8.2mm | ||
Maximum Operating Temperature 85°C | ||
Maximum Contact Resistance 50mΩ | ||
Standards/Approvals RoHS | ||
Series 2309410 | ||
Voltage 25.0 V | ||
TE Connectivity’s (TE) main memory connectors are made to JEDEC industry standards for dual in-line memory modules (DIMM) and small outline DIMM (SO DIMM) as well as custom memory modules for server, workstation, desktop, notebook, storage and communication applications. Our memory socket portfolio covers the DDR2, DDR3, and DDR4 generations of sockets. Each product family consists of vertical and a few right-angle and various-angled configurations in solder tail and surface mount (SMT) mounting options.
Designed to JEDEC industry standards for new and existing DIMM memory modules
Provide end latches for module retention, ejection and mechanical voltage keying
SO DIMM sockets are offered in several stacking heights to maximize board space
Applications
Servers
High Performance Computing (HPC)
Workstations
Mass storages
Communication equipment
Desktop PCs
Instrument equipment
