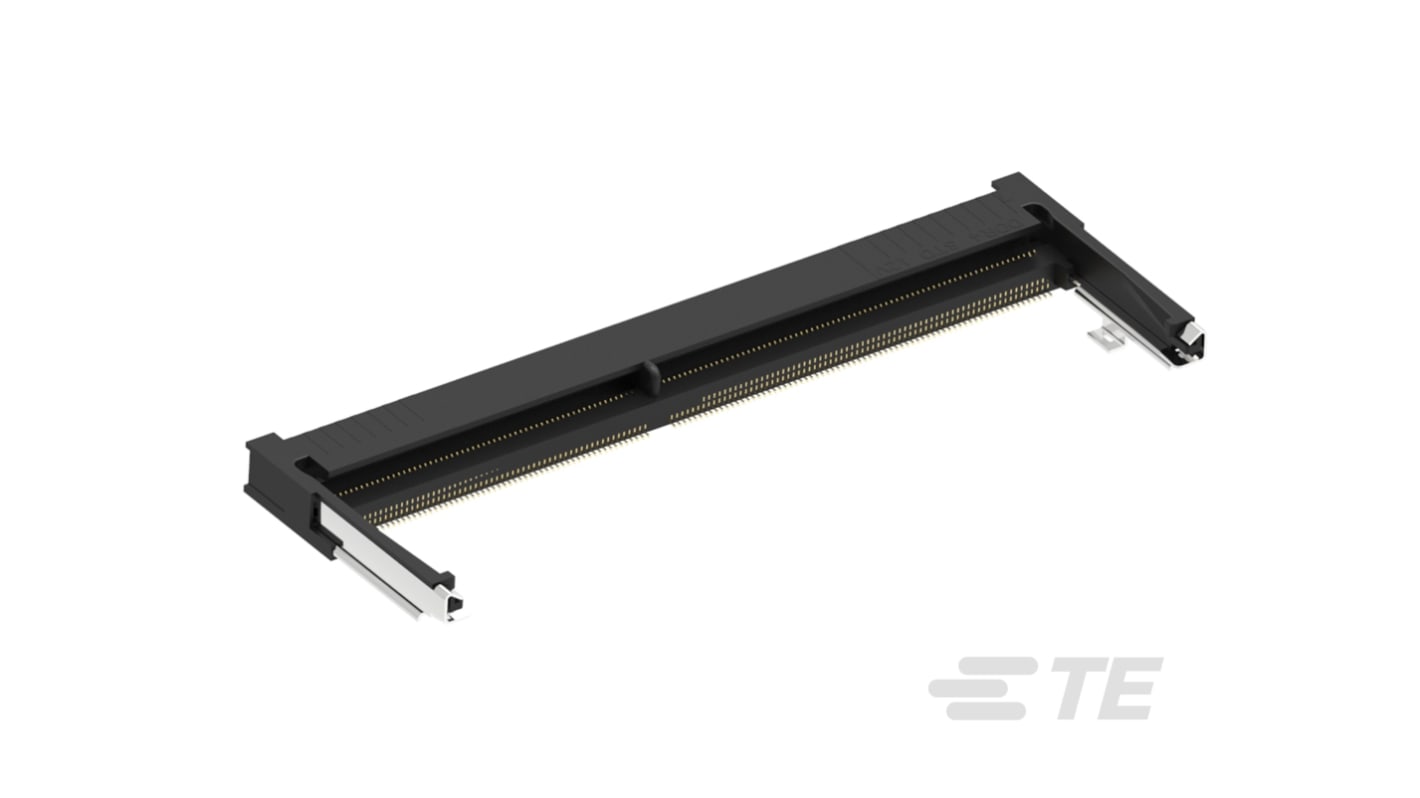

TE Connectivity 0.5 mm Pitch 260 Way, Right Angle Board Mount DIMM Socket ,1.2 V, 5A
- RS 제품 번호:
- 255-7464
- 제조사 부품 번호:
- 2309409-2
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 reel of 400 units)*
₩737,712.00
재고있음
- 4,000 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 400 + | ₩1,844.28 | ₩737,561.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 255-7464
- 제조사 부품 번호:
- 2309409-2
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | DIMM Socket | |
| Memory Socket Type | DIMM | |
| Insertion/Removal Method | Cam-In | |
| Orientation | Right Angle | |
| Current | 5A | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Flash | |
| Number of Contacts | 260 | |
| Pitch | 0.5mm | |
| Mount Type | Board | |
| Housing Material | High Temperature Thermoplastic | |
| Minimum Operating Temperature | -55°C | |
| Latching | Yes | |
| Row Spacing | 8.2mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant | |
| Maximum Contact Resistance | 50mΩ | |
| Voltage | 1.2 V | |
| Series | DDR4 SO DIMM SOCKETS | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type DIMM Socket | ||
Memory Socket Type DIMM | ||
Insertion/Removal Method Cam-In | ||
Orientation Right Angle | ||
Current 5A | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Flash | ||
Number of Contacts 260 | ||
Pitch 0.5mm | ||
Mount Type Board | ||
Housing Material High Temperature Thermoplastic | ||
Minimum Operating Temperature -55°C | ||
Latching Yes | ||
Row Spacing 8.2mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant | ||
Maximum Contact Resistance 50mΩ | ||
Voltage 1.2 V | ||
Series DDR4 SO DIMM SOCKETS | ||
- COO (Country of Origin):
- CN
The TE Connectivity small outline dual inline memory module (SO DIMM) socket can enable reliable connection to standard memory modules. SO DIMM sockets are designed for the latest DDR4, as well as previous versions DDR3, DDR2, DDR, and SDRAM memory modules.
Double date rate(DDR)
Cable-to-Board connector system
Standard connector profile
Locking type ejector
