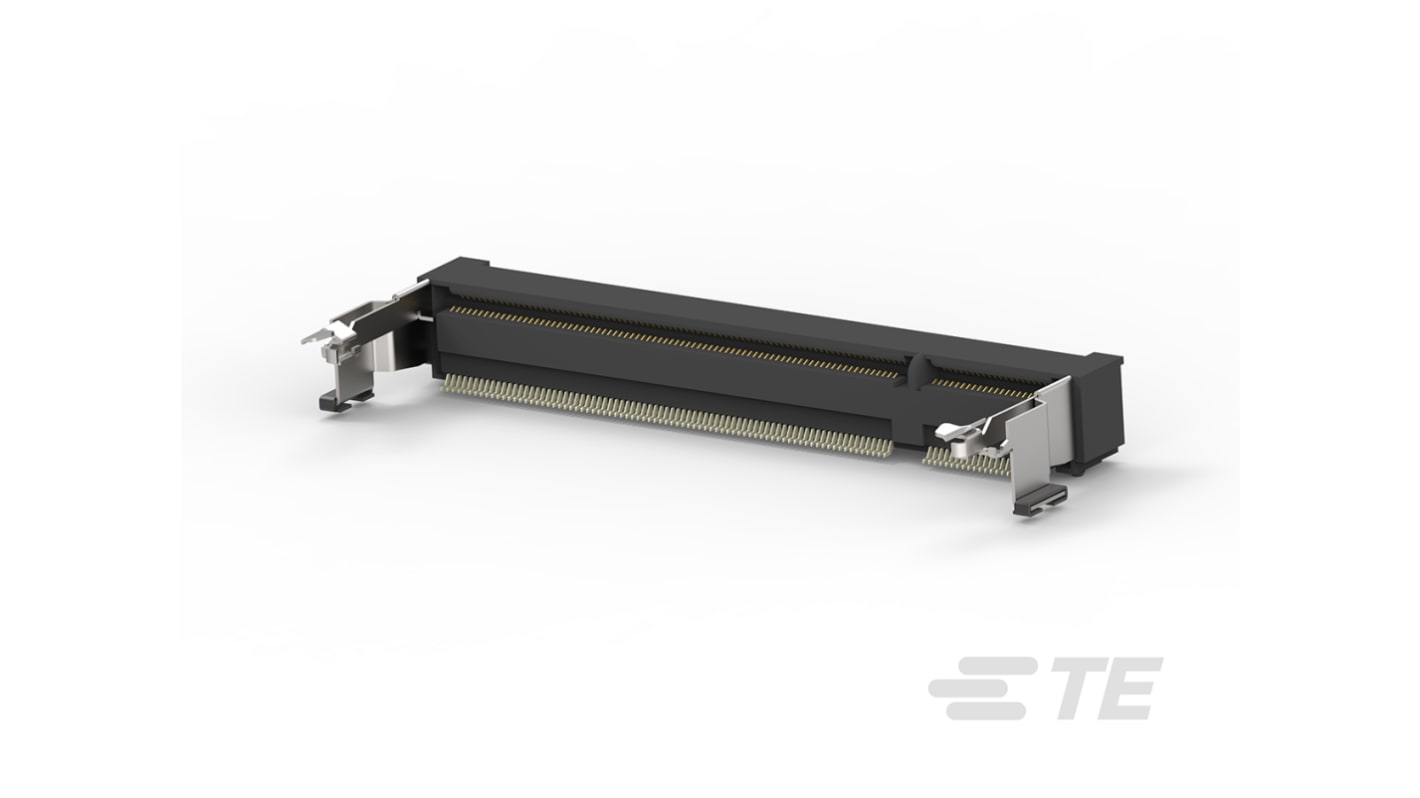

TE Connectivity 0.6 mm Pitch 200 Way, Right Angle Surface Mount Mount SO DIMM Socket ,2.5 V, 500mA
- RS 제품 번호:
- 186-4925
- 제조사 부품 번호:
- 1612618-1
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 2 units)*
₩21,338.00
일시적 품절
- 2026년 4월 10일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 2 - 4 | ₩10,669.00 | ₩21,338.00 |
| 6 - 8 | ₩10,434.00 | ₩20,868.00 |
| 10 + | ₩10,208.40 | ₩20,416.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 186-4925
- 제조사 부품 번호:
- 1612618-1
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Memory Socket Type | DIMM | |
| Product Type | DIMM Socket | |
| Orientation | Right Angle | |
| Insertion/Removal Method | Cam-In | |
| Current | 500mA | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Flash | |
| Number of Contacts | 200 | |
| Pitch | 0.6mm | |
| Mount Type | Surface Mount | |
| Housing Material | Thermoplastic | |
| SDRAM Type | SO | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Latching | Yes | |
| Row Spacing | 6.2mm | |
| Maximum Operating Temperature | 85°C | |
| Maximum Contact Resistance | 30mΩ | |
| Standards/Approvals | No | |
| Voltage | 2.5 V | |
| Series | 1612618 | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Memory Socket Type DIMM | ||
Product Type DIMM Socket | ||
Orientation Right Angle | ||
Insertion/Removal Method Cam-In | ||
Current 500mA | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Flash | ||
Number of Contacts 200 | ||
Pitch 0.6mm | ||
Mount Type Surface Mount | ||
Housing Material Thermoplastic | ||
SDRAM Type SO | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Latching Yes | ||
Row Spacing 6.2mm | ||
Maximum Operating Temperature 85°C | ||
Maximum Contact Resistance 30mΩ | ||
Standards/Approvals No | ||
Voltage 2.5 V | ||
Series 1612618 | ||
- COO (Country of Origin):
- CN
TE Connectivity 1612618-1
DRAM Type=Double Data Rate (DDR), Connector System=Cable-to-Board, Profile=Ultra High, Row-to-Row Spacing=6.2 mm, Sealable=No, Center Key=None, Module Orientation=Right Angle, Number of Positions=200, Number of Rows=2, Keying=Standard, DRAM Voltage=2.5 V, SGRAM Voltage=2.5 V, Ejector Type=Locking, Contact Base Material=Copper Alloy, Contact Mating Area Plating Material=Gold Flash, Contact Current Rating (Max)=.5 A, Socket Type=Memory Card, Insertion Style=Cam-In, PCB Mount Retention Type=Solder Peg, PCB Mounting Style=Surface Mount, Connector Mounting Type=Board Mount, Centerline (Pitch)=.6 mm, Housing Color=Black, Stack Height=9.2 mm, Operating Temperature Range=-55 – 85 °C, Circuit Application=Power, UL Flammability Rating=UL 94V-0, Packaging Method=Semi-Hard Tray Assembly, Packaging Quantity=20, Comment=Semi-Hard Tray with 20 sockets PN 1279284-1
