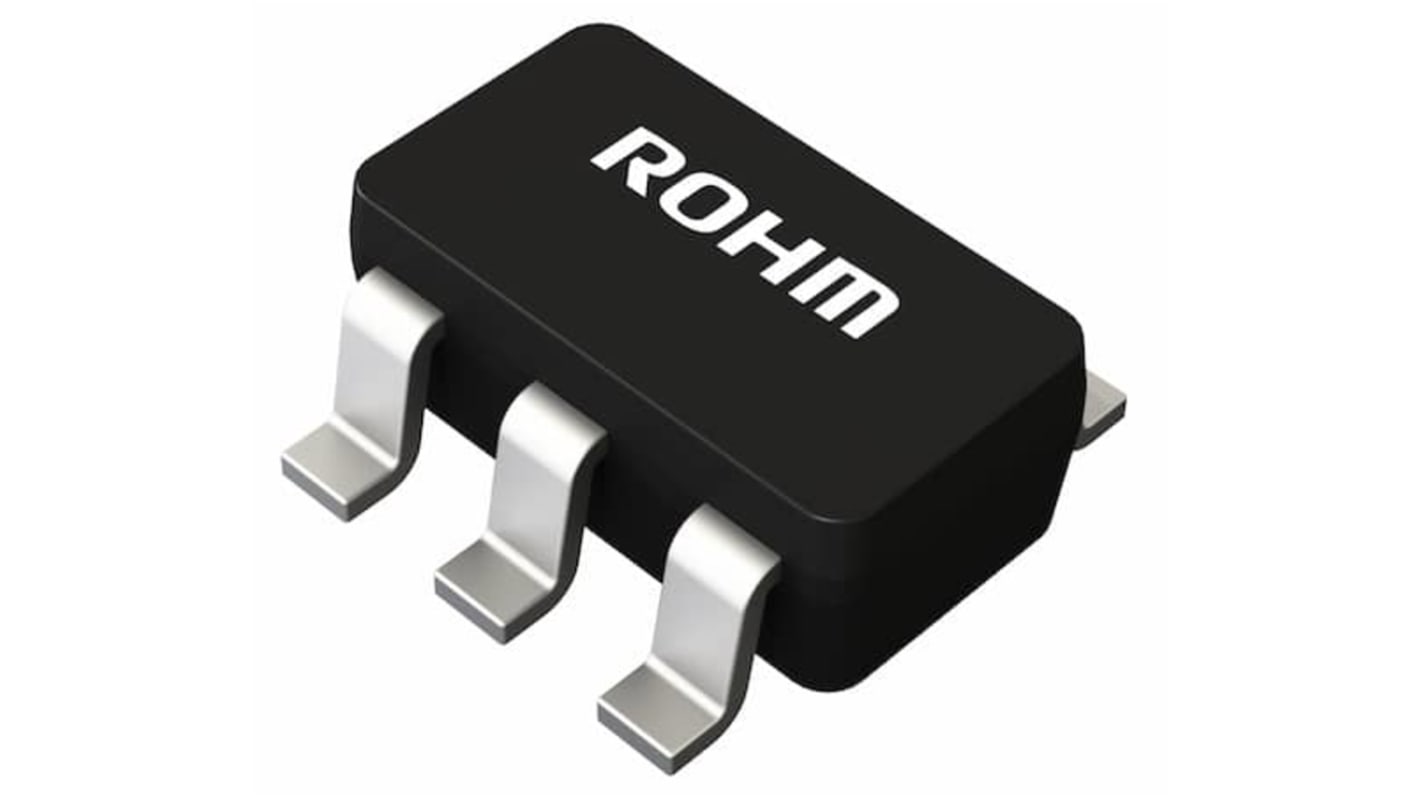

ROHM, 1 1-Input CMOS Schmitt Trigger Input Logic Gate, 6-Pin SSOP-6
- RS 제품 번호:
- 255-7684
- 제조사 부품 번호:
- BD7LS97G-CTL
- 제조업체:
- ROHM
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 255-7684
- 제조사 부품 번호:
- BD7LS97G-CTL
- 제조업체:
- ROHM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ROHM | |
| Product Type | Logic Gate | |
| Logic Function | CMOS | |
| Mount Type | Surface | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 1 | |
| Schmitt Trigger Input | Yes | |
| Package Type | SSOP-6 | |
| Pin Count | 6 | |
| Maximum Propagation Delay Time @ CL | 14ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -100μA | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 2.9mm | |
| Height | 1.25mm | |
| Maximum Supply Voltage | 5.5V | |
| Width | 2.8 mm | |
| Minimum Supply Voltage | 1.65V | |
| Series | BD7LS97G | |
| Maximum Low Level Output Current | 100μA | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 ROHM | ||
Product Type Logic Gate | ||
Logic Function CMOS | ||
Mount Type Surface | ||
Number of Elements 1 | ||
Number of Inputs per Gate 1 | ||
Schmitt Trigger Input Yes | ||
Package Type SSOP-6 | ||
Pin Count 6 | ||
Maximum Propagation Delay Time @ CL 14ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -100μA | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 2.9mm | ||
Height 1.25mm | ||
Maximum Supply Voltage 5.5V | ||
Width 2.8 mm | ||
Minimum Supply Voltage 1.65V | ||
Series BD7LS97G | ||
Maximum Low Level Output Current 100μA | ||
Automotive Standard AEC-Q100 | ||
The ROHM Automotive configurable function gate and qualified for automotive applications. The 3-inputs are schmitt trigger inputs and it is possible to configure the Logical function by setting the input pins. This is designed for 1.65 V to 5.5 V power supply voltage operation. When it is power down, the output tolerant circuit protects the output circuit from the back flow current through the connected system.
AEC-Q100 qualified(note 1), 4000 V human-body model, 1000 V charged-device model
Low power consumption
5.5 V tolerant inputs
Output tolerant supports partial power down mode operation
