ROHM BD7LS02G-CTL 2-Input NOR Quad 2 Input NOR, 5-Pin SSOP-5

RS 제품 번호:: 246-3832
제조사 부품 번호:: BD7LS02G-CTL
제조업체:: ROHM

ROHM BD7LS02G-CTL 2-Input NOR Quad 2 Input NOR, 5-Pin SSOP-5

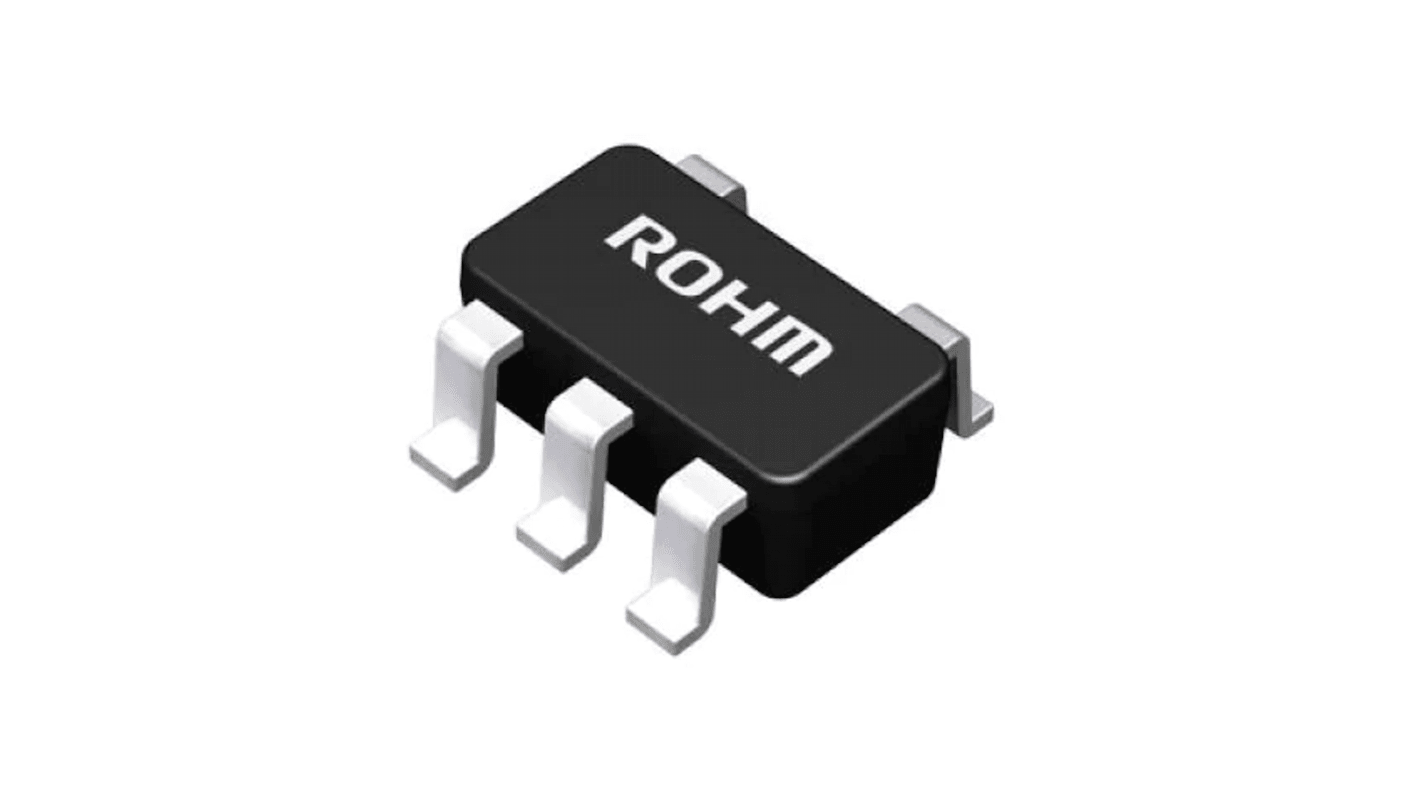

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 246-3832
제조사 부품 번호:: BD7LS02G-CTL
제조업체:: ROHM

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ROHM
	Logic Function	NOR
	Product Type	Quad 2 Input NOR
	Mount Type	Surface, Through Hole
	Number of Inputs per Gate	2
	Package Type	SSOP-5
	Pin Count	5
	Logic Family	CMOS
	Maximum Propagation Delay Time @ CL	12ns
	Minimum Operating Temperature	-40°C
	Maximum High Level Output Current	-100μA
	Maximum Operating Temperature	125°C
	Minimum Supply Voltage	1.65V
	Standards/Approvals	No
	Maximum Supply Voltage	5.5V
	Series	BD7LS02G-C
	Width	2.8 mm
	Length	2.9mm
	Height	1.25mm
	Maximum Low Level Output Current	100μA
	Automotive Standard	AEC-Q100

	모두 선택
	브랜드 ROHM
	Logic Function NOR
	Product Type Quad 2 Input NOR
	Mount Type Surface, Through Hole
	Number of Inputs per Gate 2
	Package Type SSOP-5
	Pin Count 5
	Logic Family CMOS
	Maximum Propagation Delay Time @ CL 12ns
	Minimum Operating Temperature -40°C
	Maximum High Level Output Current -100μA
	Maximum Operating Temperature 125°C
	Minimum Supply Voltage 1.65V
	Standards/Approvals No
	Maximum Supply Voltage 5.5V
	Series BD7LS02G-C
	Width 2.8 mm
	Length 2.9mm
	Height 1.25mm
	Maximum Low Level Output Current 100μA
	Automotive Standard AEC-Q100

Datasheet - BD7LS02G-CTL

The ROHM automotive single two-input NOR gate which works at voltage range of 1.65 V to 5.5 V, operating temperature range of -40 °C to +125 °C, available in SSOP5 package and can be used in automotive applications.

AEC-Q100 qualified

Low power consumption

5.5 V tolerant inputs

Output tolerant supports partial power down mode operation

Package SSOP5 is similar to SOT-23-5(JEDEC)

ROHM BD7LS02G-CTL 2-Input NOR Quad 2 Input NOR, 5-Pin SSOP-5
