Nexperia, 1 2-Input OR Schmitt Trigger Input Logic Gate, 5-Pin TSSOP

RS 제품 번호:: 165-9930
제조사 부품 번호:: 74AUP1G32GW,125
제조업체:: Nexperia

Nexperia, 1 2-Input OR Schmitt Trigger Input Logic Gate, 5-Pin TSSOP

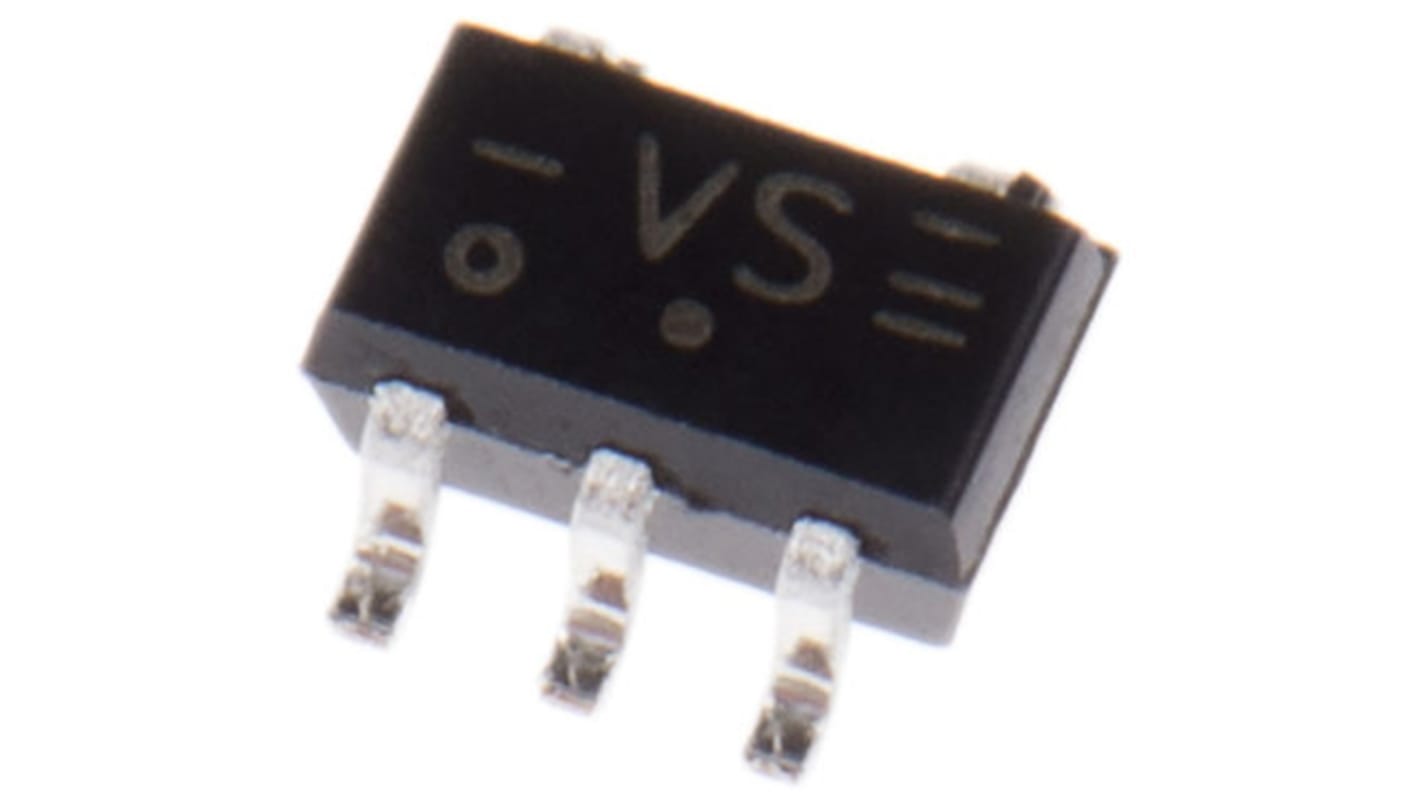

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 reel of 3000 units)*

₩383,520.00

재고있음

9,000 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
3000 - 3000	₩127.84	₩381,264.00
6000 - 9000	₩124.08	₩373,932.00
12000 +	₩122.20	₩366,036.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 165-9930
제조사 부품 번호:: 74AUP1G32GW,125
제조업체:: Nexperia

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Nexperia
	Logic Function	OR
	Product Type	Logic Gate
	Mount Type	Surface
	Number of Elements	1
	Number of Inputs per Gate	2
	Schmitt Trigger Input	Yes
	Package Type	TSSOP
	Pin Count	5
	Logic Family	AUP
	Input Type	Schmitt Trigger
	Maximum Propagation Delay Time @ CL	8.5ns
	Minimum Operating Temperature	-40°C
	Maximum High Level Output Current	-4mA
	Maximum Operating Temperature	125°C
	Minimum Supply Voltage	0.8V
	Width	1.35 mm
	Series	74AUP1G
	Maximum Supply Voltage	3.6V
	Standards/Approvals	No
	Height	1mm
	Length	2.25mm
	Maximum Low Level Output Current	4mA
	Automotive Standard	No
	Output Type	Single Ended

	모두 선택
	브랜드 Nexperia
	Logic Function OR
	Product Type Logic Gate
	Mount Type Surface
	Number of Elements 1
	Number of Inputs per Gate 2
	Schmitt Trigger Input Yes
	Package Type TSSOP
	Pin Count 5
	Logic Family AUP
	Input Type Schmitt Trigger
	Maximum Propagation Delay Time @ CL 8.5ns
	Minimum Operating Temperature -40°C
	Maximum High Level Output Current -4mA
	Maximum Operating Temperature 125°C
	Minimum Supply Voltage 0.8V
	Width 1.35 mm
	Series 74AUP1G
	Maximum Supply Voltage 3.6V
	Standards/Approvals No
	Height 1mm
	Length 2.25mm
	Maximum Low Level Output Current 4mA
	Automotive Standard No
	Output Type Single Ended

COO (Country of Origin):: MY

74AUP1G/74AUP2G/74AUP1T Family, Nexperia

74AUP Family

Industry-standard Advanced Ultra-low Power (AUP) logic family products for ultra-low power consumption, small footprint logic solutions for use in 1.8 V and mixed 1.8 V / 3.3 V circuit applications. The AUP logic family offers the following features:

Wide supply voltage range: 0.8 to 3.6V

Schmitt-trigger inputs for high noise immunity

Very low dynamic power dissipation

Enhanced ESD protection

Speed/power optimization
