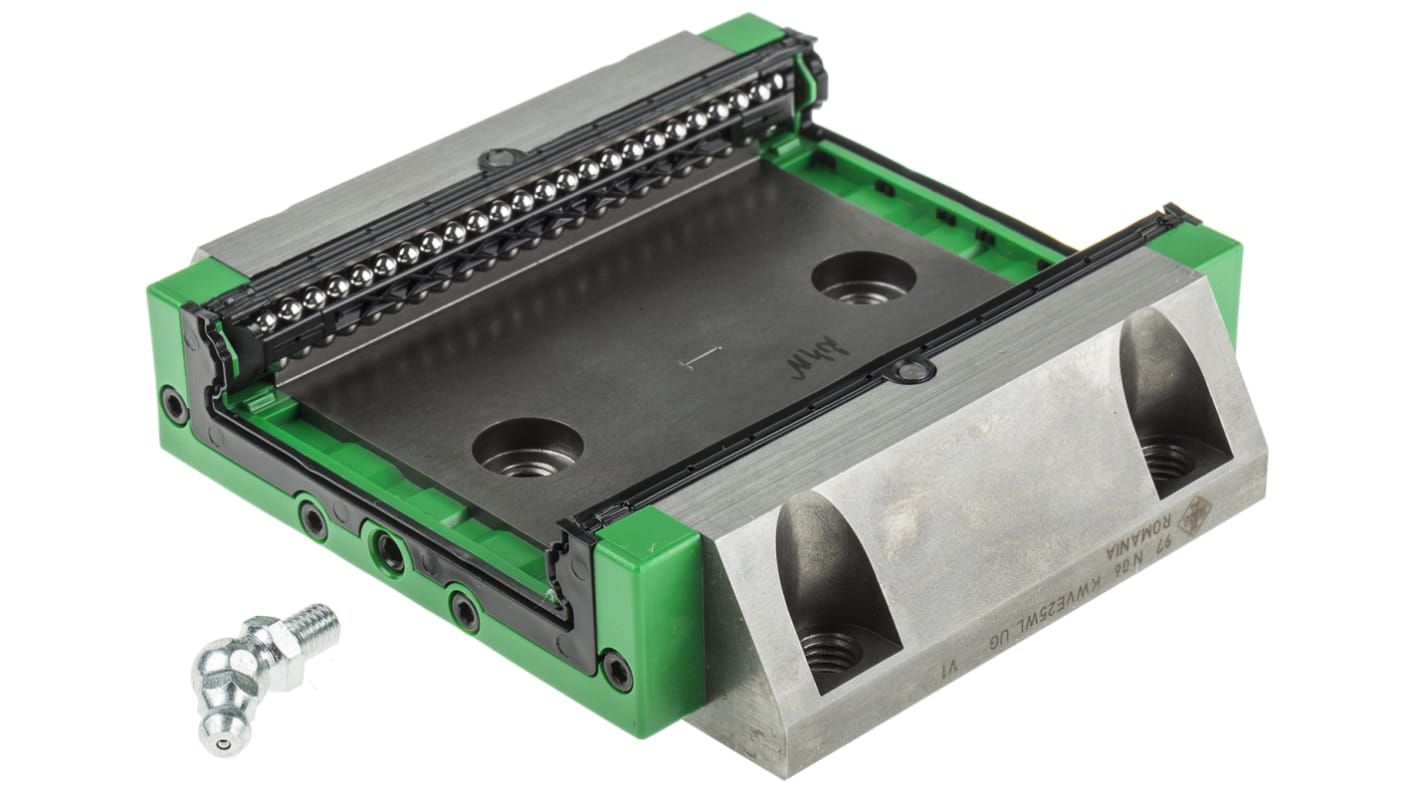

INA Linear Guide Carriage KWVE25, 23400N Dynamic Load, 69mm Rail Width

모든 Linear Guide Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩423,714.40

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 - 4₩423,714.40
5 +₩414,814.48

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
172-1064
제조사 부품 번호:
KWVE25-WL-UG-V1-G3
제조업체:
INA
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

INA

Manufacturer Series

KWVE25

For Rail Width

69mm

Carriage Length

107.5mm

Carriage Width

120mm

Dynamic Load Rating

23400N

Static Load Rating

54000N

Four-row linear recirculating ball bearing and guideway assemblies represent the most extensive and complex group within the range of monorail guidance systems. They are used where linear guidance systems with high load carrying capacity and rigidity must move heavy loads with high running and positional accuracy as well as low friction. The guidance systems are preloaded and are suitable for long, unlimited stroke lengths. Depending on the operating conditions, accelerations up to 150 m/s2 and speeds up to 360 m/min are possible.

Full complement
With Quad-Spacers
Load carrying capacity
Carriages
Guideways
Located from above or below
With helical teeth
Slot for covering strip
Multi-piece guideways
Sealing
Lubrication
Operating temperature
Standard accessories
Plastic dummy guideway
Plastic closing plugs
Lubrication connectors
Corrosion-resistant designs
Suffixes
