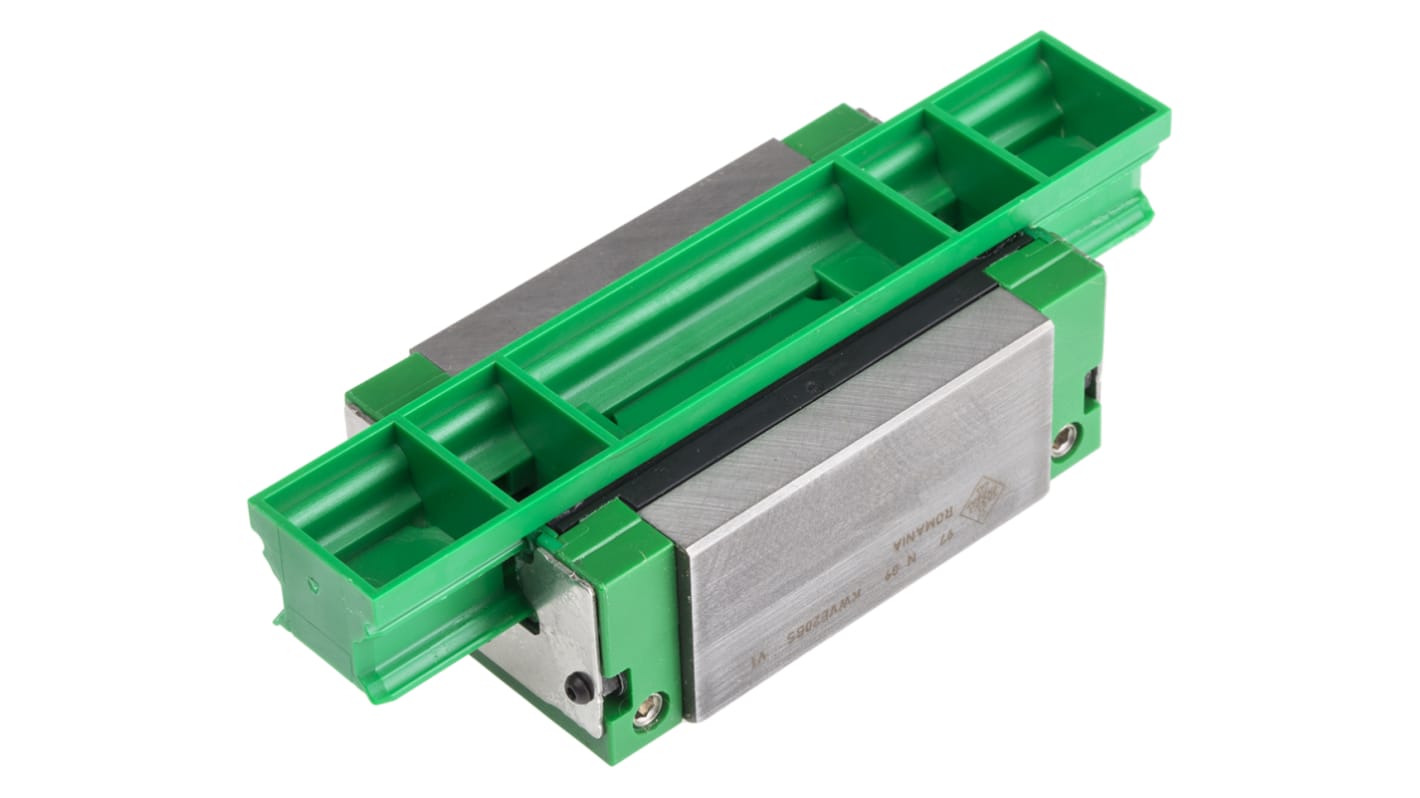

INA Linear Guide Carriage KWVE20-W-UG-V1-G3 KWVE20 Series, 13100 N Dynamic Load

모든 Linear Guide Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩361,091.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩361,091.60
5 +₩353,515.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
172-1058
제조사 부품 번호:
KWVE20-W-UG-V1-G3
제조업체:
INA
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

INA

Series

KWVE20

Product Type

Linear Guide Carriage

Carriage Length

71.4mm

Carriage Width

63mm

Dynamic Load Rating

13100N

Static Load Rating

27000N

Standards/Approvals

No

Four-row linear recirculating ball bearing and guideway assemblies represent the most extensive and complex group within the range of monorail guidance systems. They are used where linear guidance systems with high load carrying capacity and rigidity must move heavy loads with high running and positional accuracy as well as low friction. The guidance systems are preloaded and are suitable for long, unlimited stroke lengths. Depending on the operating conditions, accelerations up to 150 m/s2 and speeds up to 360 m/min are possible.

Full complement

With Quad-Spacers

Load carrying capacity

Carriages

Guideways

Located from above or below

With helical teeth

Slot for covering strip

Multi-piece guideways

Sealing

Lubrication

Operating temperature

Standard accessories

Plastic dummy guideway

Plastic closing plugs

Lubrication connectors

Corrosion-resistant designs

Suffixes
