INA Linear Guide Carriage KWVE25, 23400N Dynamic Load, 23mm Rail Width

모든 Linear Guide Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩333,474.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
  • 추가로 2025년 12월 15일 부터 4 개 단위 배송
  • 추가로 2026년 1월 20일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩333,474.40
5 +₩326,462.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
172-1062
제조사 부품 번호:
KWVE25-B-L-V1-G3
제조업체:
INA
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

INA

Manufacturer Series

KWVE25

For Rail Width

23mm

Carriage Length

83.3mm

Carriage Width

70mm

Dynamic Load Rating

23400N

Static Load Rating

54000N

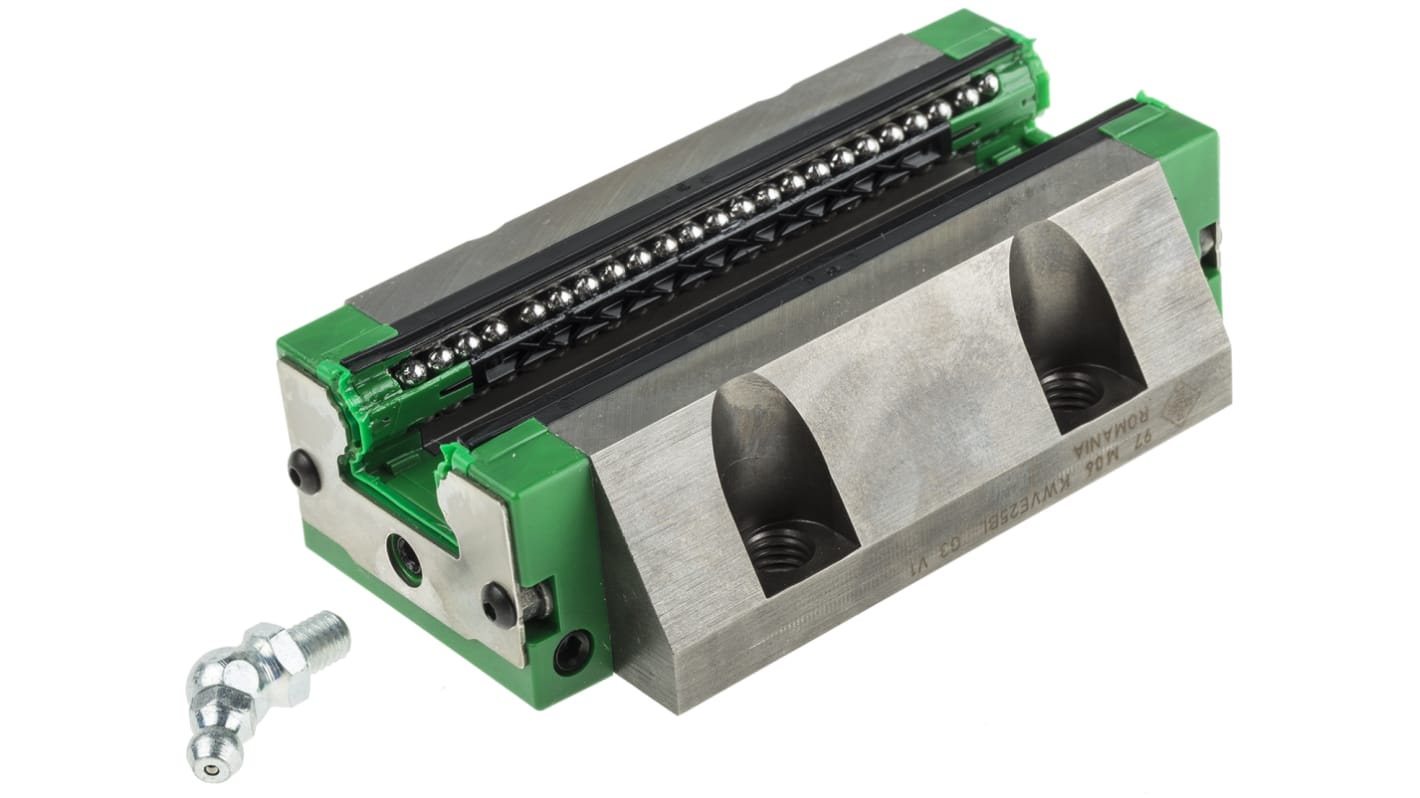

Schaeffler KWVE25 Series Linear Guide Carriage, 23400N Dynamic Load Rating, 54000N Static Load Rating - KWVE25-B-L-V1-G3


This linear guide carriage is a precision component designed to enhance linear motion systems. Featuring a carriage length of 83.3mm and a width of 70mm, it is compatible with a 23mm rail width guide. This product caters specifically to the needs of automation and industrial applications, ensuring smooth and reliable motion.

Features & Benefits


• High load capacity of 23400 N for dynamic applications
• Static load rating of 54000 N for maximum reliability
• Designed for precise movement and high-performance functionality
• Compact dimensions maximise space utilisation in systems
• Robust construction suited for heavy-duty linear guides
• Seamless integration with industrial linear bearings and systems

Applications


• Used in automation machinery for accurate positioning
• Ideal for robotics requiring reliable motion control
• Utilised in assembly lines for efficient linear movement
• Suited for CNC machines needing precise linear guidance
• Employed in materials handling systems for smooth transport

How does the dynamic load rating influence usage in demanding environments?


The dynamic load rating of 23400 N ensures that the carriage can handle significant forces during peak operations, making it suitable for heavy-duty applications without compromising performance.

What considerations should be made when integrating this component with existing systems?


Ensure compatibility with a 23mm rail width and check load requirements to guarantee that the linear guide carriage fits within the specifications of the current setup, optimising overall system efficiency.

In what scenarios would the static load rating be particularly relevant?


The static load rating of 54000 N is crucial when the system is expected to bear heavy loads while at rest, ensuring longevity and stability without causing structural damage or misalignment.
