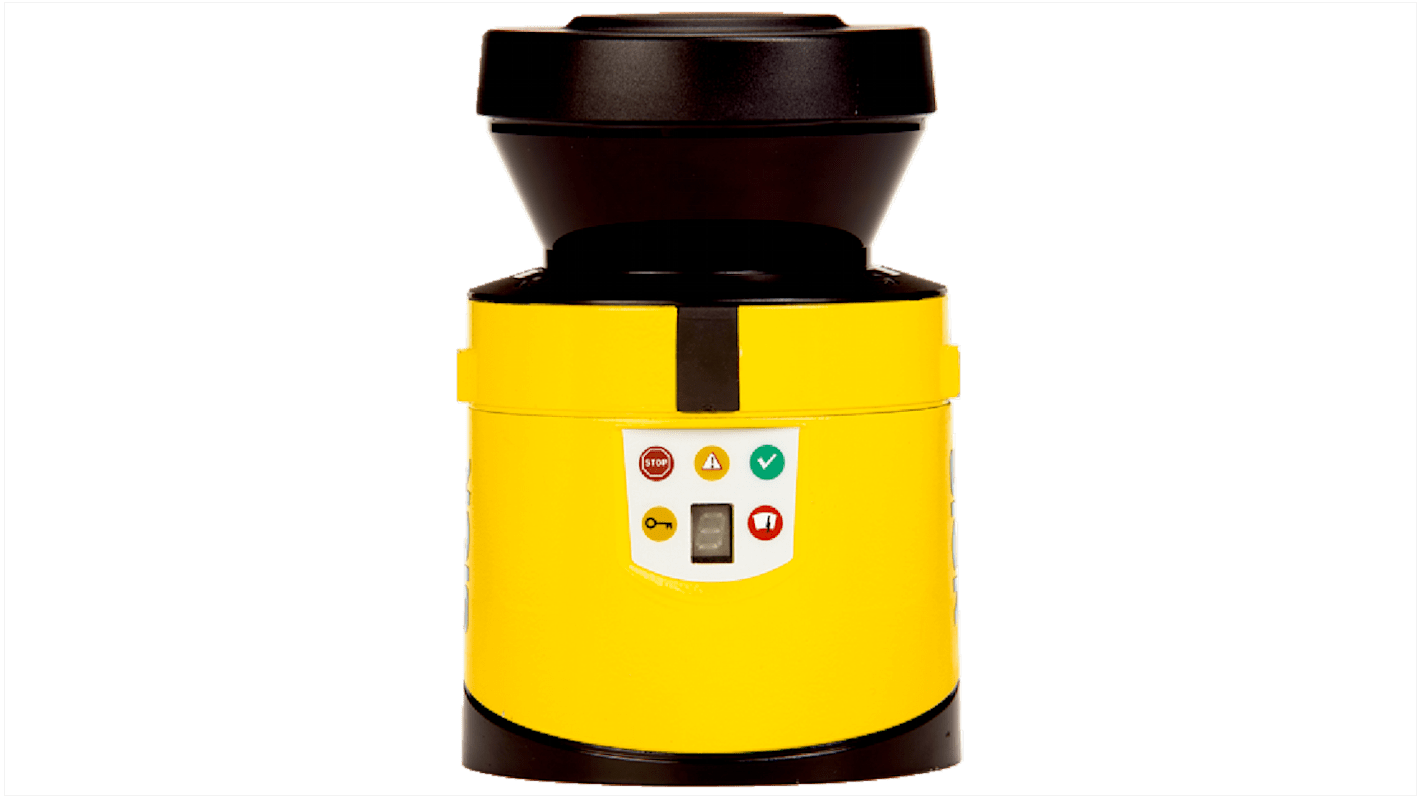

SICK S30B Series Laser Scanner Laser Scanner, 3 m Max Range
- RS 제품 번호:
- 285-6807
- 제조사 부품 번호:
- S30B-3011BA / 1056427
- 제조업체:
- SICK
Subtotal (1 unit)*
₩8,493,186.00
재고있음
- 추가로 2026년 5월 04일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩8,493,186.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-6807
- 제조사 부품 번호:
- S30B-3011BA / 1056427
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | S30B | |
| Component Type | Laser Scanner | |
| Maximum Scanning Distance | 3m | |
| Safety Type | 3 | |
| Standards/Approvals | d | |
| Maximum Response Time | 80ms | |
| Terminal Type | Plug | |
| Hazardous Area Certification | NO | |
| Peak Wavelength | 905nm | |
| Length | 106mm | |
| Height | 152mm | |
| Width | 102mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series S30B | ||
Component Type Laser Scanner | ||
Maximum Scanning Distance 3m | ||
Safety Type 3 | ||
Standards/Approvals d | ||
Maximum Response Time 80ms | ||
Terminal Type Plug | ||
Hazardous Area Certification NO | ||
Peak Wavelength 905nm | ||
Length 106mm | ||
Height 152mm | ||
Width 102mm | ||
Overview
The S300 Standard is the cost-effective solution for applications with freely definable protective fields. The new triple field mode allows three fields – one protective field and two warning fields – to be activated at the same time. The compact design m
The configuration memory integrated into the system plug also enables simple commissioning and quick device replacement. CDS (Configuration & Diagnostic Software) can be used to define protective and warning fields in a convenient and standardized way on
At a glance
Compact design
2 m or 3 m protective field range
270° scanning angle
1 field set
Configuration memory integrated in the system plug
EFI interface for safe SICK device communication
Measured data output via RS-422
Contour as reference for vertical applicat
Your Benefit
Simple integration due to compact design
Easy installation, commissioning and maintenance for stationary and mobile applications
Unbeatable cost-effectiveness – 270° scanning angle allows complete application protection with only two scanners
Safety engin
Applications
