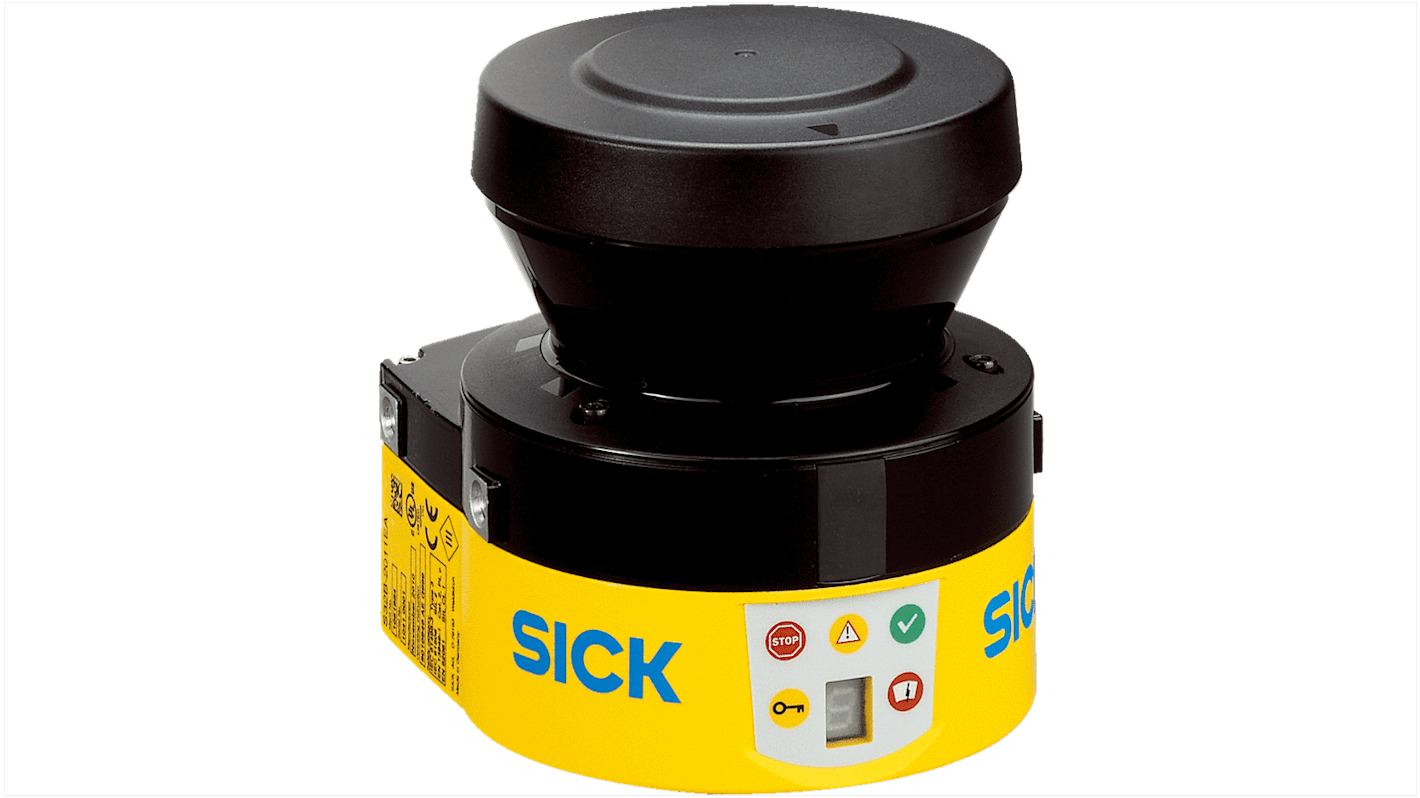

SICK S32B Series Laser Scanner Safety Laser Scanner, 30 m Max Range
- RS 제품 번호:
- 285-4243
- 제조사 부품 번호:
- S32B-0011BA / 1058000
- 제조업체:
- SICK
Subtotal (1 unit)*
₩5,729,821.50
재고있음
- 추가로 2026년 6월 08일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩5,729,821.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-4243
- 제조사 부품 번호:
- S32B-0011BA / 1058000
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | S32B | |
| Component Type | Safety Laser Scanner | |
| Maximum Scanning Distance | 30m | |
| Safety Type | 3 | |
| Standards/Approvals | d | |
| Maximum Response Time | 80ms | |
| Terminal Type | Cable | |
| Hazardous Area Certification | NO | |
| Protective Height | 1m | |
| Height | 116mm | |
| Length | 105mm | |
| Width | 102mm | |
| Peak Wavelength | 905nm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series S32B | ||
Component Type Safety Laser Scanner | ||
Maximum Scanning Distance 30m | ||
Safety Type 3 | ||
Standards/Approvals d | ||
Maximum Response Time 80ms | ||
Terminal Type Cable | ||
Hazardous Area Certification NO | ||
Protective Height 1m | ||
Height 116mm | ||
Length 105mm | ||
Width 102mm | ||
Peak Wavelength 905nm | ||
- COO (Country of Origin):
- DE
Overview
The S300 Mini Standard is an ultra-compact design which is ideal for simple applications in which a freely definable protective field is required. The triple field function enables a protective field and two warning fields to be operated at the same time. This minimizes downtime and brake wear.
The S300 Mini Standard is ideal for protecting small automated guided carts (AGC) and also for hazardous area protection of small machines. CDS (Configuration & Diagnostic Software) can be used to define protective and warning fields in a convenient and standardized way on a PC or laptop.
At a glance
Ultra-compact design
1 m, 2 m, or 3 m protective field range
270° scan angle
1 field set
Selectable resolution for hand, leg or body detection
Contour as reference for vertical applications
Integrated external device monitoring (EDM)
Easy-to-configure fields and functions
Your Benefit
Simple integration due to ultracompact design
Easy installation, commissioning and maintenance for stationary and mobile applications
Unbeatable cost effectiveness – 270° scanning angle allows complete application protection with only two scanners
Safety engineering – with no loss of productivity
Decades of proven safety technology guarantee maximum reliability and availability – even under difficult conditions
Easy to manage, reducing costs and work time
Reduction of downtime and brake wear thanks to triple field function
Simple alignment and safe operation in vertical mode
Applications
Fields of applications
Hazardous area protection or presence detection at loading and unloading stations
Pressure-sensitive mat replacement
Protection of automatically guided carts
Protection of large automatically guided vehicles
Protection of automatica
