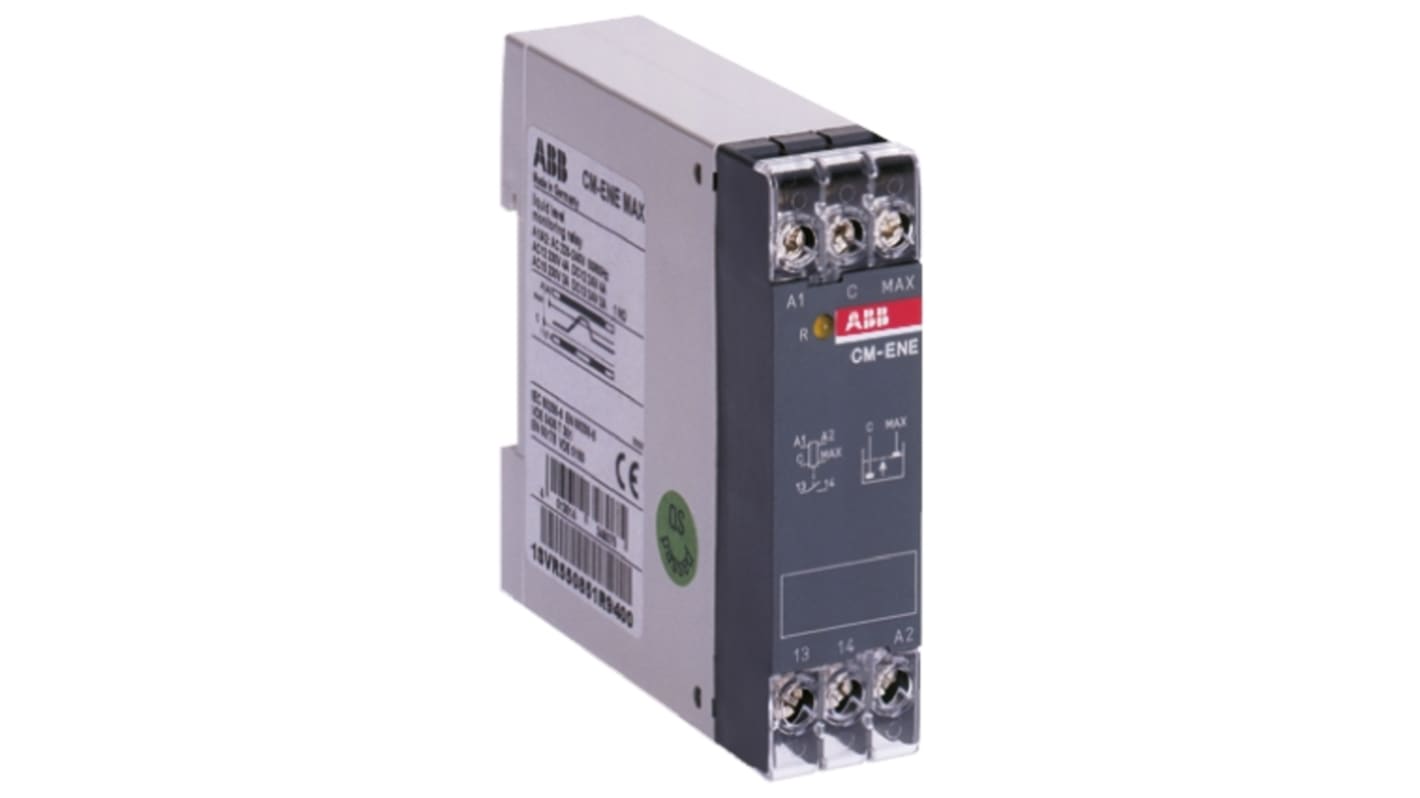

ABB CM-ENE MAX Series Liquid Level Relay -, DIN Rail, Screw, Snap-On 240 V ac-Rated Relay
- RS 제품 번호:
- 746-7431
- 제조사 부품 번호:
- 1SVR550851R9400 CM-ENE MAX
- 제조업체:
- ABB
Subtotal (1 unit)*
₩134,965.20
재고있음
- 추가로 2026년 2월 23일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩134,965.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 746-7431
- 제조사 부품 번호:
- 1SVR550851R9400 CM-ENE MAX
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Product Type | Liquid Level Relay | |
| Probe Voltage | 30V ac | |
| Overall Length | 88.5mm | |
| Mount Type | DIN Rail, Screw, Snap-On | |
| Overall Depth | 78 mm | |
| Minimum Operating Temperature | -20°C | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| IP Rating | IP20, IP50 | |
| Maximum Supply Voltage | 240V ac | |
| Overall Width | 22.5mm | |
| Standards/Approvals | IEC | |
| Hazardous Area Certification | No | |
| Number of Outputs | 5 | |
| Current Rating | 4 A | |
| Sensitivity | 100kΩ | |
| Output Type | Relay | |
| Series | CM-ENE MAX | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Product Type Liquid Level Relay | ||
Probe Voltage 30V ac | ||
Overall Length 88.5mm | ||
Mount Type DIN Rail, Screw, Snap-On | ||
Overall Depth 78 mm | ||
Minimum Operating Temperature -20°C | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
IP Rating IP20, IP50 | ||
Maximum Supply Voltage 240V ac | ||
Overall Width 22.5mm | ||
Standards/Approvals IEC | ||
Hazardous Area Certification No | ||
Number of Outputs 5 | ||
Current Rating 4 A | ||
Sensitivity 100kΩ | ||
Output Type Relay | ||
Series CM-ENE MAX | ||
Maximum Liquid Level Relay - ABB CM-ENE MAX
Maximum Liquid Level Relays may be used to monitor when liquid media reaches or falls below the desired level in a tank/vessel. The units are often employed for use within pumped control systems, overflow monitoring applications and dry running protection.
Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.
Application Examples
Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:
Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels
