STMicroelectronics STEVAL-ILL089V1, 1 A Buck LED Driver Board Based on the ALED6000 Automotive-Grade Dimmable LED

모든 LED Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩64,897.60

Add to Basket
수량 선택 또는 입력
공급 부족
  • 27 개 단위 배송 준비 완료
당사의 현재 재고는 제한중이며, 제조사측에서는 공급 부족을 예상하고 있습니다.
수량
한팩당
1 - 4₩64,897.60
5 - 9₩63,600.40
10 +₩62,340.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
225-0003
Distrelec 제품 번호:
303-99-840
제조사 부품 번호:
STEVAL-ILL089V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

LED

Featured Device

ALED6000

Kit Name

1 A Buck LED Driver Board Based on the ALED6000 Automotive-Grade Dimmable

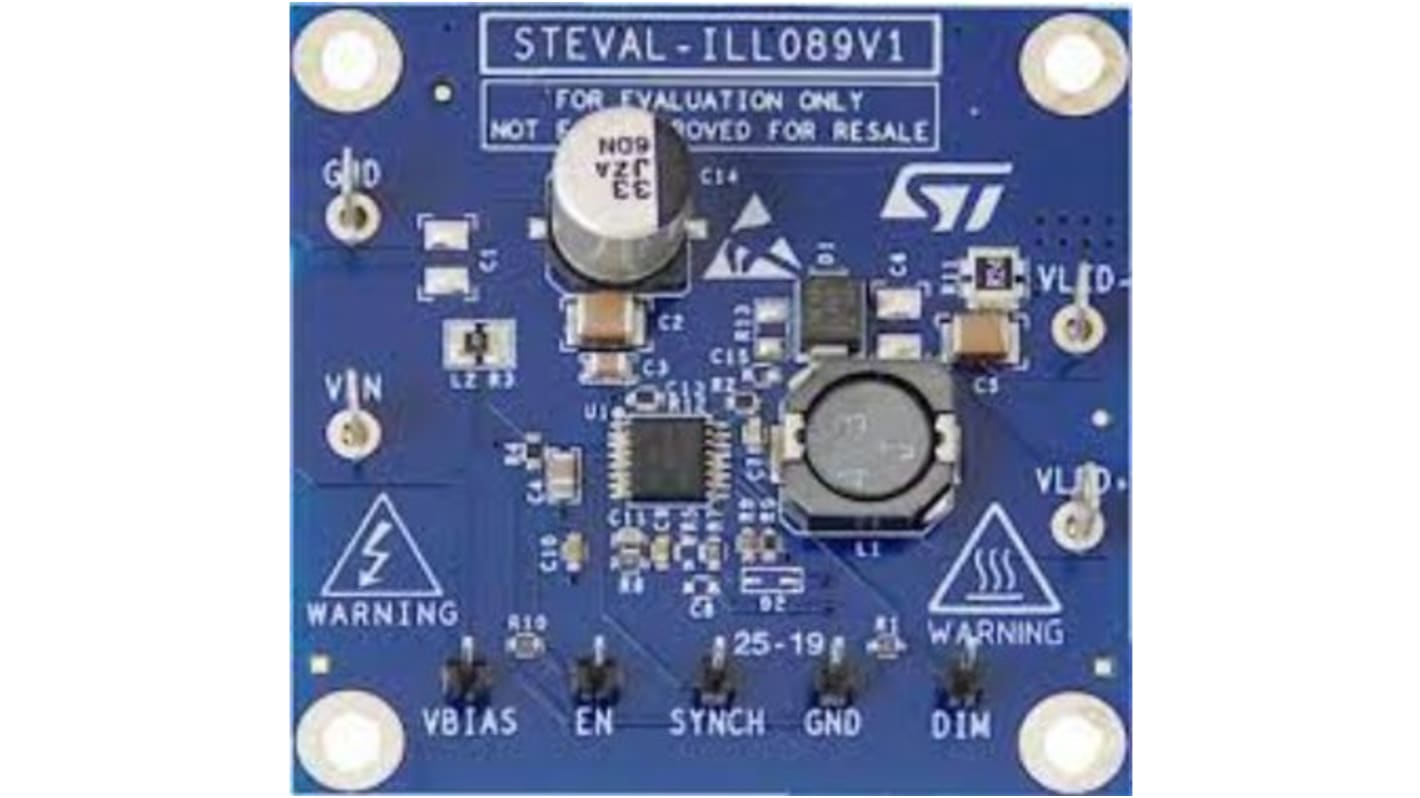

The STMicroelectronics STEVAL-ILL089V1 evaluation board is based on the ALED6000 monolithic current source for high power LED driving. Digital dimming is implemented by driving the dedicated DIM pin. Low drop-out operation with almost 100% duty cycle can be achieved. The ALED6000 is a 61 V asynchronous switching regulator with embedded Power MOSFET, designed to source up to 3 ADC current depending on the application conditions. The 250 mV typical RSENSE voltage drop, the embedded switchover feature on the VBIAS pin and the light load management (pulse skipping) all contribute to maximizing power conversion efficiency across the entire load range.

Step-down conversion
1 A programmed LED current
500 kHz switching frequency
Digital dimming
Compliant with ceramic output capacitors
180° out of phase synchronization available
Auto recovery overcurrent and thermal protection

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
