STMicroelectronics EVL150W-HVSL 150 V - 150 W LED driver LED Driver Evaluation Board for STCMB1 for High-powerstreet

모든 LED Development Tools 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
208-5046
제조사 부품 번호:
EVL150W-HVSL
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

LED Driver Evaluation Kit

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

High-powerstreet Lighting

Featured Device

STCMB1

Kit Name

150 V - 150 W LED driver

Standards/Approvals

RoHS

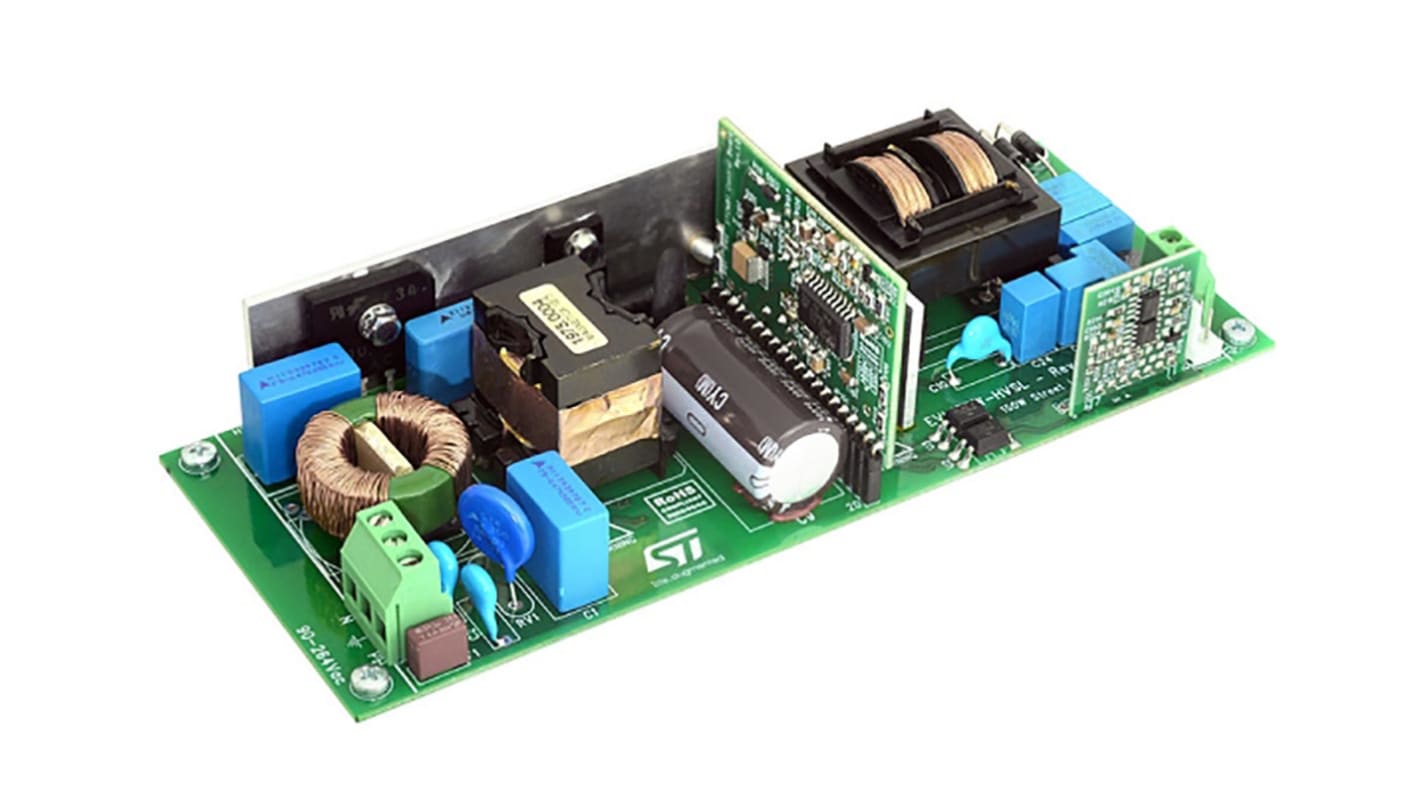

The EVL150W-HVSL is an evaluation board of a150 W / 1 A LED driver with wide input mains range. The electrical specification is tailored on a typical high-power street lighting application. It is based on a two-stage architecture, consisting of a front-end PFC pre-regulator and a downstream half-bridge resonant tank converter. The pre-regulator is transition mode PFC based on constant ON time control, while the resonant converter is an LCC tank that is more suitable than LLC tank to build a current source.

Universal input mains range: 90 to 264 Vac -frequency 45 to 65 Hz

Half-bridge topology: LCC

Max. output voltage and current: 150 V at 1 A continuous operation

No-load mains consumption: < 0.5 W

THD < 10% at 230 Vac from 30 to 100% of the full load

No need of auxiliary SMPS (Viper or equivalent)

Efficiency: >91% at full load
