STMicroelectronics STEVAL-TLL012V1, STEVAL LED Driver Demonstration Board for STP4CMP for LED Driver

모든 LED Development Tools 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
196-1910
제조사 부품 번호:
STEVAL-TLL012V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

LED Technology

LED Driver

Kit Classification

Demonstration Board

For Use With

LED Driver

Featured Device

STP4CMP

Kit Name

STEVAL

COO (Country of Origin):
IT

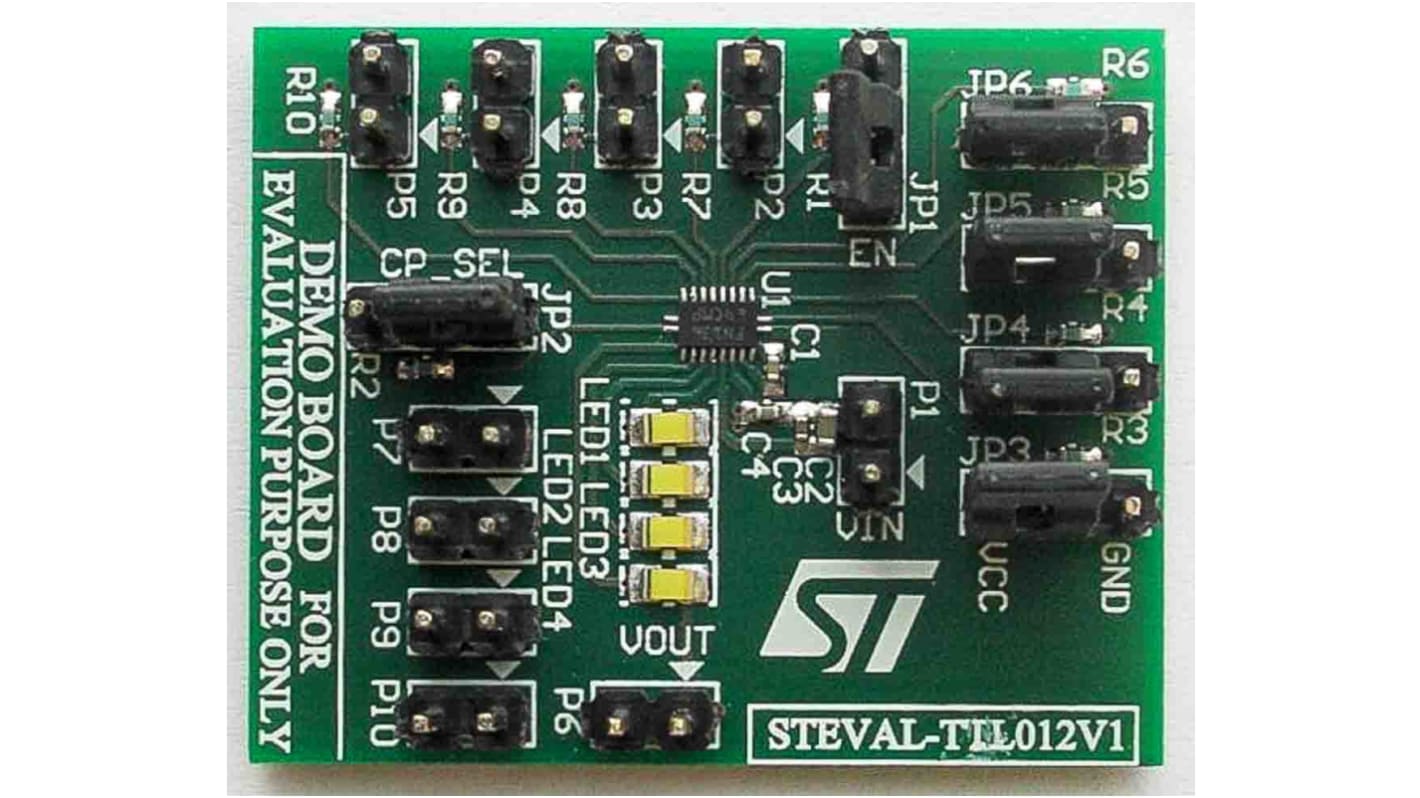

The STEVAL-TLL012V1 demonstration board demonstrates the performance of the STP4CMP, a charge pump based 4-channel LED driver designed for RGB illumination or LCD display backlighting. This device works off a battery with an input voltage between 2.7 V - 5.5 V. The device generates regulated current sinks with high absolute and channel-to-channel accuracy to drive up to 4 LEDs.
It can support LEDs with forward voltage as high as 3.8 V.
The current sink for each channel can be set with 4 individual external resistors. Each channel is controlled independently.
The PWM control can be applied directly to the 4 EN (enable) inputs to provide brightness control.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
