STMicroelectronics STEVAL-ILL002V4 STEVAL LED Driver Demonstration Board for STP08DP05 for MCU

모든 LED Development Tools 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
196-1788
제조사 부품 번호:
STEVAL-ILL002V4
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

LED Technology

LED Driver

Product Type

LED Driver Evaluation Kit

Kit Classification

Demonstration Board

For Use With

MCU

Featured Device

STP08DP05

Kit Name

STEVAL

Standards/Approvals

RoHS

COO (Country of Origin):
IT

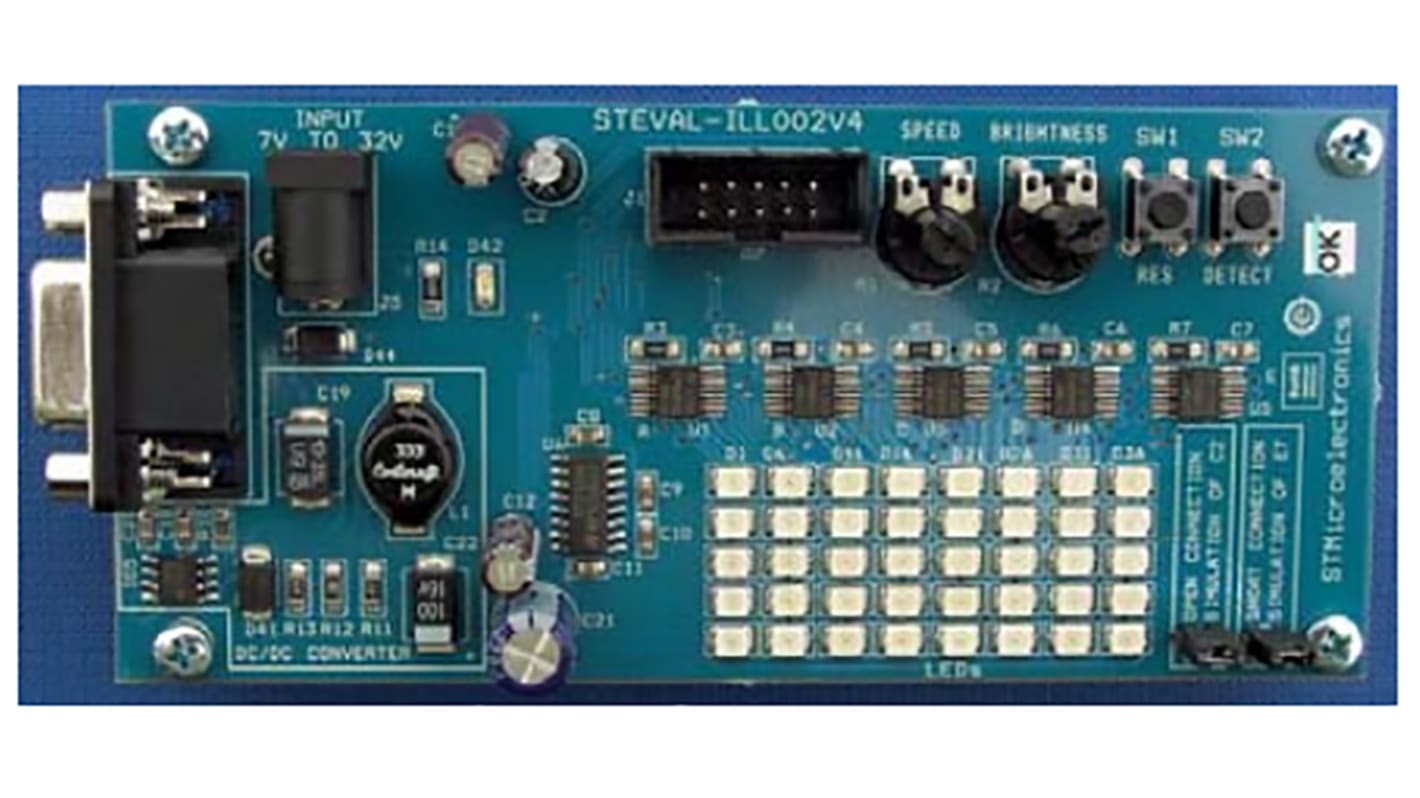

This demonstration board provides a complete solution for driving 40 high-brightness green LEDs manufactured by Toshiba. The high-brightness LEDs are arranged on the board in a 5x8 matrix. The matrix is driven by five 8-channel STP08DP05 drivers which are controlled by the ST7FLITE3x 8-bit microcontroller. The innovative feature of STP08DP05 is the full output error detection function, which checks the status of the outputs without invasive tests (via software).

DC-DC converter

Brightness regulation

Animated text

Blinking speed regulation

Graphic user interface (GUI)

Error detection on output
