STMicroelectronics STEVAL-ILL074V1, STEVAL LED for HVLED001A for High Power LED

모든 LED Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩135,811.20

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩135,811.20
5 +₩133,085.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
196-1809
제조사 부품 번호:
STEVAL-ILL074V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

LED Technology

LED

For Use With

High Power LED

Featured Device

HVLED001A

Kit Name

STEVAL

COO (Country of Origin):
IT

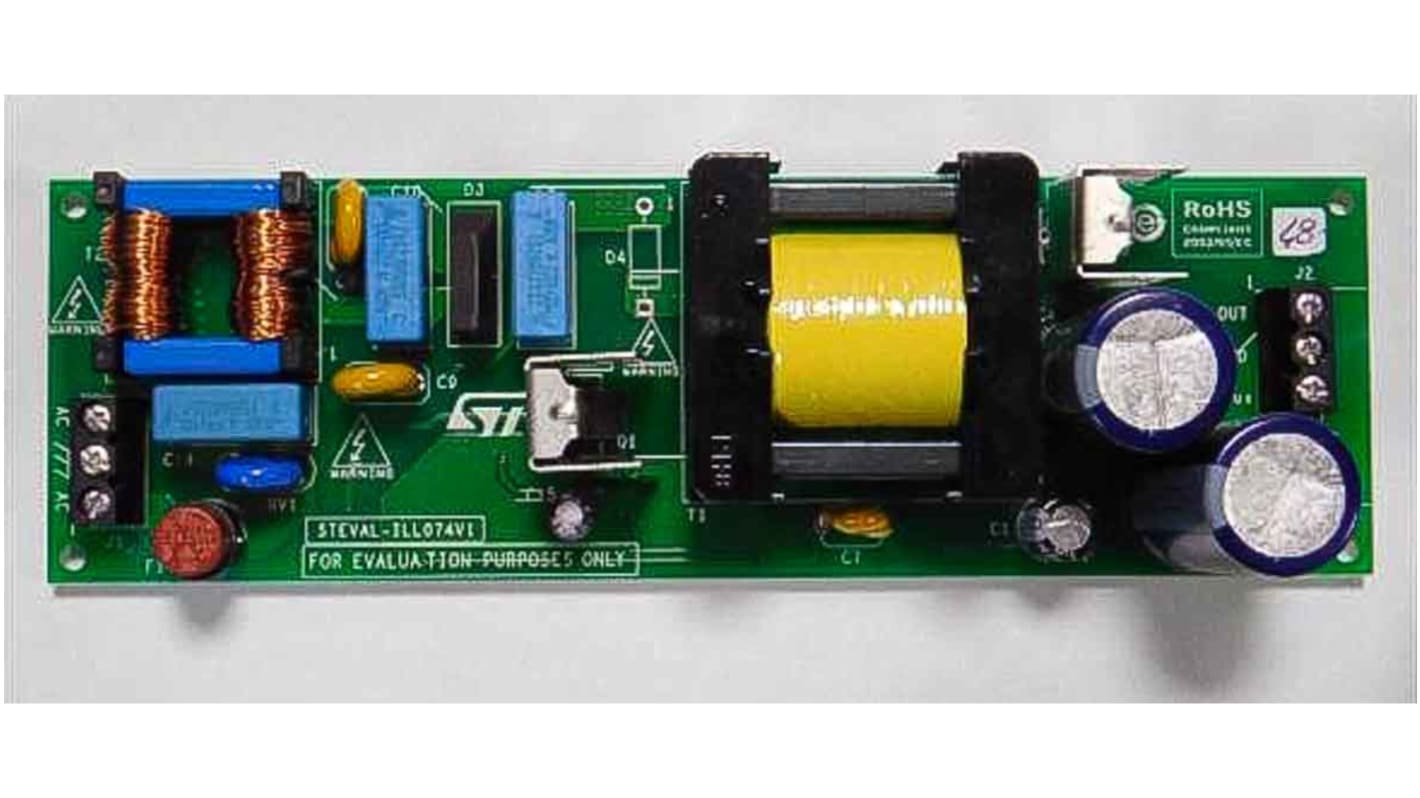

The STEVAL-ILL074V1 provides a stable and insulated 52 V voltage bus suitable for secondary side circuitry (e.g., LED current generators), for a total output power of 60 W, given a wide input voltage range. An auxiliary 15 V output is also present to supply small circuitries absorbing a maximum current of 50 mA. A very high power factor is obtained thanks to the features of the HVLED001A device. Input voltage variations, excessive input voltage (overvoltage from surges or bursts) or very low input voltages are handled through several HVLED001A protections, improving the reliability of the application.
Output short circuit and overload protections with auto-restart are available for safe operation in lighting environments.

Input voltage: Vin = 90 - 277 Vrms, f = 45-66 Hz
Output voltage: 52 V / 1.2 A
High power factor, low THD
Full load efficiency: greater than 90%
Short circuit protection
PCB board: 165 mm x 50 mm double sided PCB

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
