StarTech.com 2 Port 1 Displays USB DisplayPort KVM Switch 3.5 mm Stereo 3840 x 2400 pixel Maximum Resolution

모든 KVM Switches 열람하기

Subtotal (1 unit)*

₩505,615.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 5월 04일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩505,615.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
179-8046
Distrelec 제품 번호:
302-31-680
제조사 부품 번호:
SV231DPUA
제조업체:
StarTech.com
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

StarTech.com

Video Connection Type

DisplayPort

Product Type

KVM Switch

Number of Ports

2

Supported Number of Displays

1

Number of Video Outputs

1

Maximum Resolution

3840 x 2400 pixel

Keyboard/Mouse Connection Type

USB

Audio Connection Type

3.5 mm Stereo

Width

220mm

Standards/Approvals

CE, TAA, RoHS, FC

Depth

130mm

Height

44mm

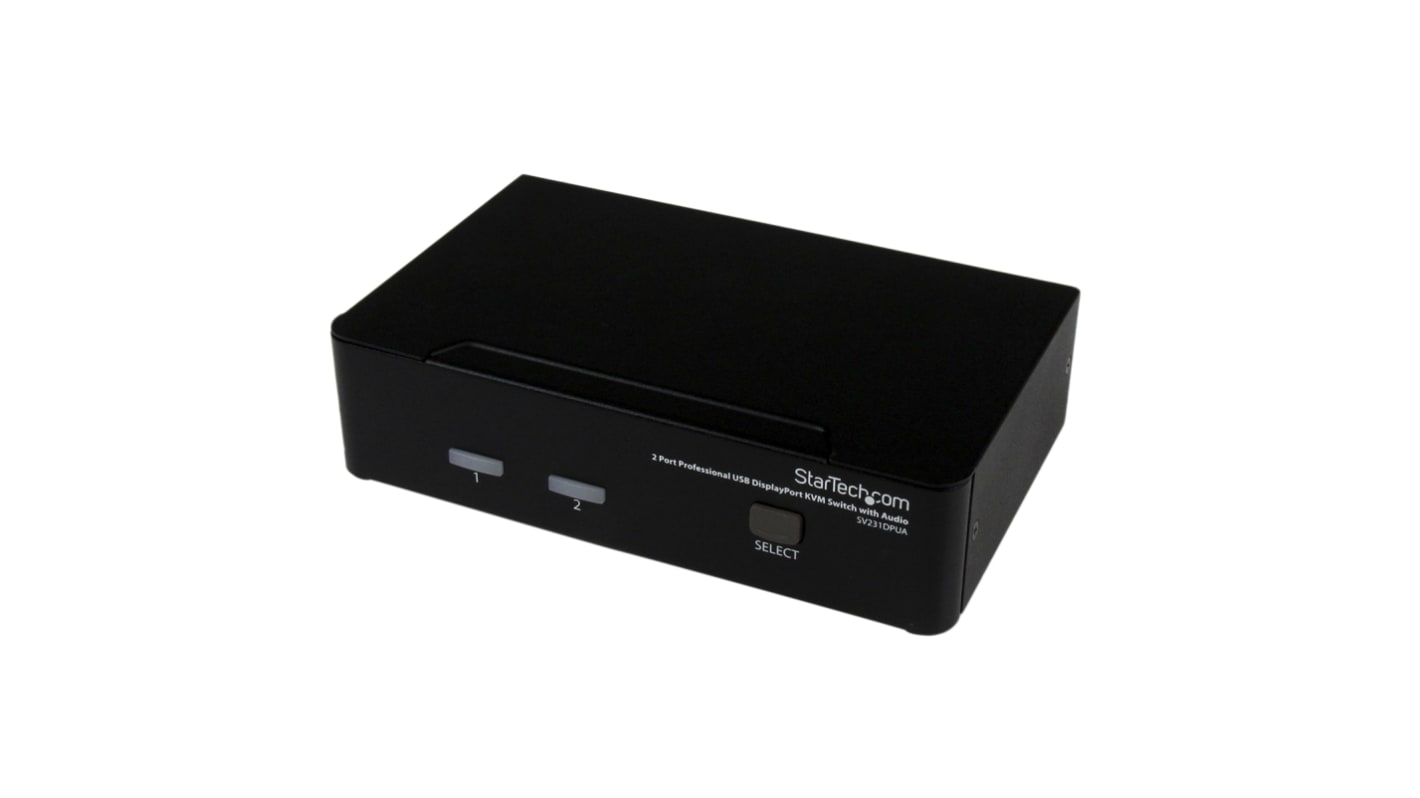

SV231DPUA 2 Port DisplayPort KVM Switch


The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.

A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.

This product is backed by a Startech.com 3-year warranty with free lifetime technical support.

Features & Benefits


• Supports native DisplayPort computer connections - no adapter required

• Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p

• Supports a maximum resolution of 3840 x 2400 at lower refresh rates

• VESA and CEA compliant

• Supports 3.5mm Stereo analogue audio; Supports 7.1 Channel High Definition Digital Audio through the DisplayPort connection

• USB 2.0 peripheral sharing

• No driver or software installation required

• Hotkey and push-button switching

• Full plug-and-play support with USB keyboards, mice, and connected peripherals

• Platform Independent - Supports Mac and PC operating environments

• Supports DDC2B for monitor detection

• Supports hot-plug, un-plug and link status-failure detection

• User-defined scan time intervals

• Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook® connectivity

• Support for both analogue and digital audio sources provides the versatility to use either connection depending on preference/availability

• USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)

Applications


• Multimedia design, multimedia post-production and video editing using Mac or PC computers

• High resolution medical imaging and Health care display, such as MRI and Xray display

• Manufacturing line computer control

• PC test/burn-in computer control

• High-res Digital Signage server control

• Satellite Topography

• Dual system control for a single work terminal

What’s in the package?


• 2-port DisplayPort KVM switch

• foot pads

• universal power adapter (NA/UK/EU/AU)

• instruction manual
