Ixxat Interface Converter

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩850,418.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 43 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩850,418.00
5 +₩765,366.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
226-2743
제조사 부품 번호:
1.01.0281.11001
제조업체:
Ixxat
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Ixxat

Product Type

Interface Converter

COO (Country of Origin):
SE

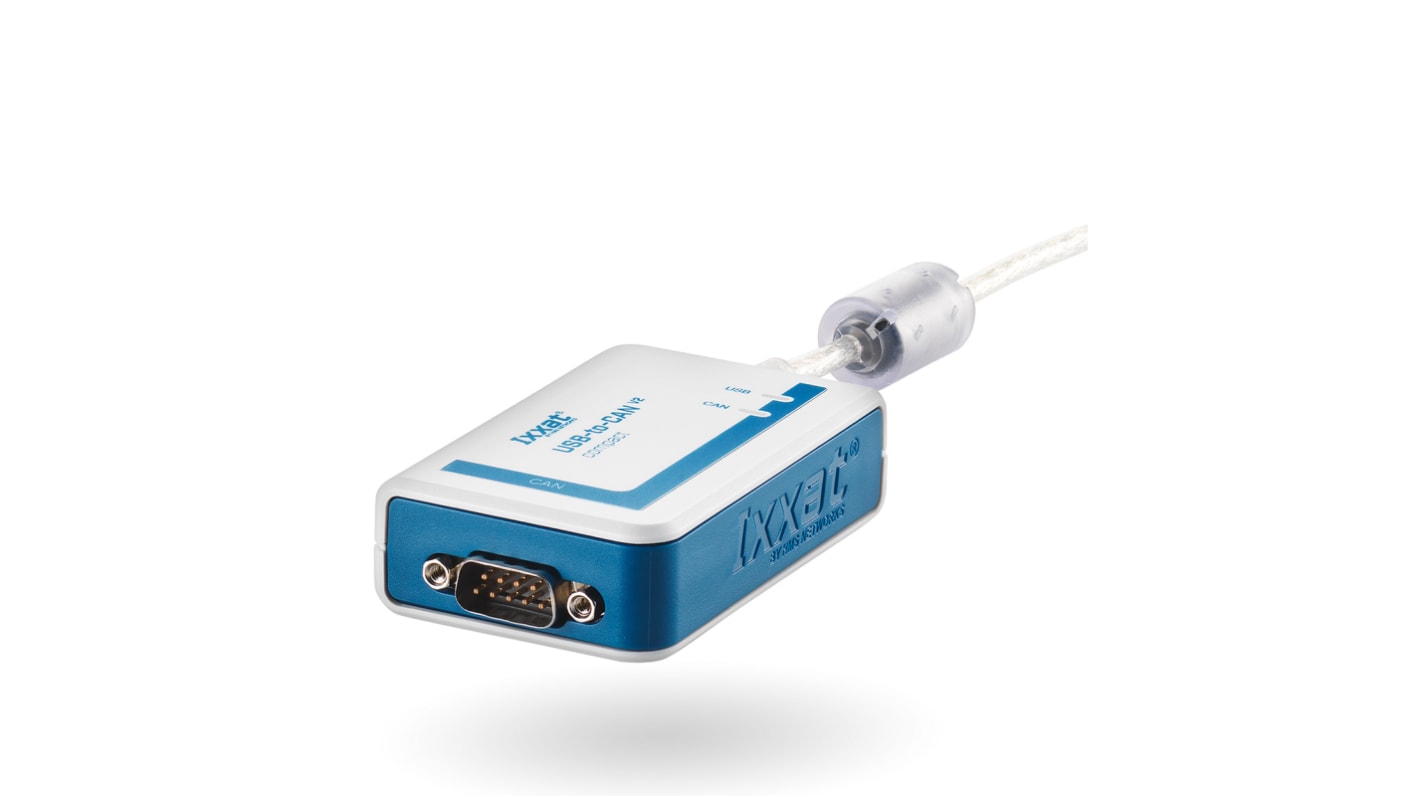

Ixxat USB-to-CAN V2 compact, USB-CAN-Adapter with D-Sub 9 connector


With its CAN high-speed interface, the Ixxat USB-to-CAN V2 compact enables a simple and flexible CAN bus connection of computers with USB interface. It is a suitable tool for a wide variety of CAN applications in the areas of testing, development, maintenance, and control.

The PC connection is established via a native USB 2.0 Hi-Speed port (480 Mbit/s), on the CAN bus side the device is connected via a D-Sub 9 connector.

Thanks to its high-performance on-board microcontroller system, the Ixxat USB-to-CAN V2 compact is also able to process message bursts (11- and 29-bit identifiers, CAN 2.0 A/B) at bit rates of up to 1 Mbit/s without any loss. This also includes message filtering, accurate time stamping (1 ms resolution) and buffering of CAN frames.

A comprehensive driver and software package can be downloaded free of charge from the website (www.ixxat.com/vci).

Features and Benefits


•High quality and extremely reliable PC interface

•High data throughput combined with low latency

•Native USB 2.0 hi-speed (480 MBit/s), compatible with USB 1.1 and USB 3.x

•Powerful programming interface for Windows (VCI) as well as for Linux (socketCAN or ECI), QNX and VxWorks (ECI)

Technical Data


•Connectors: 1 x D-Sub 9, 1 x USB Type A;•CAN bit rates: 10 kBit/s to 1 Mbit/s;•CAN interface: CAN high-speed (ISO 11898-2: 2016);•Certification: CE, UKCA, FCC
