Ixxat RJ45 to Female to RJ45 Industrial Interface Converter

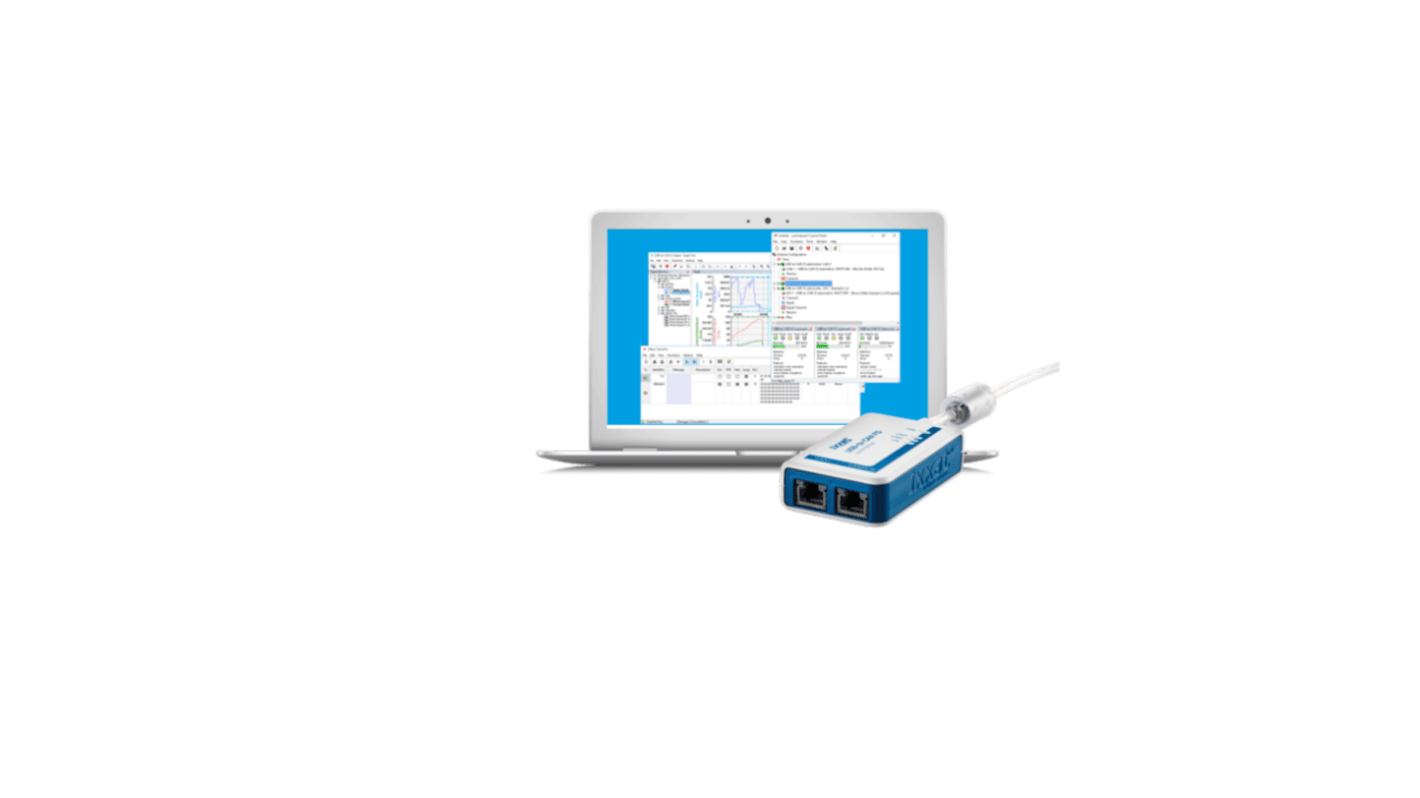

The Ixxat USB to CAN + canAnalyser bundle offers a comprehensive solution for connecting, diagnosing and analysing CAN FD networks. The bundle includes the USB to CAN FD automotive interface with two switchable CAN FD/CAN high speed channels, LIN and galvanic isolation, to easily establish a connection between a computer and CAN FD/LIN networks. It is complemented by a canAnalyser 3 Standard software license, offering advanced functionalities for the testing, monitoring and troubleshooting of CAN FD and LIN based systems.

• Complete solution combining hardware and software;• Supporting CAN, CAN FD and LIN based systems;• J1939, CANopen and Sequencer module;• Supporting XML, CAN DB and LDF;• Powerful programming interface for Windows (VCI) as well as for Linux (socketCAN or ECI), QNX and VxWorks (ECI);• 2 x RJ45 to 9-pin D-Sub adapter cables included

• 2 x CAN FD connection up to 8 Mbit/s;• 1 x LIN communication in master or slave mode (switchable frame format);• Connectors: 2 x RJ45 sockets, 1 x USB Type A;• Galvanic isolation: 1 kV DC for 1 sec.;• Certification: CE, UKCA, FCC
