Ixxat CAN D Sub 9 Pin Male to D-sub, 9 Pin Male Interface Converter, CAN-CR200
- RS 제품 번호:
- 226-2732
- 제조사 부품 번호:
- 1.01.0067.44010
- 제조업체:
- Ixxat
Subtotal (1 unit)**
₩749,680.08
8 재고있음 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
재고 확인하기
수량 | 한팩당 |
---|---|
1 + | ₩749,680.08 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 226-2732
- 제조사 부품 번호:
- 1.01.0067.44010
- 제조업체:
- Ixxat
- COO (Country of Origin):
- DE

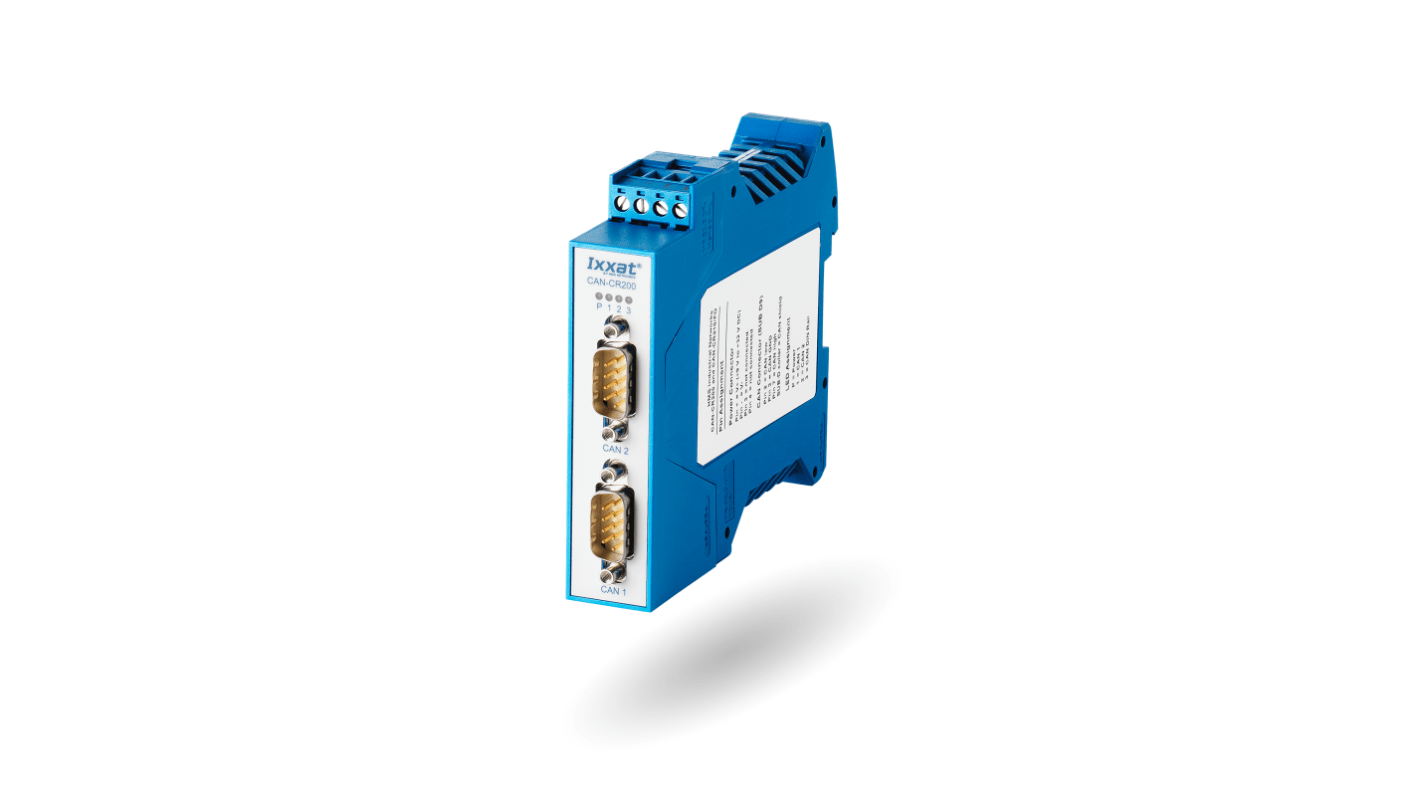

Ixxat CAN-CR200 – Modular CAN repeater with two CAN channels and DIN rail bus, galvanically isolated
The Ixxat CAN-CR200 is a modular CAN repeater with two CAN interfaces and a CAN backbone bus. It is used to improve the CAN bus load capacity, to establish a physical coupling of bus systems or to insert a galvanic isolation. The device creates the necessary flexibility to optimize the structure of CAN networks, as it enables the implementation of tree or star topologies as well as stub lines. With the integrated DIN rail backbone bus, it’s possible to easily line up and connect multiple repeaters, e.g. for creating star topologies. Optimized network structures result in simpler cable wiring and cost savings at installation and maintenance.
The integrated galvanic isolation is provided for both the CAN segments and the supply voltage, and reliably increases the protection of the device against overvoltage and voltage peaks. In case of disturbances in the CAN lines, the repeater automatically disconnects the affected segment and restores it after the fault is resolved, ensuring uninterrupted network operation.
Ixxat CAN repeaters are specially designed for use in an industrial environment, meeting the highest demands in terms of robustness, temperature range and safety.
The integrated galvanic isolation is provided for both the CAN segments and the supply voltage, and reliably increases the protection of the device against overvoltage and voltage peaks. In case of disturbances in the CAN lines, the repeater automatically disconnects the affected segment and restores it after the fault is resolved, ensuring uninterrupted network operation.
Ixxat CAN repeaters are specially designed for use in an industrial environment, meeting the highest demands in terms of robustness, temperature range and safety.
Features and Benefits
- Cost savings due to simple wiring
- Almost no influence on real-time behavior (propagation delay ca. 40 m/200 ns)
- Greater flexibility in CAN network design
- Separates a defective segment, allowing the remaining network to continue working
- Increased system reliability
- DIN rail backbone bus to line up and connect repeaters easily
Technical Data
- Connectors: 2 x D-Sub 9, 1 x DIN rail backbone bus (TBUS), 1 x screw terminal (Power)
- CAN interface: CAN high-speed (ISO 11898-2 with CAN choke)
- CAN bit rates: 10 kBit/s to 1 Mbit/s
- CAN bus termination resistors: 120 Ohm switchable via DIP switch
- Galvanic isolation: 1 kV DC for 1 sec, 500 V AC for 1 min. CAN 1, CAN 2 and backbone bus are galvanically isolated against each other.
- Certification: CE, FCC
속성 | 값 |
---|---|
Bus Type | CAN |
Connector A | D Sub 9 Pin |
Connector A Gender | Male |
Connector B | D-sub, 9 Pin |
Connector B Gender | Male |
Series | CAN-CR200 |
