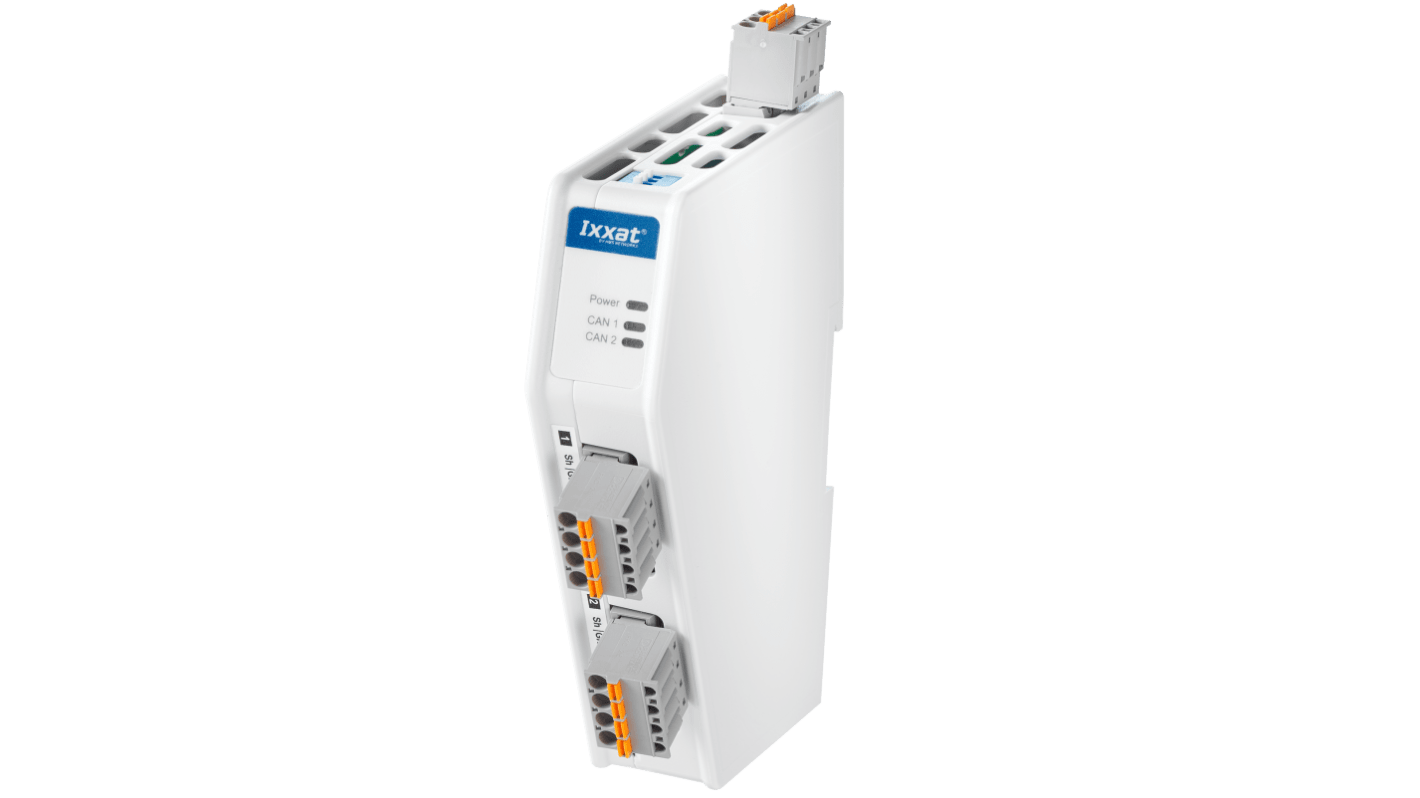

Ixxat CANbus Female to Female Interface Adapter, CAN/FD Repeater Standard

본 제품군 열람하기

Subtotal (1 unit)*

₩510,890.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 20 개 단위 배송 준비 완료
  • 추가로 2026년 1월 19일 부터 9 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩510,890.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
536-949
제조사 부품 번호:
1.01.0211.20000
제조업체:
Ixxat
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Ixxat

Bus Type

CANbus

Connector A Gender

Female

Connector B Gender

Female

Series

CAN/FD Repeater Standard

COO (Country of Origin):
DE
CAN/CAN FD repeater with push-in connector and 5 kV isolation voltage

The Ixxat CAN/FD Repeater Standard CAN/FD with two CAN/CAN FD interfaces can be used to improve the load capacity of the CAN bus with nodes, to establish a physical coupling of CAN/CAN FD bus systems or to insert a galvanic isolation. It provides the flexibility to optimize network structures and liberates them from CAN bus structure constraints for optimized operation.

Features and Benefits


• Robust for industrial use
• Easy coupling of CAN systems and devices
• Cost savings due to simple wiring
• Increased system reliability
• Line protection by galvanic isolation
• Protection of segments up to 5 kV

Technical Data


• Interfaces: CAN FD, push-in connector

• CAN bit rates: Up to 1 Mbit/s.

• CAN/CAN FD bit rates: 14 kBit/s up to 8000 kBit/s.

• CAN termination: For each CAN/CAN FD channel; separately switchable by piano switch

• Throughput delay: Type. 175 ns (corresponds to approx. 35 m cable length)

• Electrical decoupling: CAN-CAN and CAN-Power with at least 5 kV DC for 1 minute; CAN shield against earth and Power against earth with at least 2 kV DC for 1 minute

• Housing: Plastic top-hat rail housing
