onsemi FGY4L140T120SWD, Type N-Channel Common Emitter IGBT, 140 A 1200 V, 4-Pin TO-247-4L, Through Hole

RS 제품 번호:: 277-078
제조사 부품 번호:: FGY4L140T120SWD
제조업체:: onsemi

onsemi FGY4L140T120SWD, Type N-Channel Common Emitter IGBT, 140 A 1200 V, 4-Pin TO-247-4L, Through Hole

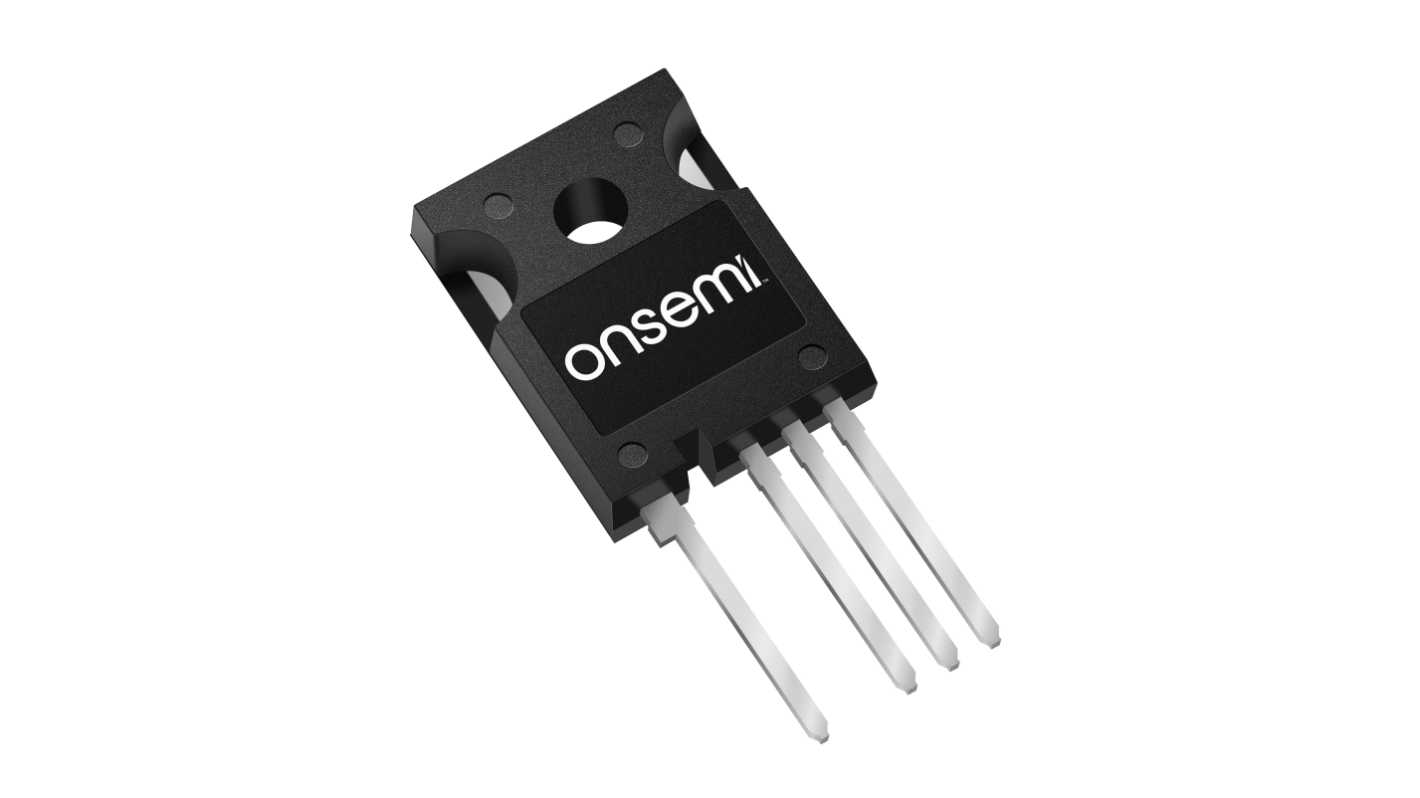

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩23,537.60

재고있음

10 개 단위 배송 준비 완료
추가로 2026년 4월 23일 부터 30 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩23,537.60
10 - 99	₩21,187.60
100 +	₩19,533.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 277-078
제조사 부품 번호:: FGY4L140T120SWD
제조업체:: onsemi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	onsemi
	Maximum Continuous Collector Current Ic	140A
	Product Type	IGBT
	Maximum Collector Emitter Voltage Vceo	1200V
	Maximum Power Dissipation Pd	1.25kW
	Number of Transistors	1
	Configuration	Common Emitter
	Package Type	TO-247-4L
	Mount Type	Through Hole
	Channel Type	Type N
	Pin Count	4
	Minimum Operating Temperature	-55°C
	Maximum Collector Emitter Saturation Voltage VceSAT	2V
	Maximum Gate Emitter Voltage VGEO	20 V
	Maximum Operating Temperature	175°C
	Length	22.54mm
	Standards/Approvals	RoHS
	Height	5mm
	Automotive Standard	No

	모두 선택
	브랜드 onsemi
	Maximum Continuous Collector Current Ic 140A
	Product Type IGBT
	Maximum Collector Emitter Voltage Vceo 1200V
	Maximum Power Dissipation Pd 1.25kW
	Number of Transistors 1
	Configuration Common Emitter
	Package Type TO-247-4L
	Mount Type Through Hole
	Channel Type Type N
	Pin Count 4
	Minimum Operating Temperature -55°C
	Maximum Collector Emitter Saturation Voltage VceSAT 2V
	Maximum Gate Emitter Voltage VGEO 20 V
	Maximum Operating Temperature 175°C
	Length 22.54mm
	Standards/Approvals RoHS
	Height 5mm
	Automotive Standard No

Datasheet - FGY4L140T120SWD

COO (Country of Origin):: CN

The ON Semiconductor IGBT and Gen7 Diode in a TO247 4-lead package offer optimal performance with low switching and conduction losses, enabling high-efficiency operations. These components are designed for use in various applications such as solar inverters, uninterruptible power supplies (UPS), and energy storage systems (ESS), providing reliable and efficient power management in these demanding environments.

High current capability

Smooth and optimized switching

Low switching loss

RoHS compliant

onsemi FGY4L140T120SWD, Type N-Channel Common Emitter IGBT, 140 A 1200 V, 4-Pin TO-247-4L, Through Hole
