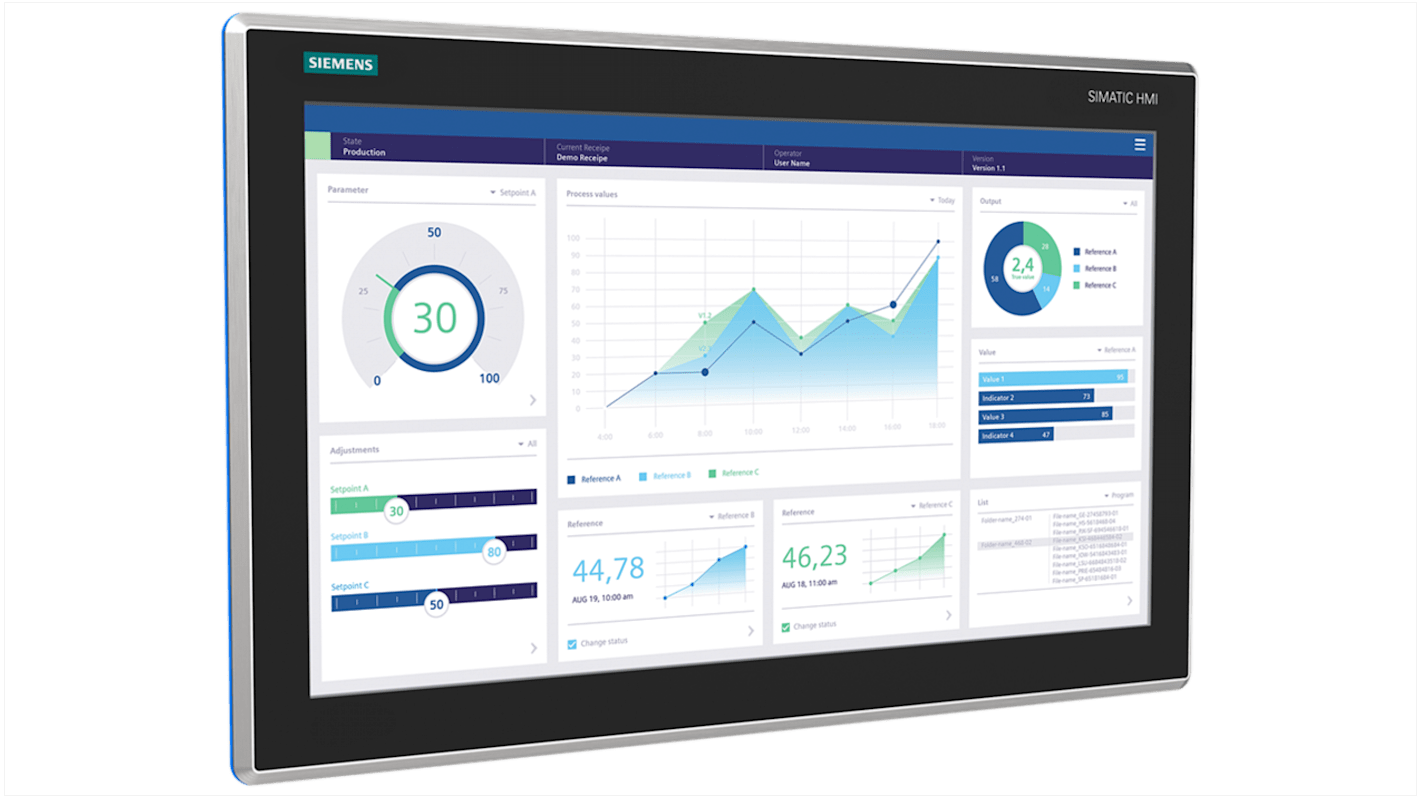

Siemens MTP2200 Unified Comfort Series HMI Panel - 21.5 in, TFT Display, 1920 x 1080 pixel

RS 제품 번호:: 282-3503
제조사 부품 번호:: 6AV2128-3XB40-0AX0
제조업체:: Siemens

Siemens MTP2200 Unified Comfort Series HMI Panel - 21.5 in, TFT Display, 1920 x 1080 pixel

Subtotal (1 unit)*

₩14,436,420.00

제조사가 재고 비축중

2026년 9월 30일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩14,436,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 282-3503
제조사 부품 번호:: 6AV2128-3XB40-0AX0
제조업체:: Siemens

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siemens
	Series	MTP2200 Unified Comfort
	Product Type	HMI Panel
	Display Type	TFT
	Display Resolution	1920 x 1080 pixel
	Number of Ports	2
	Port Type	COM, RS422/485, 2 x SD card, 2 x Ethernet, 4 x USB
	Onboard Memory	12MB
	Minimum Operating Temperature	0°C
	Diagonal Display Size	21.5in
	Backlighting	Yes
	Maximum Operating Temperature	45°C
	Depth	79mm
	Standards/Approvals	EAC, UKCA, CE
	Width	556mm
	IP Rating	IP20, IP69
	Hazardous Area Certification	No

	모두 선택
	브랜드 Siemens
	Series MTP2200 Unified Comfort
	Product Type HMI Panel
	Display Type TFT
	Display Resolution 1920 x 1080 pixel
	Number of Ports 2
	Port Type COM, RS422/485, 2 x SD card, 2 x Ethernet, 4 x USB
	Onboard Memory 12MB
	Minimum Operating Temperature 0°C
	Diagonal Display Size 21.5in
	Backlighting Yes
	Maximum Operating Temperature 45°C
	Depth 79mm
	Standards/Approvals EAC, UKCA, CE
	Width 556mm
	IP Rating IP20, IP69
	Hazardous Area Certification No

COO (Country of Origin):: DE

Siemens 6AV2128 Series HMI Panel, 21.5 inches Diagonal Display size, 1920x1080 Display Resolution - 6AV2128-3XB40-0AX0

This HMI panel provides a high-resolution touchscreen Interface for industrial control and monitoring tasks in manufacturing and automation environments. It integrates multiple communication ports and a sizeable display to present process information clearly while operating within typical factory temperature ranges.

Features & Benefits

• 21.5in TFT display delivering 1920x1080 clarity for detailed visualisation
• IP69 and IP20 protection levels enabling use in wet and controlled zones
• 2x Ethernet and 4x USB ports allowing flexible peripheral and network connections
• RS422/485 and COM ports supporting robust serial device integration
• 12MB onboard memory facilitating local storage of configuration or logs
• Operates between 0–45°C for reliable performance in standard industrial settings

Applications

• Suitable for machine control panels in production lines
• Ideal for SCADA operator stations requiring clear graphical displays
• Used for integrating PLCs and serial instruments via RS422/485
• Can be used in washdown areas where high ingress protection is required
• Suitable for networked HMI installations using dual Ethernet links

How many external Storage Options are available for programme files?

Two SD card slots are provided for removable storage of projects and data.

Which display technology is used and what is its Visual advantage?

A TFT panel is fitted, offering high contrast and resolution for detailed process graphics.

How many ports in total are accessible for device communication?

The unit presents two Ethernet, four USB, two SD card slots Plus serial COM and RS422/485 interfaces.
