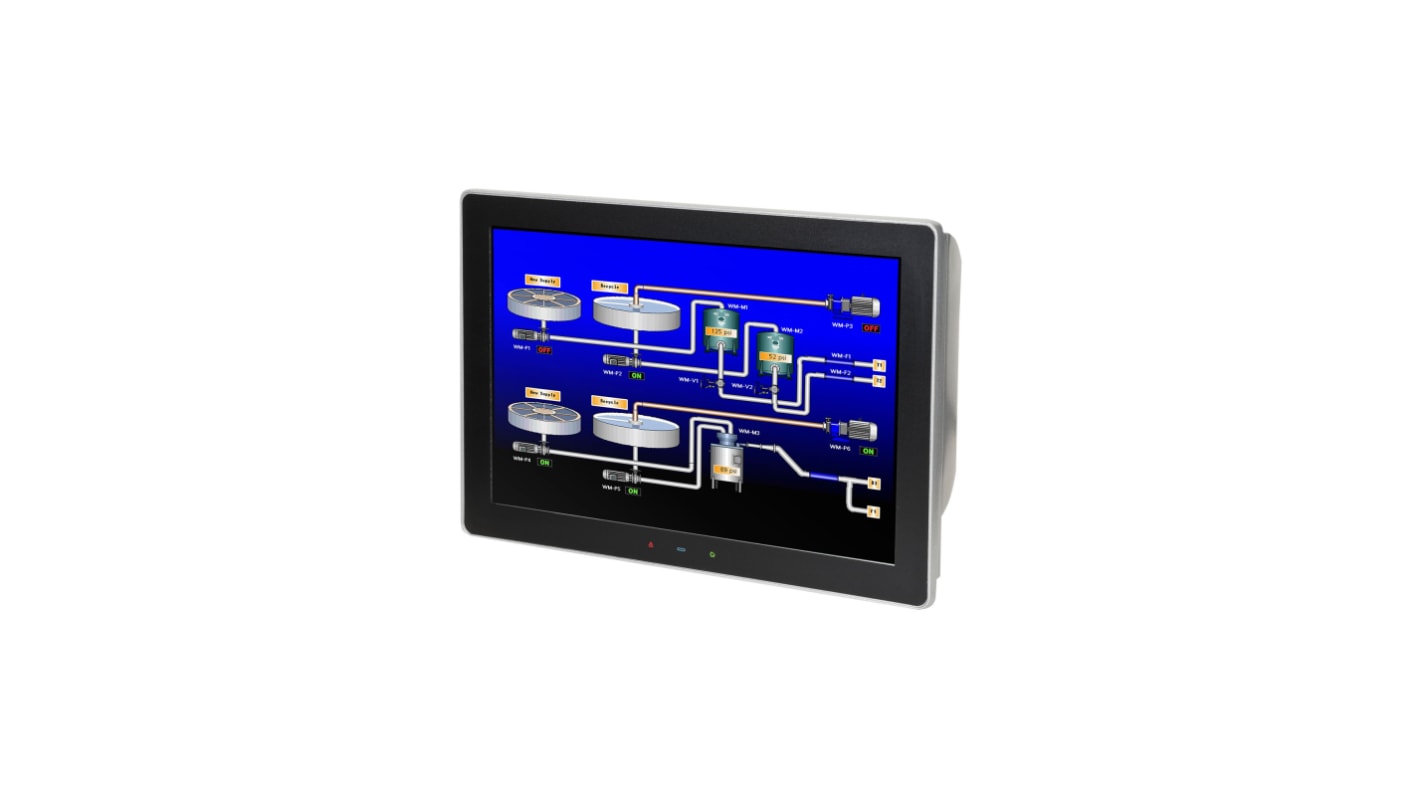

Red Lion HMI Series Touch Screen HMI - 304.8 mm, TFT Display, 1280 x 800 pixel
- RS 제품 번호:
- 233-7987
- Distrelec 제품 번호:
- 303-26-008
- 제조사 부품 번호:
- G12S1100
- 제조업체:
- Red Lion
Subtotal (1 unit)*
₩11,005,060.00
마지막 RS 재고
- 최종적인 1 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 + | ₩11,005,060.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 233-7987
- Distrelec 제품 번호:
- 303-26-008
- 제조사 부품 번호:
- G12S1100
- 제조업체:
- Red Lion
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Red Lion | |
| Product Type | Touch Screen HMI | |
| Series | HMI | |
| Display Type | TFT | |
| Display Resolution | 1280 x 800 pixel | |
| Port Type | Ethernet, RS422, USB, RS232, RS485 | |
| Onboard Memory | 256MB | |
| Minimum Operating Temperature | -20°C | |
| Diagonal Display Size | 304.8mm | |
| Backlighting | Yes | |
| Maximum Operating Temperature | 60°C | |
| Depth | 52.4mm | |
| Length | 307.3mm | |
| Standards/Approvals | IEC 60079-0, UL, IECEx UL 15.0035X, CE, cULus | |
| Width | 208.3mm | |
| IP Rating | IP20, IP66 | |
| Display Colour | Black | |
| Hazardous Area Certification | ATEX | |
| 모두 선택 | ||
|---|---|---|
브랜드 Red Lion | ||
Product Type Touch Screen HMI | ||
Series HMI | ||
Display Type TFT | ||
Display Resolution 1280 x 800 pixel | ||
Port Type Ethernet, RS422, USB, RS232, RS485 | ||
Onboard Memory 256MB | ||
Minimum Operating Temperature -20°C | ||
Diagonal Display Size 304.8mm | ||
Backlighting Yes | ||
Maximum Operating Temperature 60°C | ||
Depth 52.4mm | ||
Length 307.3mm | ||
Standards/Approvals IEC 60079-0, UL, IECEx UL 15.0035X, CE, cULus | ||
Width 208.3mm | ||
IP Rating IP20, IP66 | ||
Display Colour Black | ||
Hazardous Area Certification ATEX | ||
- COO (Country of Origin):
- US
The Red Lion Graphite series of HMI merges two of our most highly successful product platforms into a single, extremely flexible solution. The nexus of the product is the operator interface panel which offers the award winning technology of our G3 HMI including protocol conversion, data logging and remote access. Size of display is 12 inch.
Protocol conversion feature converts numerous protocols simultaneously
Over 300 built-in drivers allows easy data mapping to PLCS, PCS, and SCADA systems
Built-in web server allows remote view or control from any internet connected pc or smart phone
Syncs data logs to FTP servers and Microsoft SQL server
